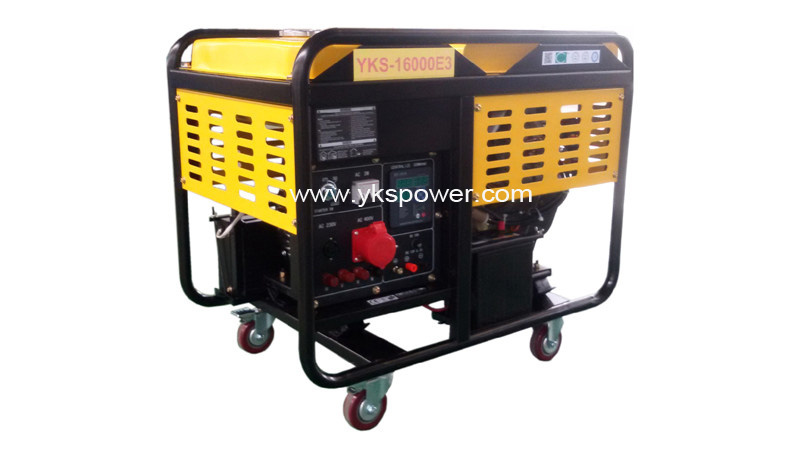

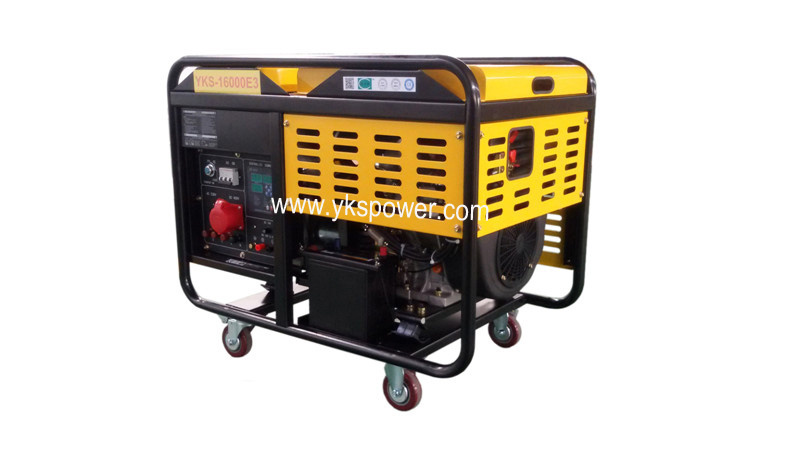

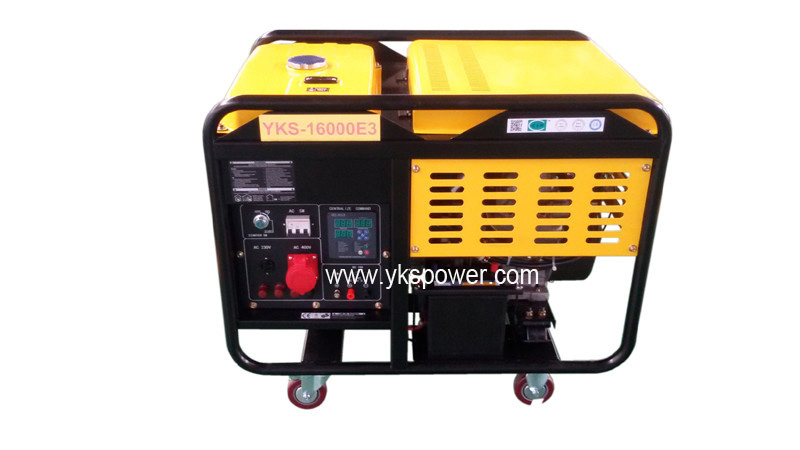

12kw Small Ail-Cooled Open Type Generator with 3 Phase

Name: 12kw Small Ail-Cooled Open Type Generator with 3 Phase
Brand: aboutgenerator.com
SKU: 767202805
Availability: InStock
Rating: 4.6 (70 reviews)

Price:	Negotiableset
Trade Terms:	FOB,CIF
Min Order:	5set
Pay Type:	T/T

Contact Supplier

Jiangsu Youkai Power Equipment Co., Ltd.

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Self-Starting Diesel Generator
Installation Method:	Fixed
Stroke:	Four Stroke
Cooling Method:	Water Cooling
Output Type:	AC Three Phase

Product Description

Packaging & Delivery

Packaging Details:	Plywood case
Delivery Detail:	10 Working days after receiving the deposit

Specifications

1.Air-cooled Yuchai generator
2.Open type generator
3.ce certificate
4.Yuchai OEM factory

Genset model		YKS-16000E (open)		YKS-16000ES (silent)
Genset	Frequency(Hz)	50	60	50	60
	Rated power(Kva)	12	12.5	12	12.5
	Max power(Kva)	12.5	13	12.5	13
	Voltage(V)	220-240		220-240
	Current(A)	56.8	59.1	56.8	59.1
	Sockets	2*32A		2*32A
	Display	LED5		LED5
	Fuel tank capacity(L)	35		35
	Running time(hr)	8		8
	Noise level @7m(dB) (7m)	80-85		72-75
	DC Output(V/A)	12/8.3		12/8.3
	Battery(Ah)	36		36
Engine	Engine type	Two cylinder,Vertical, 4-stroke, air-cooled diesel engine 4
	Engine model	292F		292F
	Starting mode	Electric start		Electric start
	Borestroke(mm)	92*75		92*75
	Displacement(cc)	999		999
	Compression ratio	20:01		20:01
	Rated power/Max.power(kw) /	14/15		14/15
	Fuel consumption(L/hr) ()	≤3.8		≤3.8
	Oil capacity(L)	3		3
	Oil type	CD Grade or SAE 10W-30 15W-40
Alternator	Alternator	100% copper wire self-excited alternator 100%
	Rated power(Kva)	12		12
	Power factor(cosφ)	1		1
	Voltage regulation	AVR		AVR
Standard features	Voltmeter	YES		YES
	AC Output Socket	2		2
	AC Circuit Breaker	YES		YES
	Oil warning Light	YES		YES
	Oil Alert	YES		YES
	Wheel	YES		YES
	Dc circuit breaker	OPTIONAL		OPTIONAL
	Calculagraph	OPTIONAL		OPTIONAL
	Three phase voltage	OPTIONAL		OPTIONAL
	Current meter	OPTIONAL		OPTIONAL
	ATS	OPTIONAL		OPTIONAL
	Remote control	OPTIONAL		OPTIONAL
	Welding	OPTIONAL		OPTIONAL
Dimension	N.W.(kg)	270		270
	G.W.(kg)	275		275
	Package size(mm)	1080700850(0.65CBM)		11507801000(0.89CBM)
	20GP/40GP/40HQ QTY.(Set) 20',40' ,40' ()	55/125/125		45/90/90

Jiangsu YouKai Power Equipment Co., Ltd. is located in Jiangdu hightech development zone, Yangzhou, Jiangsu, China. Our factory provide quality diesel generator sets from 2kw to 2500kw with open type, super silent type, container power station and mobile power station. Power generating system, automatic start system, ATS system, intelligent parallel, remote monitoring and high voltage outputing system, which has several national patents.

YouKai power has obtained authorization certificate of CUMMTNS, Volvo Engine and builts good relationship with MTU, SCANIA, DOOSAN. China Yuchai, Weichai, Shangchai and JiChai engine generator sets are our conventional products. They are equipped with famous alternator brand Stamford, Marathon, Leroysomer, Engga, which guarantees longer working time and stronger power ouput. Besides, YouKai power pay more attention to produce environment friendly products. All the products have passed EPA, SGS, CE, ISO revelant certificates.

We promise: Professional purchase guide; 100% qualified product;

Safe delivery to customers; Wide aftersale service; Long term supply of spare parts.

After decade's effort, YouKai power has 20 local agencies in China, each distributor has perfect technical support and after-sale guarantee. Products have been exported to Southeast Asia, Middle East, Africa, Oceania, South America, Europe and other regions. We are looking forward to a long term cooperation with you. And it will be our honor if you can be Youkai's overseas agent!
