Prod Model: |
GFDC-XZ120 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Output Power: |
120kw |
Weight: |
1280kg |
Rated Speed: |
1500rpm |
Delivery Time: |
20days |
Cooling Method: |
Water Cooling |
Stroke: |
Four Stroke |
Installation Method: |
Fixed |
Type: |
Self-Starting Diesel Generator |
Output Type: |
AC Single Phase |
Product Description

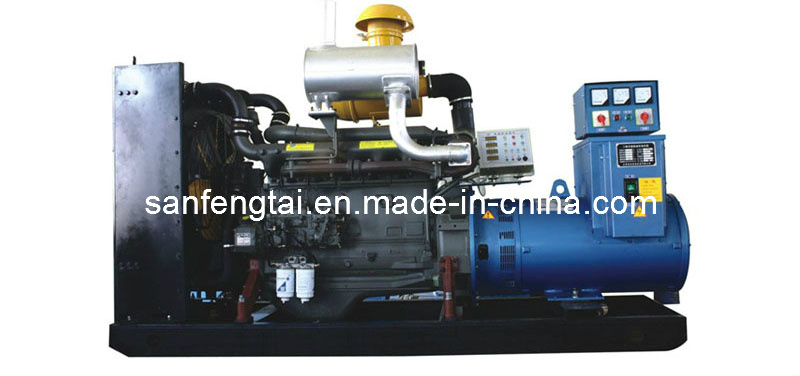

120Kw Deutz Diesel Generator Set
Deutz Diesel gensets have excellent performance, small size, light weight, low fuel consumption, low noise, meet the European II, III emission standards, widely used in luxury buses, Truck, Special vehicles, engineering machinery, oil equipment, power generation equipment, and other fields.
Specifications:
1)diesel generator
2)8-24 hours base fuel tank
3)low fuel consumption
4)Highly Corrosion Resistant Construction
5)low noise
Engine Model:
A)Multi-cylinder in-line engine, 4-stroke, direct injection
B)Electronic governors
C)PT fuel injection pump
D)Electric motor starting system
E)Low discharge and below furl consumption
F)installed conveniently and maintained easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, Miindu design brushless alternators
2. Brushless, 4 poles, rotation magnet
3. IP21-23 enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤ ± 1% THF < 5%, low radio interference
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6.1m<80DBA / 7m<70DBA
Control Panel:
1. Automatic control panel (AMF), LCD display
2. Four protection systems
3. Emergency stop
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
Commercial Conditions:
1. Port of loading: Qingdao port
2. Port of destination: To be informed
3. Delivery time: 15-40 days after down payment
4. Payment terms: T/T 100% down payment or 30% deposit, 70% before delivery out of factory
5. Insurance: 110% of total amount
6. Failure Remedy: Free spare parts due to failures cause by the quality
Warranty:
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
Similar products:
Weichai diesel generator, Doosan generator set, Volvo diesel generator set, Cummins power generator, and soundproof generator, movable generator etc, power range from 10kVA to 2200kVA.
Genset Model |
GFDC-XZ120 |
SET |
Genset model |
GFDC-XZ120 |
Output power |
120KW |
Power factor |
0.8(lagging) |
Output voltage |
400V/230V |
Output current |
216A |
Rrted Freguency |
50hz |
Rated Rotating speed |
1500rpm |
The grade of fuel |
(standard)0#light diesel (normal) |
Dimension |
2500*750*1550(L*W*H mm) |
Genset weight |
1280kg |
Voltage Regulation steady state(%) |
≤±1 |
Voltage fluctuation rate(%) |
≤±0.5 |
Voltage regulation transient state(%) |
+20~-15 |
Voltage stability time(s) |
≤1 |
Reguency regulation steady state(%) |
≤±1 |
Requency fluctuation rate(%) |
≤±0.5 |
Requency regulation transient state (%) |
+10~-7 |
Reguency stability time(s) |
≤3 |
Fuel consumption at 100% load |
≤209g/kw*h |
Nose(LP7m) |
95dB(A) |
ENGINE |
Place of origin/brand |
DEUTZ |
Diesel engine model |
TBD226B-6D5 |
Number of cylinders |
6/L model |
Bore*stroke |
105*120 mm |
Compression ratio |
15.5:1 |
Starting method |
DC24V Electrical starting |
Cooling system |
Closed water circulation cooling |
Oil way |
Direct injection |
Intake way |
Turbocharge |
Overload capacity |
110% |
Rotating speed |
1500rpm |
ALTERNATOR |
Place of origin/brand |
JiangYue |
Alternator model |
W274E |
Rated power |
120Kw |
Rated voltage |
400V/230V |
Insulation class |
H class |
Protection class |
IP22 |
Connecting type |
3phase4wires Y type |
Accommodation type |
AVR |
Output frequency |
50hz |
Output factor |
0.8(lagging) |
|
