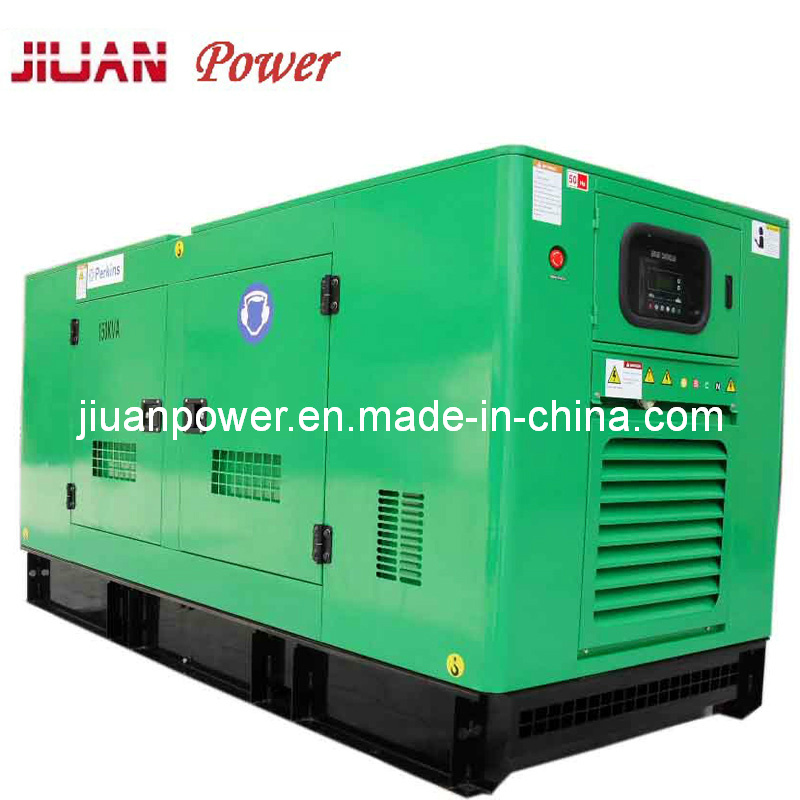

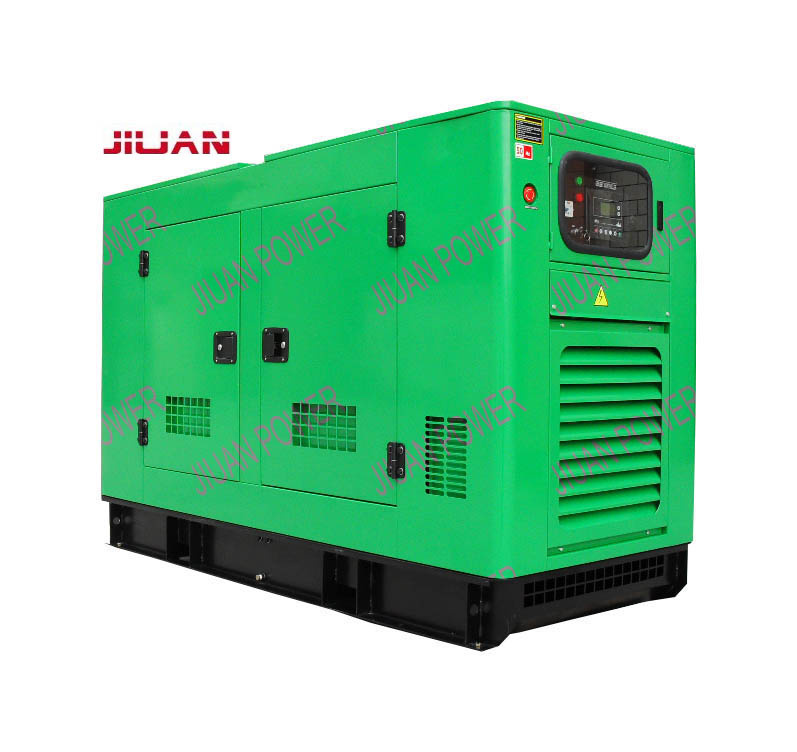

120kw Deutz Diesel Power Generator:
Good Quality
120kw Deutz Generator:
Power Generator
Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Basic Diesel Generator
Output Type:
AC Three Phase
Product Description
JIUAN Diesel Generator Set Advantage: · 50hz@1500rpm or 60HZ@1800rpm all are available · AVR delivers non fluctuating power · Panel type digital control panel · 12 Volt / 24 Volt electric starter ensures easy starting · Low oil pressure shut down system · Low fuel cut out protection · Low water cut out engine protection · Enclosed structure ensures quieter operation · Alternator (Dynamo) excitation mode brushless self excitation · Three-phase output meets differing requirements · Four Cylinder, four stroke, water cooled diesel engine · 8 hours running @ full load on a single tank of fuel · Dual access doors for easy maintenance · Optional automatic or manual transfer switches available · ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option · Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers · Noise Level (65-70dBA @ 7m) · All ratings are at sea level
After-sales Service: 1 year or 1800 running hours subject to the earlier one. 24 hours after-sales contact number:0086 18520604611
* Canopy for Choice 1. Silent type (75- 80 dB(A) at 7 meters) 2. Super Silent type (65-70 dB(A) at 7 meters ) 3. Open type 4. Trailer type (mobile) 5. Container Type 6. Parallel System 120KW Diesel Generator
DEUTZ Engine Generator MODEL
CD-D120KW/150KVA
Generator Powered by Deutz Engine
Continuous Power (50HZ)
120KW/150KVA
Standby Power (50HZ)
132KW/165KVA
Engine Model
TBD226B1-6D5
Engine Power (50HZ)
132KW/165KVA
Speed
1500rpm
Fuel Consumption
198 g/kw.h
Cooling Method
Water - cooled
Starting Method
24V DC electrical start
Alternator Model
Stamford copy 274F
Alternator Power
128KW/160KVA
Voltage
380/220V
Electric Current
218 A
Power Factor
0.8
Phase
3-phases
Brush/Brushless
Brushless
G.W/N.W
2700 KGS
Overall Size
2820x1230x1660 MM
20FT
4 PCS
OPTIONAL
ATS(AUTO TRANFORE SWITCH)
Auto Battery Charger
Base fuel tank (for open type)
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
120KW Diesel Generator
