North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:
Yarmax or OEM
Pack:
Iron Bracket / Veneer Case
Original:
Changzhou Jiangsu Province
Color:
Red/Yellow or Others as Requested
Noise Level:
65dB
Fuel Type:
Diesel
Fuel Tank Capacity:
8 Hours Continue Running
Phase No.:
Three Phases or Single Phase as Requested
Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Speed:
1500rpm/1800rpm
Excitation Mode:
Self Exciter
Product Description

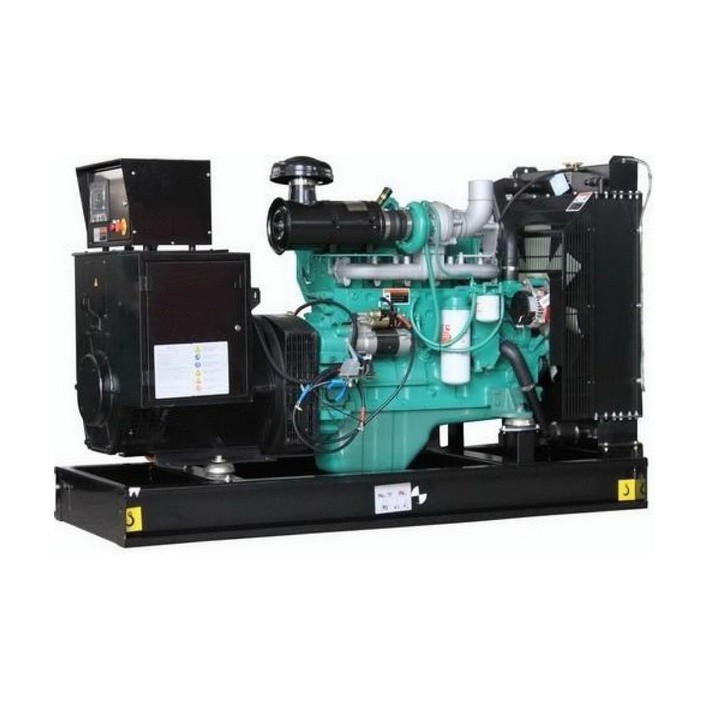

120KW/150kVA Cummins Soundproof Diesel Generator Set (YMC-120)
1. 20KVA~2250KVA Generator / Diesel Generator / Silent Generator 2. Powered by Cummins Engine 3. With Stamford / Leroy Somer / Marathon Alternator 4. With CHINT / ABB MCCB & Electronic Components 5. Electric Start with Battery 6. Base Integrated Fuel Tank 7. ATS, Deepsea / ComAp / Smartgen Controller 8. Comply with ISO8528/GB2820
Cummins series diesel generators power from 20kVA up to 2250kVA, with compacted structure and best configuration.
OEM cummins powered diesel generator sets with its high reliability, low use and maintenance cost win the loyalty of many customers in the field of army, transportation engineering system and mine industries. Established in 1919, headquartered in columbus, indiana, (USA) cummins inc. Serves customers in more than 160 countries and territories through its network of 680 company-owned and independent distributor locations and more than 5, 000 dealer locations. As the largest foreign engine investors of China, cummins possess chongqing cummins engine Co., Ltd (produce m, n, k series engine) and dongfeng cummins engine Co., Ltd (produce b, c, l series engine ) and produce cummins engines with globally uniform quality standards.
Engine
Heavy duty diesel engine Four stroke, water cooled 12V and 24V stater and charge alternator Cooling radiator and fan Maintenance free battery including ract and cable Flexible fuel connection hoses and manual oil sump drain valve Exhaust silencer
Alternator
Brushless, single bearing, flexible disc Insulation class: H Protection class: IP23 Self-exciting and Self-regulation
Soundproof Canopy
All canopy designed with modular principles All metal canopy parts painted by electrostatic polyester power paint Soundproof design ensure that the noise level be controlled in small scope Convenient to lift and move Easy to maintenance and operate
Base Frame
Base frame including position for forklift and crane Integral fuel tank Daily fuel tank continuously supply for 8-24 hours Fuel tank easy to maintain and clean Anti-vibration pads are flexed between engine and alternator.
Control System Control, monitor and protect the Generator Set including:
High water temperature Low oil pressure Over and under speed Over current Under/Over generator voltage Start and stop failure Low and high battery voltage Charge fail Emergency stop
Company
Specification
GenSet Model
YMC-120
Continuous Output
120KW / 150KVA
Engine Brand & Model
Cummins 6CTA8.3-G2
Type
Water-cooled, 4-stroke, Natural Engine
No. of cylinder
6
Bore x Stroke
114x135mm
Engine power
163kw
Compression ratio
17.3: 1
Fuel consumption
≤ 208g/kw. h
Displacement
8.3L
Engine speed
1500rpm
Steady Speed Drop
≤ 1%
Lubricant Capacity
16.4L
Coolant Capacity
13L Engine Only
Starting system
D. C. 24V electric start
Cooling way
Positive Water Cooling Cycle
Alternator Brand & Model
Stamford UCI274F
Frequency
50HZ
Voltage
380/220V
No. of phases
3
Excitation
brushless
Insulation class
H
Power factor
0.8
Protection Grade
IP23
Altitude
≤ 1000m
Voltage Regulation, Steady State
≤ ± 1%
Control Panel - Standard equipped or LCD digital control module
Base Fuel Tank & battery included
Options: ATS

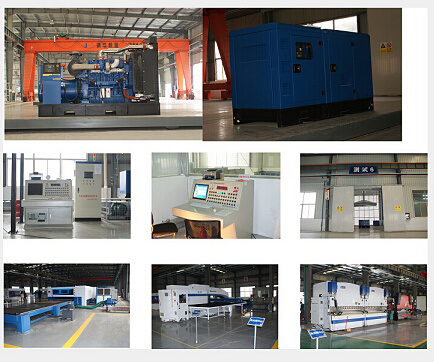

Yarmax Power (Changzhou) Co., Ltd. is one of the leading worldwide suppliers of Air-cooled diesel engines, Gasoline engines, Diesel generators, Gasoline generators, water pumps, Air compressors, High Pressure washers and engine powered construction machines. Our factory is located in Changzhou City, Jiangsu Province, which is easily accessible with a two-hour drive from Shanghai.
As a professional genset manufacturer and facilitator, Yarmax Power keeps improving the quality of products in controlling noise, improving fuel efficiency and lowering emissions for environmental protection. Our company is in compliance with ISO9001: 2000 standards and our products have gained CE approval issued by European Community. We have got the EPA approval from the United States.
To better serve our customers, we provide complete technical support and any other information on our engine and gensets. Additionally, we offer a 12 month or 1000 working-hour warranty. This warranty covers any product deficiency caused by raw materials or any quality problem. The warranty does not cover wearing part problems or damage caused by improper operation or maintenance.
Yarmax Power is also an OEM service provider. If you have any need for engines or generator sets, please don't hesitate to contact us. We would like to establish long-term business relationships with you.
