Prod Model: |
AC11-2000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Load Bank |
Voltage: |
380V,400V,600V,10.5kv, |
Power: |
1MW,2MW,3MW,4MW,8MW.etc |
Frequency: |
50Hz,60Hz |
Pf: |
1 |
Resistive: |
Metal Alloy |
Cooling: |
Air Cooled |
Productive: |
OEM,ODM |
Product Description

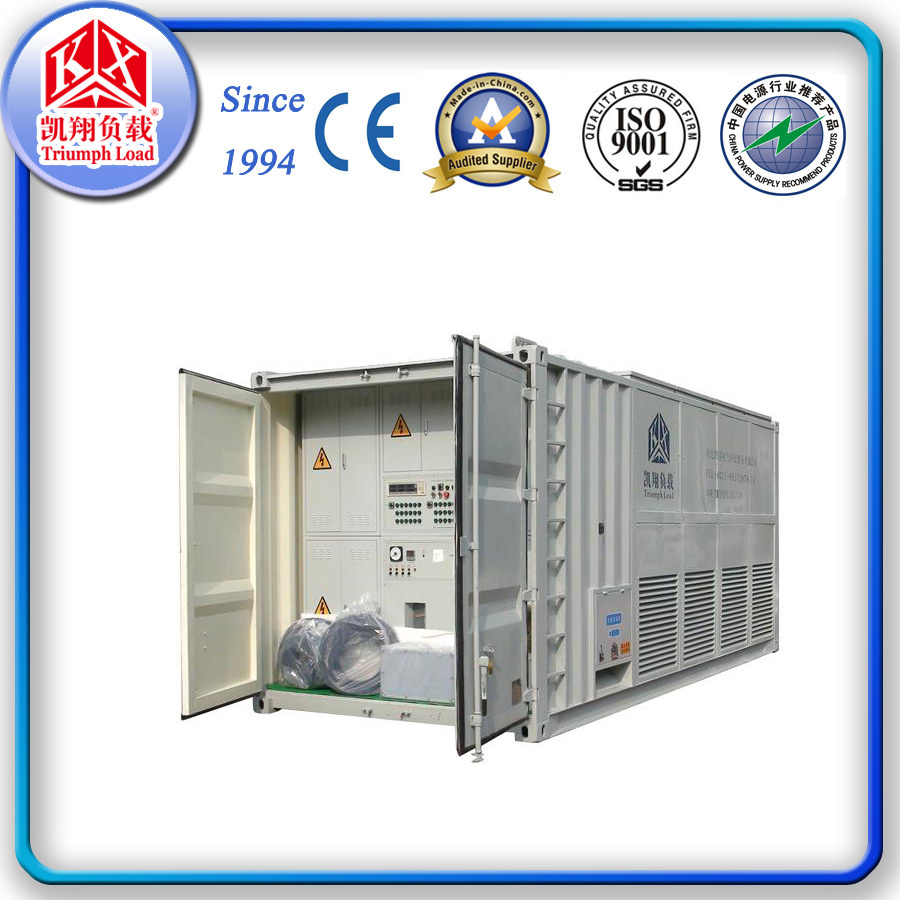

High Voltage Load Bank
Summary
It adopts latest power-consuming module and it is of high power density and pure resistance.
Power input adopts subsection, while load is energy-consuming way. Cooling way is air-cooled.
Technical Condition:
1, Resistive Load Capacity: 100KW
2, Power factor: Cos. Phi =1
3, Voltage: 220V/50Hz
4, Load Steps: 1kWx1+2kWx2+5kWx1+10kWx1+20kWx2+50kWx1, 1kW is the smallest step
5, Power Supply: AC220V/50Hz - single phase
6, Operating Environment: -10~+50 C, in room
7, Display: Multi-function electricity meter display voltage, current, frequecy and power factor, etc.
8, Control mode: Panel
9, Cooling: Air-cooled
10, Dimension: 600mm*950mm*850mm(Length*Width*Height)
11, Weight: About 80kg...
More detail information, please contact us soon!
Voltage | 400V,440V,690V, 6.6Kv,35Kv. etc |
Frequency | 50Hz, 60Hz, 400Hz |
Protection | Overload, Overheat, etc |
