| Prod Model: |
XD-PMG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
Customize |
| Bearing: |
Customize |
| Number Of Blade: |
Multiple-Blade |
| Stress Way Of Blade: |
Resistance |
| Phase: |
Three Phase |
Product Description

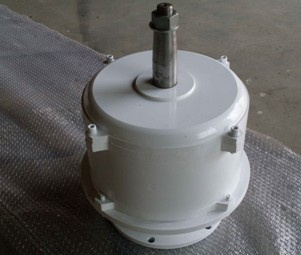

50RPM vertical permanent magent generator for wind turbine
Low speed permanent magnet generator for sale
1. Low RPM
2. Direct drive
3. High efficiency, long life
4. Easy to maintenance
Low speed permanent magnet generator for sale
Rated power:
300W80RPM, 500W80RPM, 1KW50RPM, 1KW100RPM, 2KW50RPM, 3KW50RPM, 5KW50RPM, 5KW100RPM,
10KW50RPM, 15KW125RPM
Rated voltage: 12VAC/24VAC/48VAC/96VAC/120VAC/220VAC/240VAC/360VAC/380VAC
Generator style: Synchronous three phase permanent magnet AC generator
Magnetic steel material: 38SH NdFeB
Housing material: Cast iron / aluminium
Shaft material: 45# steel
Class of insulation: F
Grade of protection: IP54
Remark: We can design and produce the non-standard generatos according to customers's requirements.
| model | XDVC-1KW (100rpm) |
| generator type | synchronous permanent magnet 3 phase AC |
| magnetic steel material | 38SH NdFeB |
| class of insulation | F |
| h ousing material | aluminium |
| shaft material | 45# steel |
| rated power(KW) | 1 |
| rated rotate speed(RPM) | 100 |
| rated voltage(VAC) | 24/48/96/VAC/220/VAC |
| grade of protection | IP54 |
| Weight(KG) | 55 |
| start up torque(N.M) | 5.88 |
| rated torque at rated speed(N.M) | 143 |
| number of poles | 22 |
| model | XDVC-3KW ( 100rpm ) |
| generator type | synchronous permanent magnet 3 phase AC |
| magnetic steel material | 38SH NdFeB |
| class of insulation | F |
| h ousing material | aluminium |
| shaft material | 45# steel |
| rated power(KW) | 3 |
| rated rotate speed(RPM) | 100 |
| rated voltage(VAC) | 48/96/120/220/240/360/380 |
| grade of protection | IP54 |
| weight(KG) | 115 |
| start up torque(N.M) | 8.82 |
| rated torque at rated speed(N.M) | 380 |
| number of poles | 32 |
| model | XDVC-5KW ( 100rpm ) |
| generator type | synchronous permanent magnet 3 phase AC |
| magnetic steel material | 38SH NdFeB |
| class of insulation | F |
| h ousing material | aluminium |
| shaft material | 45# steel |
| rated power(KW) | 5 |
| rated rotate speed(RPM) | 100 |
| rated voltage(VAC) | 48/96/120/220/240/360/380 |
| grade of protection | IP54 |
| weight(KG) | 120 |
| start up torque(N.M) | 14.7 |
| rated torque at rated speed(N.M) | 576 |
| number of poles | 32 |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
