North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine Brand:
Yuchai
Rated Power:Prime/Standby (Kw):
64/70
Rated Power Prime/Standby(kVA):
80/87.5
Rated Current (Prime )(a):
115
Outline Size (Mm):
1400*1000*1500
Weight (Kg):
1300
Diesel Engine Type:
Yc6b100-D20
Cylinder Q'ty:
6
Bore*Stroke (Mm):
108*125
Displacement (L):
6.87
Stroke:
Four Stroke
Type:
Basic Diesel Generator
Cooling Method:
Water Cooling
Installation Method:
Fixed
Output Type:
AC Three Phase
Speed:
1500round/Pmin
Product Description

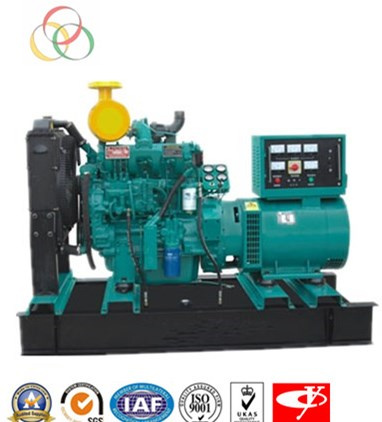

100kw-400kw Yuchai Diesel Generator (YC6B100-D20)
Manufacture
Guangdong Salpower Equipment CO,.LTD
Genset Model
SALY-70
Prime Power (50Hz/60Hz) 64KW/80KVA StandbyPower (50Hz/60Hz)70KW/87.5KVA
Size and Weight
Open Type Overall Size:
1400mm*1000mm*1500mm
Weight:
1300kg
Standard Configuration
Engine( YUCHAI (YC6B100-D20)
Radiator 50OC max, fans are driven by belt, with safety guard
24V charge alternator
Alternator: single bearing alternator IP23, insulation class H/H
Dry type air filter, fuel filter, oil filter
Main line circuit breaker
Standard control panel
Two12V batteries, rack and cable
Muffler and Bellows and other accessories
User manual product certification
Technical Parameters
Gen-set
Steady voltage adjustment rate (%)
≤±1
Voltage fluctuation rate (%)
≤±0.5
Transient voltage adjustment rate (%)
+20~-15
Voltage stability time (s)
≤1
Steady frequency adjustment time (%)
≤±1
Frequency fluctuation rate (%)
≤±0.5
Transient frequency adjustment rate(%)
+10~-7
Frequency stability time (s)
≤3
Waveform distortion rate (%)
≤5
Altitude (m)
≤1000
Relative air humidity (%)
≤90
Engine
Brand
YUCHAI
Origin
Guangxi,China
Model
YC6B100-D20
Primary\Standby power (KVA)
80/87.5
Type
4Stroke,In-LineType, 6 Cylinder
Start model
24VDC electric start
Bore X Stroke (mm)
108x125
Type of Governor
Electric(E)
Compression Ratio
17.5
Displacement (L)
6.87
Fuel consumption@100% load
205g/kw. h
Cooling system
Cooling style
Closed circulating water cooling
Cooling system capacity (L)
9.9
AC Alternator 1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, Engga, 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤ ± 1% 6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts 7. Wide range of flange adaptors and single bearing disc coupling 8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528 9. Moisture proof, sand-proof, dustproof, salt-proof andvibration-proof Control System * Standard matching brands:Smartgen,Deepsea and ComAp * LED/Graphics/meters indicate unit running parameters * High water temperature, low oil pressure, low speed, overspeed and others alarm and protected * Automatically start switching when the main power service fails(optional) * Multi-gensets with automatic parallel connection control module(optional) * Functions of remote control interface, remote control, remote test and remote signal(optional). Product description: Genset with ISO9001/ISO14001,with YUCHAI engine YC6B100-D20 equipped with Alternator Stanford/ENGGA/Marathon, the control panel is /Deepsea/ Smartgen /ComAp. The frequency is 50HZ, the rated speed is 1500rpm/min or 60HZ/1800rpm/min, the insulation class is IP23/H, self-exciting, brushless and the altitude is about 1000m, three-phase four wire. Open size/ Super silent DG set, the noise level never exceed 70db at a distance of 7m.
