| Prod Model: |
6BTAA5.9-G2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Range: |
10-1000kw |
| Brand Name: |
Cummins |
| Rated Current: |
400/230V |
| Speed: |
1500/1800rpm |
| Frequency: |
50/60Hz |
| Alternator: |
Stamford, Simens, Marathon, Farady |
| Warranty: |
1 Year or 1500 Running Hours |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Micro-Computer Control Automatic Diesel Generator |
| Output Type: |
AC Three Phase |
Product Description
One of Biggest Generator OEM Manufacturer

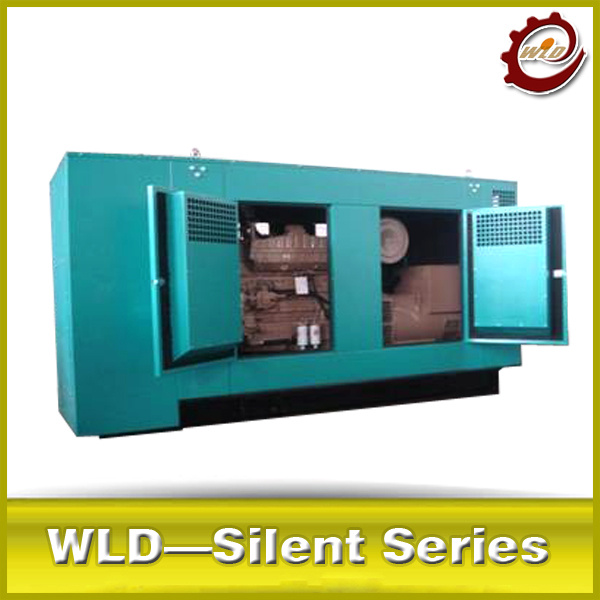

WLD- Soundproof Series
Power Range: 10-1000KW
* Using the latest developed sound-absorbing material
* Reasonable structure to achieve soundproof effects
* Ventilation system smooth, genset will not high temperature
* The noise can be reduced to 70-80dB (7 meter)
* General specifications of soundproof canopy:
* Modular design
* Anti-corrosion powder coated
* Lockable doors with key
* Protective mesh for rotating parts
* Exterior emergency stop push button
*Thermally insulated engine exhaust system
*Fuel gauge or lube drain valve is optional
*Normal or super soundproof canopy is optional
** Fuel tank built-in with level gaugeBase frame fuel tank or profile fuel tank is optional
*The muffler's fixed position depend on the output power of gen-set
* Good ventilation system and anti-heat radiation struction
* Effective anti-vibration devices to ensure the geneartor set run steadily
* Super silent materials inside to ensure the noise lower than 68 dB 7 meters away
* Emergency stop button mounted outside
|
100kw/125kva Cummins open frame diesel silent generator Specification : |
|
Genset Modle |
DS200 |
|
Dimension(mm) |
2150*850*1500 |
|
Weight(kg) |
1485 |
|
Prime Power(KW) |
120 |
|
Rated current (A) |
360 |
|
Powerfactor(CosPhi) |
0.8 |
|
Altitude |
≤1000m |
|
Base Fuel Tank |
Eight hours(Standard) |
|
Engine Features: |
|
Engine model |
6BTAA5.9-G2 |
|
Type of Governor |
Electronic governor |
|
Type |
6 cyclinder in line |
|
Bore*Stroke(mm) |
102*150 |
|
Compression ratio" |
17:1 |
|
Voltageregulation |
±0.5% |
|
fuel consumption rate(g/kw.h) |
≤210g/kw.h |
|
Alternator Features: |
|
brand |
Stamford, Simens, Marathon, Farady at option |
|
Voltage control |
AVR |
|
Numberofphase |
3 |
|
Overspeed |
2250RPM |
|
Excitertype |
AREP |
|
Insulation class |
H |
|
protection class |
IP22/IP23 |
|
Totalharmonics (TGH/THC) |
< 3.5 % |
|
Waveform NEMA = TIF |
<50 |
|
Waveform I.E.C. = THF |
<2% |
|
Bearing |
single |
|
Coupling |
Direct |
