North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time:
20 Days
Automatic Grade:
Automatic
Certification:
SGS
Product Description

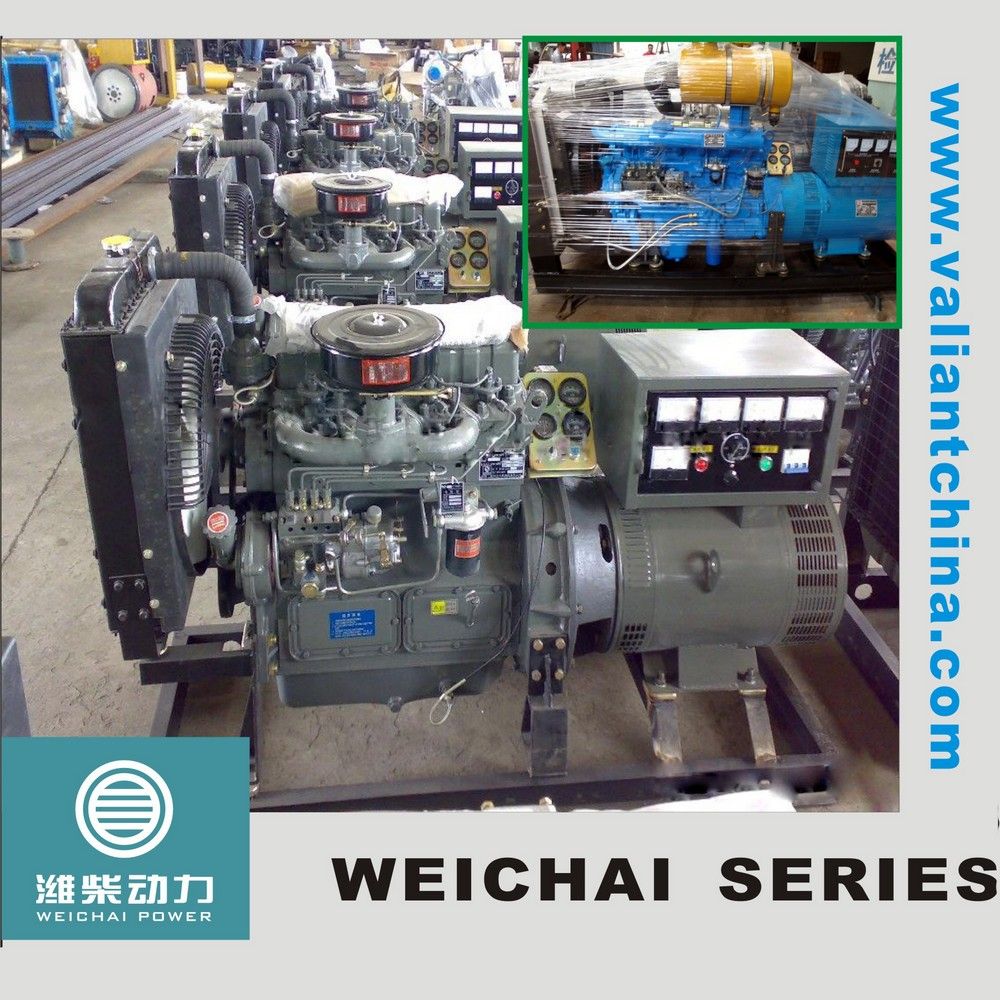

1. Open-shelf electric generator;
2. Chinese weichai engine;
3. Rated Power: 80KW/100kVA;
4. ISO9001: 2000 Certificate.
Gensets Model
VW100E
SET
Rated power(kW/kVA)
80/100
Max.power(kW/kVA)
88/110
Frequency(Hz)
50
Noice level for silent type (Db)
75
ENGINE
Engine
4 Stroke, water cooled
Model type
R6105ZLD-1
12 hours rated power(kw)
107
Cylinders
4
Bore×stroke(mm)
105x125
Intake Method
for Turbo charge
Displacement(L)
4.33
Fuel consumption(g/kw.h)
234
Cooling starting method
water cooled
Engine manufacturer
WEICHAI
ALTERNATOR
Model
224E
Alternator manufacturer
Wuxi Dingol power co,.ltd.
Rated power(kW/kVA)
50/62.5
Rated currency(A)
90
Rated voltage(V)
230/400,240/415 or other
Power factor(coso)
0.8(Lagging)
Phase / Rotary speed
3-phase, 1500rpm
Excitation
Self- exciting,
Voltage regulation
AVR ,Automatic
Net weight(Silent type)(kg)
1750
size(silent type)L×W×H(mm)
3000×1050×1700
Quzhou Valiant Machinery Co., Ltd, an enterprise which is specialized in manufacturing and marketing solar illumination, solar and diesel generator set, possesses a certain scale of development, design and production, and owns a professional and capable technical team as well as perfect after-sale service system.
Valiant has the purpose of "innovation, brand power" in product design and development. Through the practice of continuous improvement, we have developed solar lighting, solar power products and other environment-friendly products.
Our company has independent import and export rights. Our products have been exported to Asia (Vietnam, Myanmar, Pakistan, Iraq and Lebanon), Africa (Nigeria, Kenya, Liberia and South Africa), Oceania (Australia and New Zealand), Latin America (Venezuela and Nicaragua) and Europe (Italy and Norway). With worldwide trust and praise, we have formed stable cooperative relationships with a lot of customers.
With unique management mode, distinctive corporate culture, Valiant has won good social and economic benefits. Our main products include closed (mobile) solar lighting, open-frame (mobile) solar lighting, large water-cooled generator sets, such as Cummins units, Revo (Perkins) units and Volvo units, air-cooled diesel engines 2KW-5KW and air-cooled gasoline units 1KW-7KW. In addition, our factory also provides customized models, such as (ultra) quiet units, mobile power station units and others.
Valiant, from product design, development and marketing to after-sales service, really forms the one-stop service system. We are dedicated to providing customers with high quality services.
