Rated Power:
1000W
Maximum Output Power:
1500W
Starting Wind Speed:
1.5m/S
Rated Wind Speed:
11m/S
Max Wind Speed:
50m/S
Rotating Diameter:
1.8m
Blade Length:
2.8m
Rated Rotating Speed:
240rpm
Generator Weight:
15kg
Charging Voltage:
24/48V
Rotating Shaft:
Vertical
Number Of Blade:
Three Blade
Stress Way Of Blade:
Resistance
Product Description

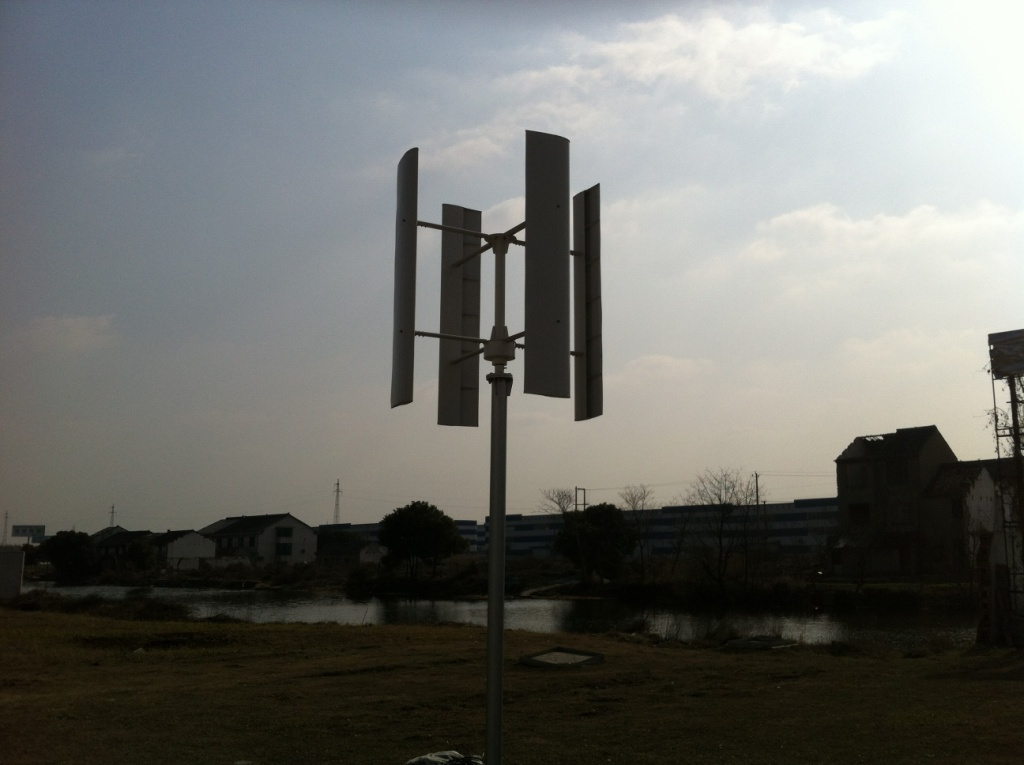

1000W Vertical Axis Wind Generator？
Configuration:
？ ？ 1. Generator(1PC)
？ ？ 2. Built-in controller(1PC)
？ ？ 3. Blades(3PCS)
？ ？ 4. Connecting piece(1PC)
Performance curve:
Advantages:
？
？ ？ 1. Make full use of wind power on all wind directions.
？ ？ 2. Low start-up wind speed but with high power-generating efficiency.
？ ？ 3. Low noise.
？ ？ 4. Resistant to strong wind, such as typhoon, hurricane.？
？
Application area:？ ？？
？
？ ？ Street lighting system
？ ？ Household power supply
？ ？ Communication base station power supply
？ ？ E-monitoring power supply
？ ？ Farming power supply？
？ ？ Maritime power supply
？ ？ Etc.
BLADE
Material
Aluminum
Blade quantity
3 pcs
Rotating diameter
1.8 m
Length
2.8 m
Start up wind speed
1.5 m/s
Rated wind speed
11 m/s
Rated rotating speed
240 rpm
GENERATOR
Weight
15 kg
Size
Φ350 * 57mm
CONTROLLER
Apparent power
1KW
Rated input voltage
24/48V DC
Efficiency
≥95%
Breaker
DC input >= 23A
Environment temperature
-10°C~+45°C
Temp compensation
YES
Battery reversal protection
YES
Load short circuit protection
YES
shell
Aluminum
Wind generator protection
Manual/automatic
Accident-oriented security
YES
Battery offline protection
YES
Cooling
Force air cooling
WARRANTY PERIOD
Blade
2 years
Wind turbine
2 years
Controller
1 year
