| Price: | US $ 182120/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | LN1000GF |
|---|---|
| Markets: | Southeast Asia,Africa,Mid East,Eastern Asia |
| Rated Power: | 1000kw |
| Standby Power: | 800kw |
| Prime Capacity: | 800kVA |
| Standby Capacity: | 1000kVA |
| Rated Voltage: | 400/230V |
| Frequency: | 50/60Hz |
| Brand Name: | Lvneng |
| Model Number: | Ln-1000gf |
| Type: | Self-Starting Diesel Generator |
| Installation Method: | Fixed |
| Stroke: | Four Stroke |
| Cooling Method: | Water Cooling |
| Output Type: | AC Three Phase |
Cummins diesel generator certificates and Service: |
| 1.pre-sale service: We will send our engineer to prospect the site of power station free to charge. According to the situation of site we can supply you many drawings which can meet the requirement of design and construction,like power station floor plan, engineering flow sheet of circle cooling system,genset installation,genset foundation, electrical connection and some other techincal support etc. |
| 2.Sale service: we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.We will debug the generator set till it can generate power successfully.We will also supply a technical training to the operators. You also can send your staff to our company.We can train you till you can operate the generator set and during this time we can offer you board and lodging free of Charge. |
| 3.After-sale service: (1)in our company, different people is in charge of different area,we will response periodically and support you technical service free of charge,include equipment debugging, fault eliminating,technical advice,maintenance assistant,etc. (2)For the quality problem, we will service for you free of charge during the guarantee period. (3)One year guarantee period and lifetime service. (4)Insisting on principle of "solving problems first,trying to recover the generator set as soon as possible and then analysis the reason",we solve quality problem in time when genset doesn't work,We insure to help our clients to gain the biggest economic profit. |

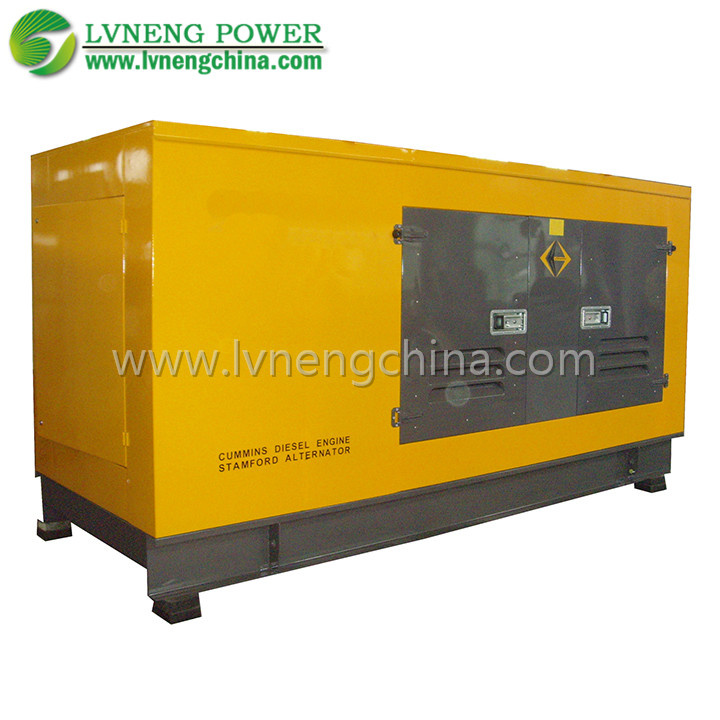

| Technical parameters of 1000kw Silent Cummins Diesel Generator : | ||
| DIESEL GENERATOR SETS DATA | ||
| Brand / Model: | LN-1000GF / KTA50-G3 | LN-1000GF / KTA50-G8 |
| Prime Power/Standby Power | 1000/1100KW | 1100/1300KW |
| Rated Voltage | 400V/230V | 400V/230V |
| Rates Frequency | 50HZ | 50HZ |
| The Regulating Rate of Instantaneous Frequency | ≤ ±5% | ≤ ±5% |
| Rated Speed | 1500r/min | 1500r/min |
| Power Factor | 0.8(lagging) | 0.8(lagging) |
| The Regulating Rate of Steady Voltage | ≤±1% | ≤±1% |
| Dimension (L×W×H) (mm) | 4950*2080*2630 | 5000*2000*2650 |
| Genset weight (kg) | 9000kg±100kg | 10000kg±100kg |
| ENGINE DATA | ||
| TypeModel | KTA50-G3 | KTA50-G8 |
| Brand / Model: | CCEC Chongqing Cummins Engine Co., Ltd Cummins, | CCEC Chongqing Cummins Engine Co., Ltd Cummins, |
| Prime Power/Standby Power | 1097/1227KW | 1200/1429KW |
| Cylinder Arrangement | 16 Cylinders in V | 16 Cylinders in V |
| Bore/Stroke: | 159/159(mm) | 159/159(mm) |
| Engine Total Emission(Liter) | 50.3 | 50.3 |
| Starting System | DC 24V Electrical starting,and with the Silicon rectifying charging generator | DC 24V Electrical starting,and with the Silicon rectifying charging generator |
| Fuel System | PT Fuel Pump | PT Fuel Pump |
| Intake System | Water-air Intercooler | Water-air Intercooler |
| Coolant Capacity(L) | 161(Engine Only) | 161(Engine Only) |
| Cooling system | Satisfaction environmental temperature 50ºC,radiator tank,belt driver mechanism cooling fan ,with fan guard | Satisfaction environmental temperature 50ºC,radiator tank,belt driver mechanism cooling fan ,with fan guard |
| Compression Ratio | 13.9:1 | 13.9:1 |
| Engine Type | 4 Stroke,Turbo Charging | 4 Stroke,Turbo Charging |
| fuel mass(L/S) | 1643 | 1655 |
| 100% Immobilization Fuel Consumption(g/kwh) | 197 | 197 |
| Governing system | High precision electric speed control system | High precision electric speed control system |
| oil consumption (g/kwh) | ≤4g/kwh | ≤4g/kwh |
| Engine oil capacity(L) | 177 | 177 |
| Smoke Exhausting Quantity (L/S) | 4529 | 4350 |
| GENERATOR DATA | ||
| Type | EG400-1000N | EG400-1200N |
| Prime Power/Standby Power(KW) | 1000/1100 | 1100/1300 |
| Prime capacity/Standby capacity (KVA) | 1250/1375 | 1375/1500 |
| Phase/Connection Mode | AC 3-Phase, 4 wire/Y-connection phase winding | AC 3-Phase, 4 wire/Y-connection phase winding |
| Power Factor | 0.8(lagging) | 0.8(lagging) |
| Exciter Type | Brushless, Self-exciting | Brushless, Self-exciting |
| Isolation/Protection class | H/IP23 | H/IP23 |
| Standard configuration of genset as follows: | ||
| AC synchronous generator; | ||
| Air break switch for the end of output voltage, | ||
| Standard configuration control screen, | ||
| Base of steel for genset( Containing rubber damping pad for genset) | ||
| Starting storage battery and theconnection cable for battery starting | ||
| Auxiliary information:Technical document of original factory for gas engine and generator, specification for genset | ||
| Self-chosen fitting(Quotation Not Containing ) | ||
| double power switching switch, starting battery ,generator brush, rectifier group for generator,engine oil, rubber damping pad for genset,line card, type of rain protection sets(bin), genset control panel with self-protection and self-starting,sound attenuated enclosure,automatic load conversion screen,station of mobil trailer | ||
| Warranty | ||
| Since Gen-set reached the agreed destination,its main parts will be guaranteed within 12 months or 1000 hours(subject to the earlier mature term).We take charge of all troubles caused by Gen-set's fault and repair according to the regulation stipulated by original plants.Factors not accordance with the regulation of original plants such as fragile parts,daily consumed components,wrong operating,lack of maintenance are not included in the quality guarantee. | ||
| Installation and Commissioning | ||
| 1:Installation & Adjusting Instruction Book will be given with the gen-set. | ||
| 2:If the engineers needed: Direction of two or three engineers by suppiler.The airticket of return and board fee by buyers take on,and $500 for each person per day.And we need two or three translater person for each engineer,and the fee take charge of buyers.The setting of coach around 10 days.The debugging fee must be prepaid to our A/C before the debugging,thanks! | ||
Color | your choice |
| Certificates | ISO 9001:2008 |
| Warranty | 1 year or 1000 running hours |
| Type | Open |
| Control System | Automatic alarm system |
