North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine:
12V190 Diesel Engine
Rated Frequency:
50Hz/60Hz
Phase:
3phase4wire
Type:
Basic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Excitation Mode:
Burshless
Product Description

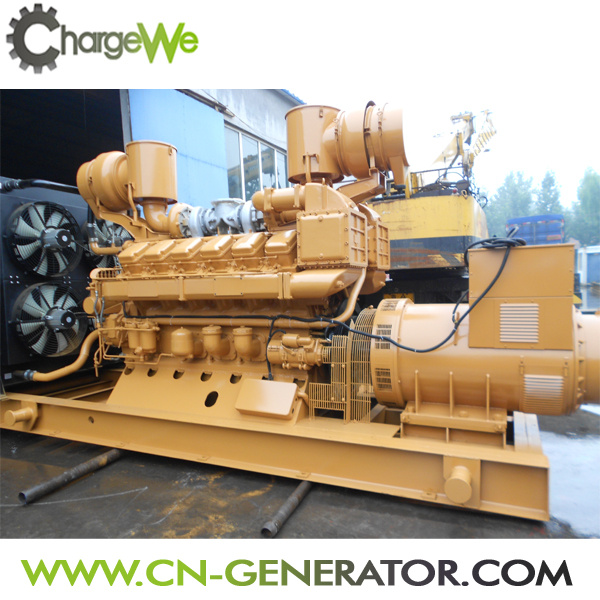

1000KW DIESEL GENSET 1.low fuel consumption 2.Strong generator set 3.CE/ISO approved TECHNICAL PARAMETER OF GENSET
Genset mode
CW-1000GF
Engine No.
G12V190ZL1
Rated power
1000kw
Continuous power
800kw
Rated voltage
400v/230v
Phase
3phase4wire
Rated frequency
50Hz
Rated rotation
1500r/min
Rated power factor
0.8
Rated current
1800A
Cylinder number
12-V
Cylinder diameter
190mm
Stroke
210mm
Compression ratio
14:1
Oil consumption (Full load)
≤209.4g
Lubricant oil consumption (g/kw.h)
≤1.6g
Starting mode
24V electric motor
Control mode
Long-distance control /manual control
Intake mode
Direct injection ,turbine charger
Lubricating mode
Pressure and splashing lubricating
Discharge temperature (before turbine)
≤600ºC
Temperature of Outlet water
≤85ºC
Oil temperature (in the oil pan)
≤90ºC
Oil pressure of Man oil Gellery
392-784kpa
Displacement
71.45L
Genset size
6150*1820*2700mm
Weight
12500kg

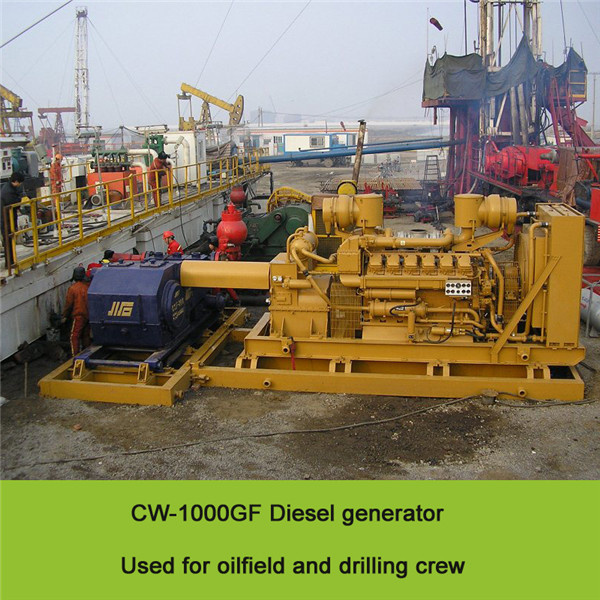

SUCCESSFUL CASE OF 1MW DIESEL GENSET CE/ISO
Shandong Chaiwei Power Equipment Co., Ltd is a comprehensive high-tech enterprises in China with more than 15 years experiences, focusing on new type of environmental protection generators' development production and sale. We have our own brand "CHARGEWE" generator set, including diesel generator set, biogas generator set, nature gas generator set, biomass generator set, coal gas generator set etc. From 20kw to 1000kw with CE & ISO9001: 2008 certificate, Besides we also offer the diesel engine and spare parts for gas/diesel generator set. Our products have been exported to Middle East, South America, Southeast Asia, Russia, Eastern Europe and have got a high reputation on the domestic and overseas market.
About the products, we have self-developed team to design and improve the generator sets to meet different customers` need. So the OEM and ODM are available. We have completed quality inspection system to make sure each product that customer get is perfect, and the professional after-sale team to guarantee your generator set be correctly installed and running normally. CHARGEWE will bring best products and service with most reasonable price for you. From the foundation of our company, we committed to leading as pioneer of the generator industry and contributing ourselves for China's electricity industry. We believe CHARGEWE will be your best partner in generator area.
TECHNICAL PARAMETER OF GENSET
CE/ISO
