Gas Source:
Gas
Product Description
1. IG-CU automatic control module
2. Remote electronic or manual control
3. ISO9001, CE

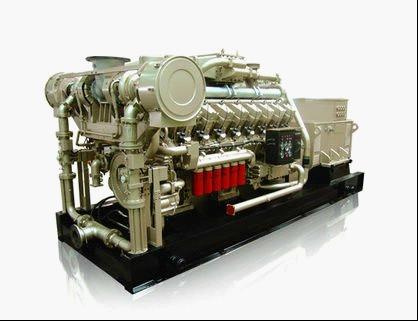

Model of generating sets
1000GF-NK
Model of engine
H16V190ZLZ-2
Rated power KW
1000
Continuous power (KW)
1000
Rated speed (r/min)
1000
Rated voltage (V)
400/230
Rated frequency (Hz)
50
Rated power factor
0.8
Supply method
3 phases 4 lines
Excitation method
brushless
Starting method
24V DC starter 24V
Cooling method
Opened water cooled
Speed modulate method
Electronic control
Net weight (kg)
21000kg
Overall dimension L×B×H(mm)
5998×2516×2540mm
(Only for your reference)
Control panel
GPL1000A
Control method
Remote electronic control or manual control
Monitor and control
In-place communication interface or communication interface for remote meter-reading system
Synchronization control
IG-CU automatic control module
Starting method
Start in direct-current twinsat motor
Cooling system
Full-open water cooling system
Overhaul period
35000 hours
Main technical data of engine
Model of engine
H16V190ZLZ-2
Total displacement
97. 53L
Specific heat consumption
≤9500KJ/KW.h
Specific oil consumption
≤1.0g/KW.h
Number and layout of cylinders
16 cylinders , 60° V type
Type
Four stroke, water cooled, turbocharged and after cooled, direct injection
Bore
190mm
Stroke
215mm
Compression ratio
10:1
Direction of rotation (facing to end)
Counter-Clockwise
Lubricating method
Pressure and splash lubrication
Admission pressure of the biogas
7-9 kPa
Biogas filter
Equipped
Air filter
Equipped
Oil brand
Not less than Kunlun KCN7810 degree
Oil filter
Equipped ( centrifugation & paper fine filter system)
Exhaust temperature
≤680°C( before turbine )
Mode of speed regulation
Electronic speed control
Steady state speed governing rate
0-5%adjustable
Air-fuel ratio control mode
EGS automatic control A/F
Spark control system
IC500 digital
Cooling method
Forced water cooling
Frost-protection
Changing anti-freezing liquid according to relevant condition in winter
Noise control
<110db
Muffle style
Extinction exhaust muffler
Flame protection
Equipped( intake-tube ,crankcase)
Protection of the cooling water high temperature
Equipped (90°C alarm )
Protection of the lubricating oil high temperature
Equipped (95°C alarm )
Protection of the lubricating oil low pressure
Equipped ≤245kPa alarm and machine halt
Over speed protection
Equipped ≥112% alarm and machine halt
Engine data acquisition
Equipped ,withRS485 communication interface
Crankshaft rotating direction
Anticlockwise
Jinan Guohua Green Power Equipment Co., Ltd. was established in 2010 and is a professional manufacturer engaged in the research, development, production, sale and service of gas generators and diesel generators with different power ranges. We are located in the beautiful city of spring - Jinan, Shandong Province, China, and have convenient transportation access.
Taking combustible gas as the fuel for engine can solve the electricity and power problems in the area with rich combustible gas, and also reduce the pollution of directly venting combustible gas into atmosphere. To meet the market requirement, we develop several series of gas engines and generating sets based on self experience, professional qualification as well as absorbing world advanced technology and sophisticated experience. The gas engines include series 190 with 4 cylinders, 6 cylinders, 8 cylinders and 12 cylinders, and series 135 with 4 cylinders, 6 cylinders and 12 cylinders. The engines can be divided into outer mixing, mechanical inner mixing, electronic inner mixing, electronic lean-burnt, etc. Engine power range is from 8kw to 1500kw. The fuel gas includes natural gas, coke oven gas, biogas, coal mine gas, refinery gas and so on, which can meet the utilizing requirements of different areas and different gas compositions. Now our products are widely used as generating sets, compressor sets and other power take-off sets in the areas with rich fuel gas, for example oil fields.
Dedicated to strict quality control and thoughtful customer services, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment, including ABB robot assembly lines.
Our main products are natural gas generators, biogas generators, gas generators and diesel generators, with such brands as JiChai, Volvo and Cummins. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Western Europe, South America, Southeast Asia, Africa, etc. We also welcome OEM and ODM orders.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Jinan Guohua Green Power Equipment Co., Ltd a subsidiary of JDEC(Jinan Diesel Engine Co., Ltd. ). Jinan Diesel Engine Co., Ltd(JDEC) is the only internal-combustion engine manufacturing enterprise belonging to China National Petroleum Corporation(CNPC). It is also the main manufacture of off-highway medium&large power engine in China. At present, it covers area 600, 000square meter and has more than 2000 employees. The total asset is more than 800 million. In 1995, JDEC got the CCS(China Classification Society) ISO 9001 Quality System Approval. In 1996, it was listed in Shenzhen Stock Exchange as Shiyoujichai.
The main products named Jichai include diesel engines, diesel gensets, gas engine and gas gensets. These are widely used for oil field, railway, metallurgy, petrifaction, navy vessels, normal power supply and spare power, etc. They are not only sold well in 30 domestic provinces and regions but exported to more than 30 countries, Indonesia, Thailand, Kampuchea, Vietnam, Bangal, Pakistan, Lazakstan, Iran, Tunisia, Sudan, etc.
JDEC owns international advanced machining center, products testing center, physical&chemical test center and measuring center.
In 2005, JDEC cooperated with AVL of Austria and manufactured the high-speed medium 140 diesel engines, high-speed large 190 diesel engines and medium-speed 260 diesel engines coexisted with a power range from 30KW to 6300KW.
