Product Description

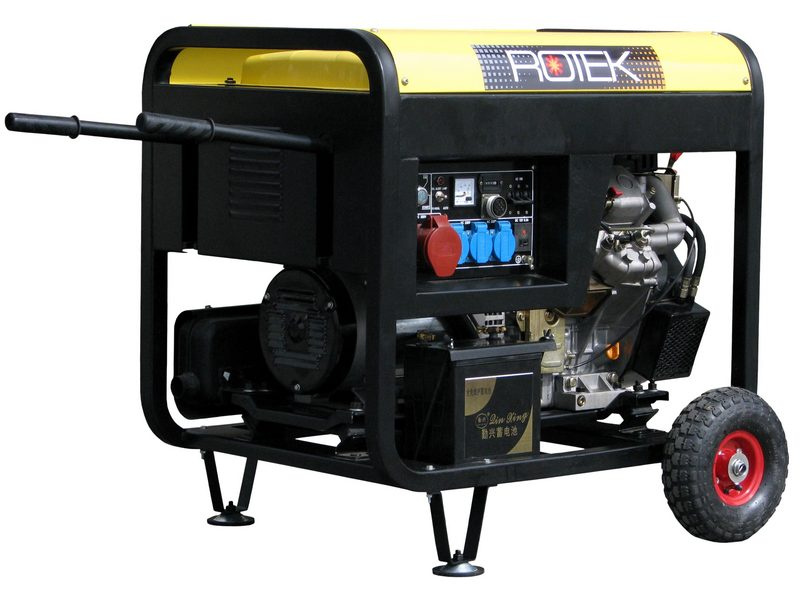

Name: Diesel Generator Sets
Rated frequency (Hz)--------- 50
Rated output(kW) ----------- 10
Max. Ouput (kW)--------------- 12
Rated voltage (V)-------------400/230
Rated current (A)_________13.7
Rated speed (r/min )------------ 3000
Phase number-------------- one/Three-phase
Excitation mode--------Self-excitation and constant voltage(AVR
Fuel tank capacity (L)-------30
Overall dimension (mm) -------- 930x620x690
Dry weight (kg)----------155
Starter system--------- electric starter
Noise level----------- 70
Structure type--------------Open Frame
We are the manufacturer of v-twin diesel engine of 20 hp.
V Twin Diesel Engine Of 20, 22hp
Type: Two-cylinder, V-twin, air cooled, four stroke, OHV, direct injection
Bore x stroke(mm): 86X70
Displacement (L): 0.836
Rated power/Rated speed(kW/r/min): 12 kw/3000rpm 14.6/3600 rpm
Lube type: Forced feed +splash
Starting type: 12V electric starter
Overall dimension: 525x391x459
Dry weight (kg): 56
