Exciting Method:
Brushless
Gas Mixing Type:
Outside
Gas Pressure:
3-20 Kpa
Cooling Mode:
Circulating Water Cooling
Overhaul Time:
>30000h
Gas Source:
Biogas
Product Description

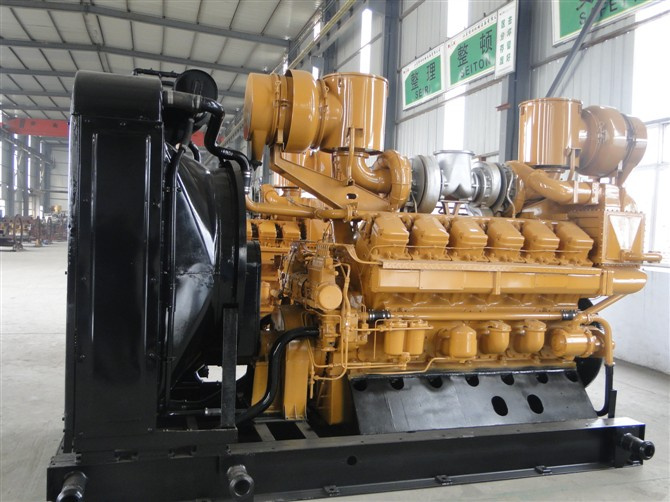

10-600Kw China Manufacturer Supply Biogas Generator Set Price

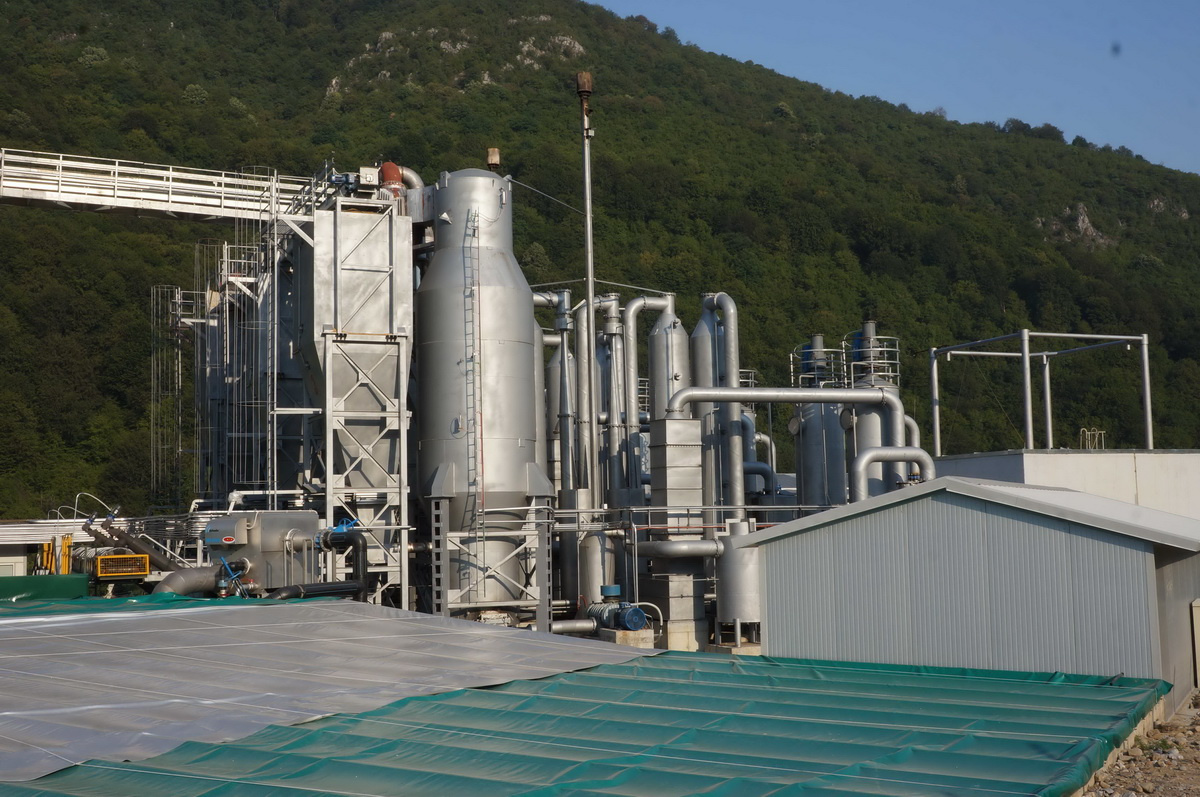

biogas is a mixture gas, main composition is methane (CH4) and carbon dioxide. Methane covers 45-70%, carbon dioxide covers 30-40% and also a bib of other gas like hydrogen, carbon monoxide, hydrothion sulfide oxygen, nitrogen, etc. because there are abundant of methane, the biogas can be used as a kind of fuel. Biogas is a kind of product that organics is resolved by bacterium under the anaerobic condition. Garbage in the city, sludge in the sewage treatment plants, excrement and straws all can be used to generate biogas.
Shandong Lvhuan Power Equipment Co.,Ltd is a pioneer and practitioner in green energy and renewable resources.
Requirements for biomass gas: Within 1m from pressure regulating value of gas intake; Gas temperature<40ºC Pressure of natural gas: 3--20 kpa, rate of pressure change <1 kpa/min; H2S≤200mg/Nm3; NH3≤20mg/Nm3; CH4 content ≥40%, changing rate ≤2%/min; Moisture content ≤40g/Nm3; Impurity particle size ≤5µm, impurity content ≤30 mg/Nm3 Heat value≥4.2MJ/Nm3

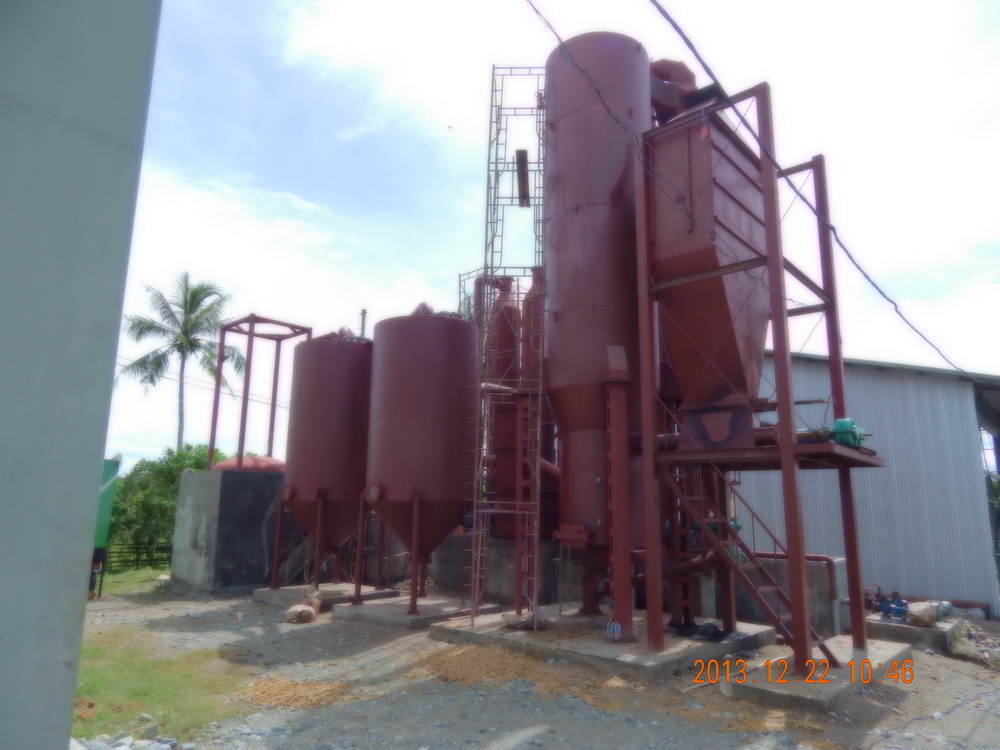

4.Requirement to coal gas: The genset will be able to output at its full power with fuel gas with the specification as below: 1m from genset's pressure regulating valve of inlet 1. Gas temperature≤ local temperature + 15ºC(≤ 40ºC is better) 2. Gas Pressure can be adjusted from 5-20 kPa, the changing pressure rate ≤1kPa/min. 3. Use low-sulfur coal, one set sulfur scrubber is necessary (H2S≤200mg/Nm3) 4. NH3≤20mg/Nm3 5. Tar and Particulate matter≤50mg/Nm3. 6. Diameter of Particulate matter≤5μm, particulate content≤30mg/Nm3. 7. Moisture content≤40g/Nm3 10. Heat Value of coal gas: ≥4.2Mj/ Nm3.
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug. Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current. Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate. Speed regulating system:EGS gas controller of American WOODWARD Company. scope of application:Biogas generator set is widely used in the many area where can generate biogas,like rubbish landfill,livestock excrement disposal,industrial organism disposal.
Parameter of Biogas Generator Set
Model Number (Engine Type)
LHBG100
Brand Name
LVHUAN
Prime Power/Standby Power
80KW/100KW
Rated Speed
1500/1800RPM
Rated Frequency
50/60Hz
Rated Voltage
400V/230V
Phase
AC 3-Phase, 4 wire
Voltage Stability
≤±2%
Voltage transient
≤±10%
Voltage Stable time
≤1s
Heat consumption
≤11mj/kw.h
Lubricant consumption
≤1.0g/kw.h
Engine Capacity
12.90 L
Cylinder Number
6
Cylinder Bore
135mm
Stroke
150mm
Starting System
DC 24V electric motor
Cooling method
water cooler
Lubricant method
Passive and flying lubricant
Isolation class
H
Protection
IP23
Alternator
Chinese Stamford
Power Factor
0.8 lagging
Exciting method
brushless
Colour
your choice
Certificates
ISO 9001:2008, CE
Warranty
1 year or 1000 running hours which arrives first
Type
Open
Control system
Automatic alarm system
Size
2850x1100x1750mm
Weight
1900kg
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
