Length(mm):
2450
Width(mm):
1850
Height(mm):
4880
Weight (Dry,Kg):
1130kg
Type:
Handed Type
Bulb Type:
LED
Color Temperature(',CCT):
Cool White
Material:
ABS
Battery Type:
Lead Acid
Operating Voltage:
220-240V
Lamp Power:
>100W
IP Rating:
IP65
Usage:
Boat
Certification:
GS
Power Source:
Diesel
Product Description

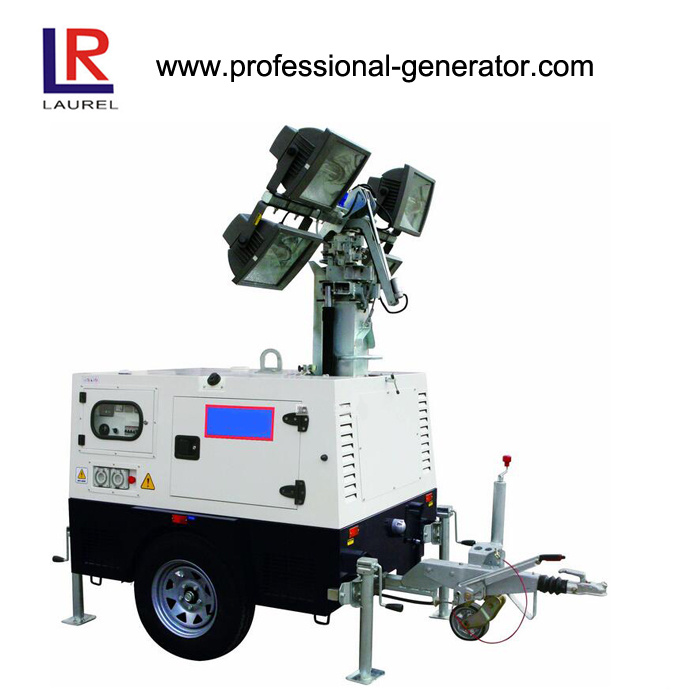

10/11 kva Diesel Mobile Light Tower, Portable Lighting Tower Generator
Light Tower Descriptions:
The winch with self-locking device can extend the mast easily; The individual winch are able to make the mast extension reliable and safe; The lights can be adjusted manually at the non-lifting position , each light can be rotated 300°and tiled 90°; The galvanized mast and the power coated canopy endure outdoor environment for a long time; The Hexagon rubber suspension system option is suitable for variously rough ground, and its maintenance-free axis's service life will be at long life; The excellent-quality and multi-fault protection generator with the low-emission diesel engine and brushless alternator can power all the lights stablilze and continuously; The simple and clear graphic indication and operating mark on the tower stably and reliably, even on rough ground ,and ensure the lighting tower can also work in the 8 grade windy weather; All the outdoor electrical plugs and sockets are at least IP44 protective class.
Light Tower Features:
Standard Equipment
LFT1000
Length(mm)
2450
Width(mm)
1850
Height(mm)
4880
Mast Height (Mast be extended fully)
10050MM
Weight (Dry,kg)
1130kg
Engine model
Y385
Frequency (Hz)
50/60
Speed (rpm)
1500/1800
Continued Power (kVA)
10/11
Number of Cylinders
3
Diesel Engine Characters
4 cycles, water-cooled diesel
Combustion Type
Direct injection
Engine Aspiration
Naturally aspirated
Alternator
Single phase with brushless
Rating Voltage (V)
230V/240V
Alternator Insulation
Class H
Fuel Tank Capacity
150 liters (45Us gallons)
Operating hours with full fuel
40 hours
Type of lights
LED or Metal halide floodlight
Number & Power of Lights
4*1000W
Mast Lifting & Extension
Manually
Mast Rotation
300°Manually
Light bar Tilt
Manually
Control System
Kusing6132
Stabilizing Legs
Manually
Trailer Suspension System
Hexagon Suspension without Brake
Hitch & rim size
The ball or O ring hitch in stable height & the tow bar with a supporting wheel
Tire & tow bar
14"
Wires & electric components
IP44
Acoustic Pressure
70dB(A) at 7 meters away
Max.load quantity in a 40' HQ container(set)
6
Optional equipment & upgrades:
Engine
Perkins:403D-15G can be optional
