Parameter

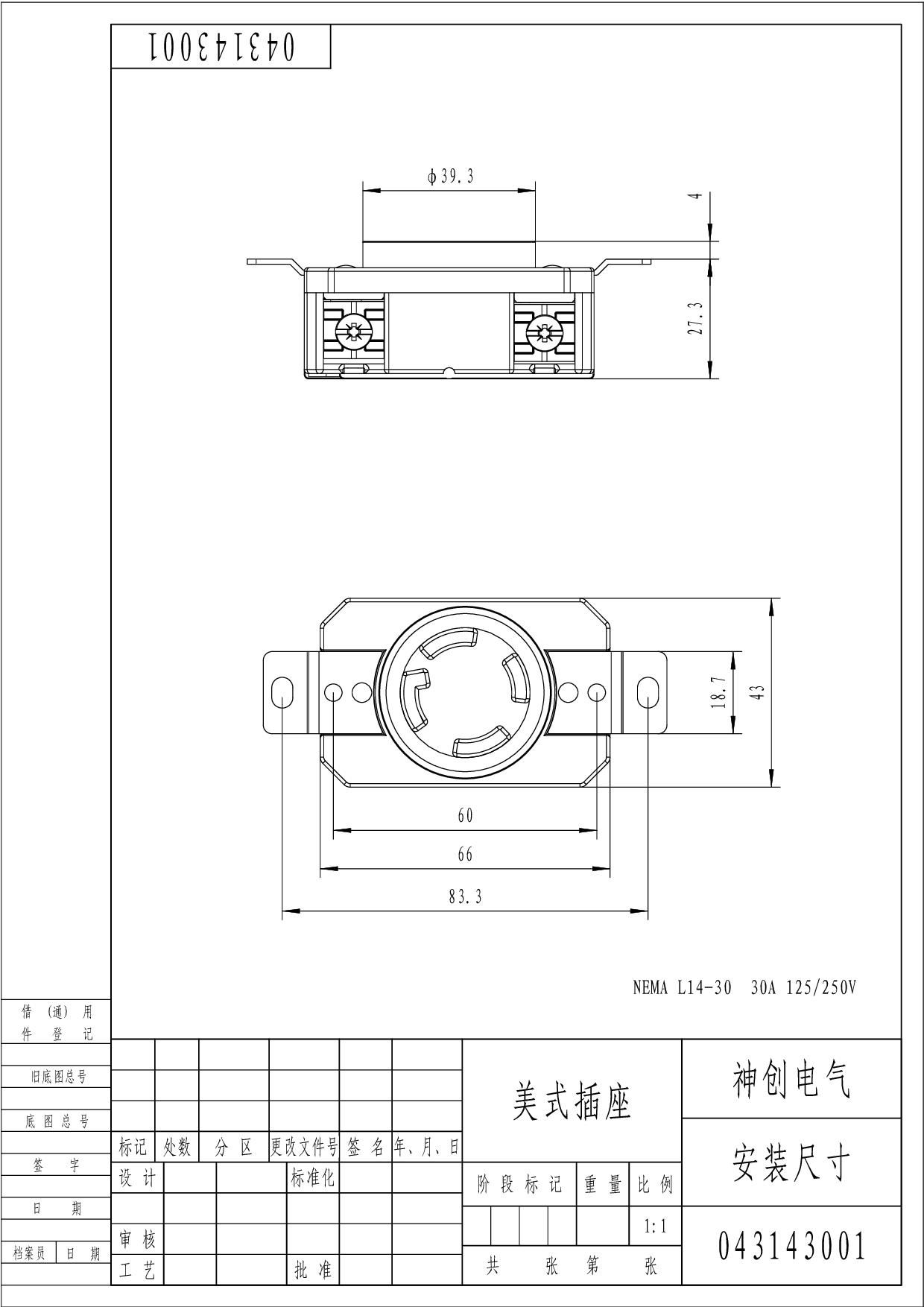

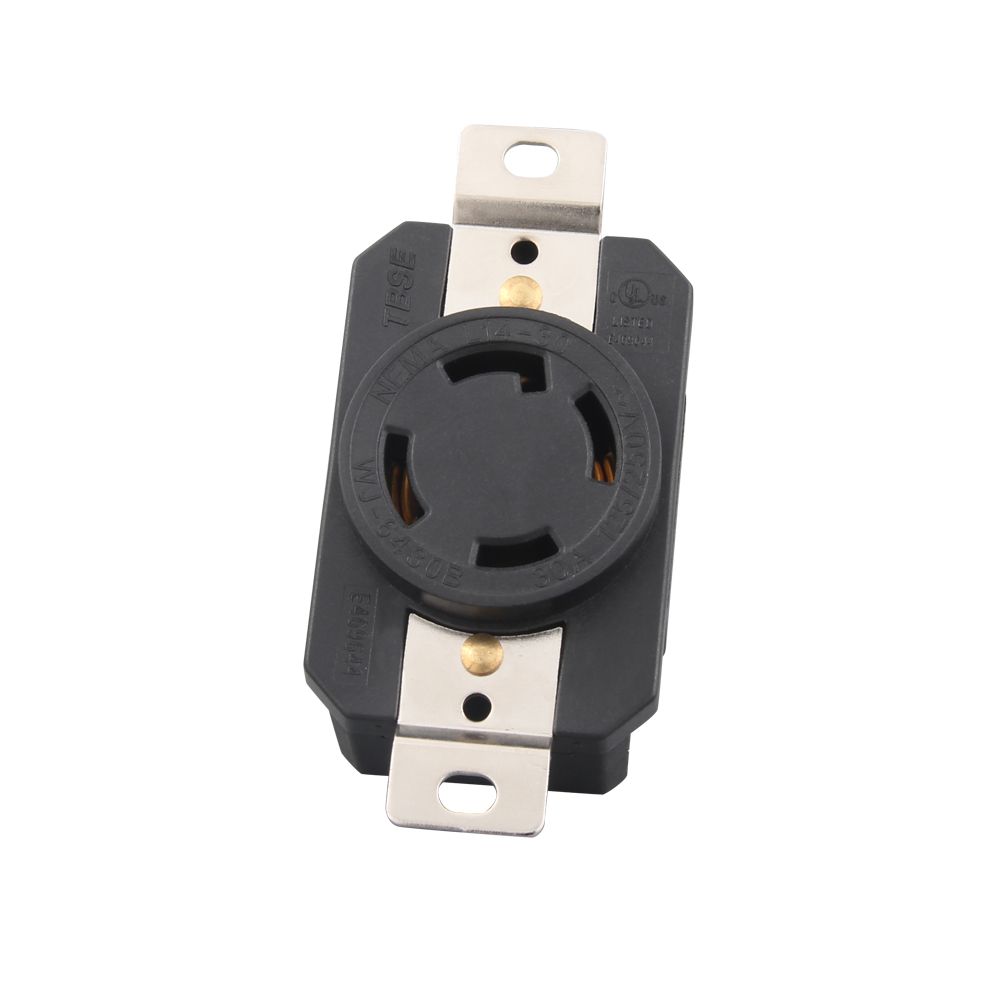

Product Name NEMA American spin lock socket
Product Model 043143001 NEMA:L14-30R
Using standard UL498 CSAC22.2
Rated Current 30A
Rated voltage 125/250V
Interface mode 3P+G
Insulation Resistance ≥5MΩ
Electrical strength AC 2000V 50HZ
Protection class IP20
The main material PA66ZR01
Color Standard color: black; or according to customer requirements
Adaptation Model 041143001
Application
They are widely used in Ironmaking and Steelmaking,Generator industry, Petroleum Chemical Industry, Electricity, Electronics, railway, Construction Site, Airports, mine, post-mining land, water treatment plant and port, Pier,market, hotel.
Features
This product is very durable, long-lasting life, superior stability, belonging to the patented design
Testing and Quality Control
Our product have pass lots type of test, whatever in TEMPERATURE-RISE TEST, CTI/PTI TEST, GLOW WIRE TEST, INSPERTION AND EXTRACTION FORCE TEST, SAND AND UST TEST and the other test, our product performance are over the standards and other brands' product
Certification UL RoHs
