Description:

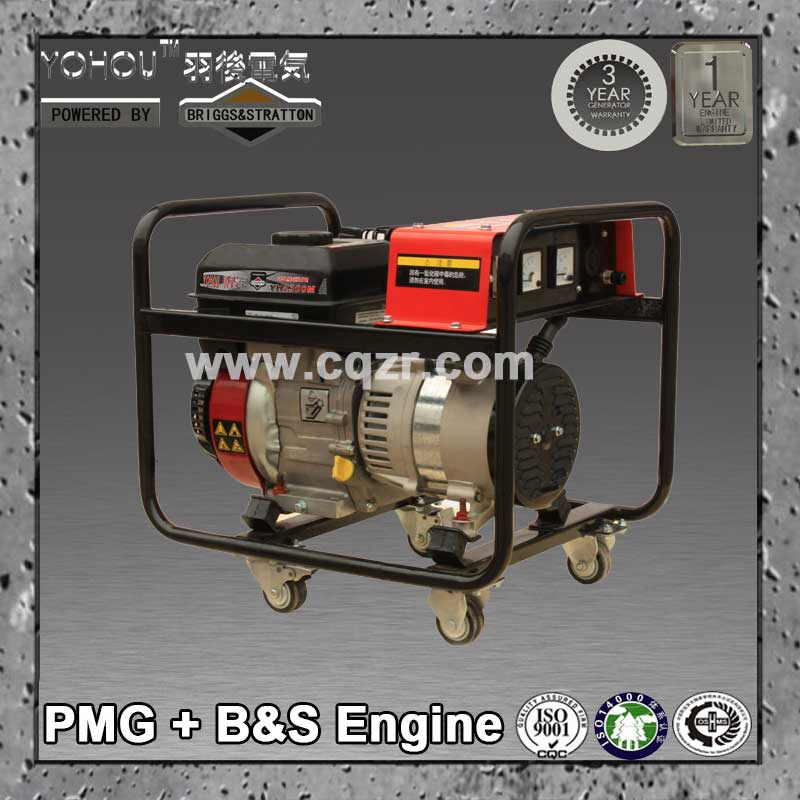

This small portable power generator is independently developed by YOHOU. With 2kva rare earth permanent magnet generator powered by origional American Briggs & Stratton gasoline engine, this power generator is featured by compact structure, small size, light( about 30% lighter than conventional generators of equal watts). This gasoline power generator is portable for home/camping use.
Advantages:
1. Simple structure. Permanent magnet. No AVR, no exciter, no rotor windings
2. No carbon brush. No electric sparkle, no electromagnetic disturbance
3. Ultra strong overload capacity. 3 hours' long run time at 110% load
4. Low failure rate, maintenance free, saving maintenance cost
5. Low emission, low fuel consumption, saving fuel cost
This 2kva small portable power generator is designed to handle your power needs at home or job sites. You can use it to keep your family from unexpected power outage.
Technical Specification:
| Name |
|
| Genset Model | YH2300M |
Generator
| Excitation System | Permanent Magnet
(No AVR, No Exciter, No Excitation Windings) |
| Frequency (Hz) | 50 Hz | 60 Hz |
| Voltage Rating (V) | 230 V | 230 V |
| Rated Capacity(VA) | 2000 VA | 2200 VA |
| Max Load(W) | 2100 VA | 2300 VA |
| Power Factor (COSΦ) | 1 |
| Output Type | AC 1 Phase |
| Battery Capacity | / |
Engine
| Model | Briggs&Stratton 831 |
| Power(HP) | 3.5 |
| Rpm(R/Min) | 3000rpm | 3600rpm |
| Cooling System | Air-Cooled |
| Fuel | 93# Unleaded Gasoline |
| Fuel Tank Capacity(L) | 3.6 |
| Displacement(CC) | 127 |
| Others | Protection Class | IP23 |
| Sound Level @ 7m(Dba) | ≤68 |
| Dimensions (L X W X H)(Mm) | 500×380×410 |
| Weight(Kg) | 35 |
Accessories
| Low Oil Alert | Yes |
| Frequency Meter | Yes |
| Hour Meter | Yes |
| Terminal | Yes |
| Electric Starter | No |
| Non-Fuse Breaker | Yes |
| 12V DC Output | No |
| Automatic Choke Valve | No |
| Fuel Gauge | Yes |
| Wheels | No |
| Storage Battery | No |
