Product Description

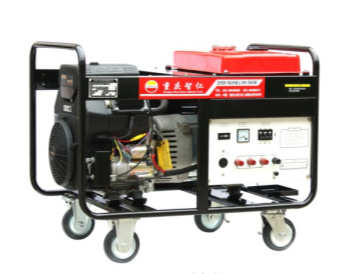

This 10 KW rare earth permanent magnet diesel genset is powered by American Kohler engine and configured with our patented technology product--rare earth permanent magnet generator. It is industrial product rather than civilian product made by manufacturers from general machinery industry. With two-year guarantee for generator replacement, It has better cost-performance compared with Japan-imported gensets. Our clients are those people or fields that require quality products and high performance.
Product Feature
1. Compact structure, small size, and light weight which is about 30% lighter than a common generator.
2. Complicated energy consuming devices which are parts of a common generator, such as excitation winding, exciter and AVR voltage regulator are not needed. Besides, the efficiency and the power factor are 20% higher than those of a common generator.
3. It has ultra strong over load capacity and can start inductive loads of approximate power such as UPS power source, air conditioner and motor etc.
4. It is highly reliable, maintenance free, long life, water proof and dust -proof with no more than 50 degree of temperature rise when the generator is under continuous full-load run.
5. Transient voltage deviation of both shock load and sudden load drop are less than 10%. Steady-state voltage deviation is not over 0.5. Neither line voltage harmonic distortion rate nor telephone harmonic factor is over 2%. Please be assured of the use of precision instruments and meters.
6. Compared with brushless motor, it has neither carbon brush that brushless motor does not have nor complicated excitation control unit. This makes the structure simpler and lowers the whole machine failure rate. Besides, it has ultra strong overload capacity which belongs to carbon brush motor. (the overload capacity of Brushless motor is low)
7. Compared with brush motor, it has not carbon brush and has no electric sparkle or electromagnetic disturbance under operation. It is perfectly suitable for communication and military use.
Rare earth permanent magnet generator has the advantages of both brush motor and brushless motor, and has unsurpassable superiority in features and performance than both.
Application
Products of this series are widely used in communication, railway, bank, oil, utility and military fields so far. Our rare earth permanent magnet gensets have been exported to south America, Northern Asia and Africa markets for military and government purchase.
|
Model |
GF10S/M |
GF10D/M |
|
Engine |
Engine model |
Kohler Ch20 |
|
Power(hp) |
20 |
|
No. of cylinders |
2 |
|
Engine speed(r/min) |
3000(rated)/3600(max) |
|
Cooling method |
Forced air cooling |
|
Fuel type |
93# pure gasoline and above |
|
Displacement(cc) |
624 |
725 |
|
Starting method |
electric |
electric |
|
Oil alarm system |
with |
with |
|
Oil consumption(g/kw.h) |
344 |
|
Oil tank capacity(L) |
25 |
|
Generator |
No. of phases |
three |
single |
|
Excitation mode |
rare earth permanent magnet |
|
Rate voltage |
400 |
230 |
|
Power factor ( cos Φ ) |
0.8 |
1 |
|
Frequency(Hz) |
50(rated)/60(max) |
|
Rated electric current(A) |
14.4 |
43.5 |
|
Rated power(KW) |
10 |
10 |
|
Max power(KW) |
11 |
11 |
|
Whole machine |
Protection grade |
IP25 |
IP25 |
|
Insulation class |
F |
F |
|
Noise at 7 meters(dBA) |
72 |
|
LxWxH(mm) |
900X605X725 |
|
Net weight(kg) |
118 |
Chongqing Zhiren Electric Equipment Co., Ltd. Is a national high-tech corporate integrating production, R&D, sale and technical services with total initial investment of over 40 million yuan. Chongqing Zhiren specializes in the R&D, production and technical services of rare earth permanent magnet generators ranging from 1 KW to 100 KW, digital generators, DC generators, diesel generator sets ranging from 10 KW to 2000 KW, soundproof generator sets, movable power stations, generator remote control systems, computer driver motors, generating welders, rail cutting machines, rail bolt wrenches, and railway material transfer cars etc.
Established in 2001, Chongqing Zhiren has devoted itself to this field for over ten years. We have been modestly studying and doing innovation on the basis of absorbing advanced technologies and have gained several national patents so far. Our products are widely used in fields including communication, railway, banking, oil industry, chemical industry, electrical engineering and military, and we have won support and trust of a large number of users.
Chongqing Zhiren has passed ISO9001 Quality Management System Certification, ISO14001 Environmental Management System Certification, OHSAS18001 Occupational Health and Safety Management System Certification, China Compulsory Certification and TCL Certification. We have the most advanced production line and online detecting equipment. We have won support and trust of a vast majority of users with high-quality products, reasonable prices, and superior pre-sale, sale and after-sale services for a long time. Chongqing Zhiren has been promoting the corporate spirit of "sincerity, credit, pragmatism and innovation" and adhering to the idea of "conscientious work and steadfast personhood", and it has always taken customer satisfaction as the top goal.
One culture can spread the contemporary spirit. Likewise, the growth of a company can also be the symbol of a culture. Because we have been through the hardship of starting an undertaking for over ten years, we cherish each chance and understand customers' trust and entrustment more. We have employees who are competent, upright, simple and passionate as our solid backing and we have been treating customers with honesty and credit. Now, we will continue holding a far-sighted vision by taking advanced technologies as basis, creditable quality as life and superior services as guarantee. We are dedicated to make Chongqing Zhiren a national brand and we will forge ahead and shall never slacken our effort.
