Y4 Series Three Phase Cast Iron Electric Motor
| Price: |
US $ 24-32/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
Brief Introduction :
INTRODUCTION:

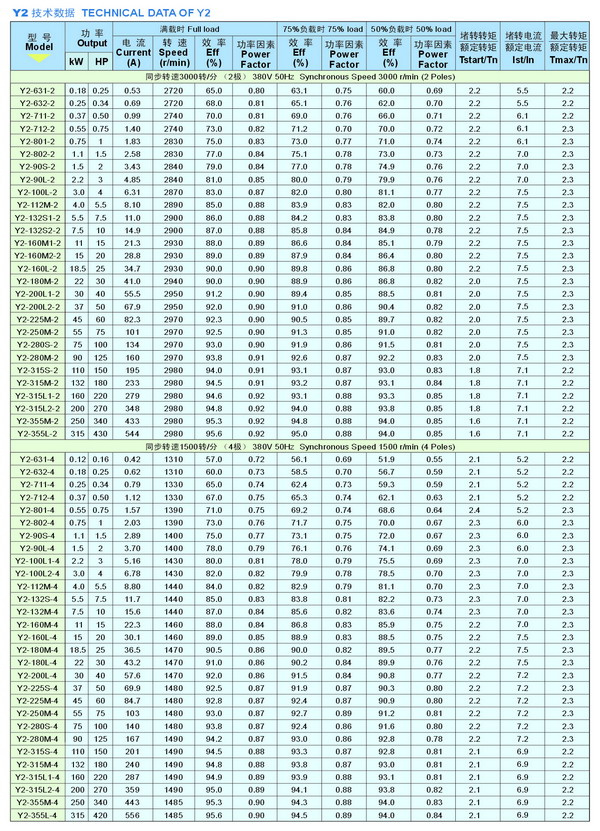

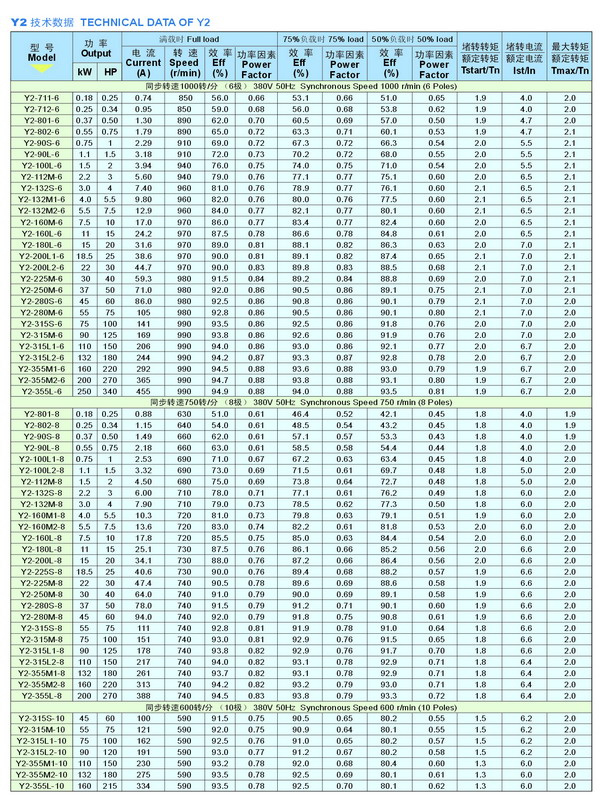

Adopting the national uniform design, Y2 series three-phase induction motors are in conformity with IEC34-1 and JB/T8680 standards, also up to the international advanced level of the 90's. As the substitute of Y series induction motors, it possesses sophisticated features such as new construction, good appearance, slight vibration, low noise etc.

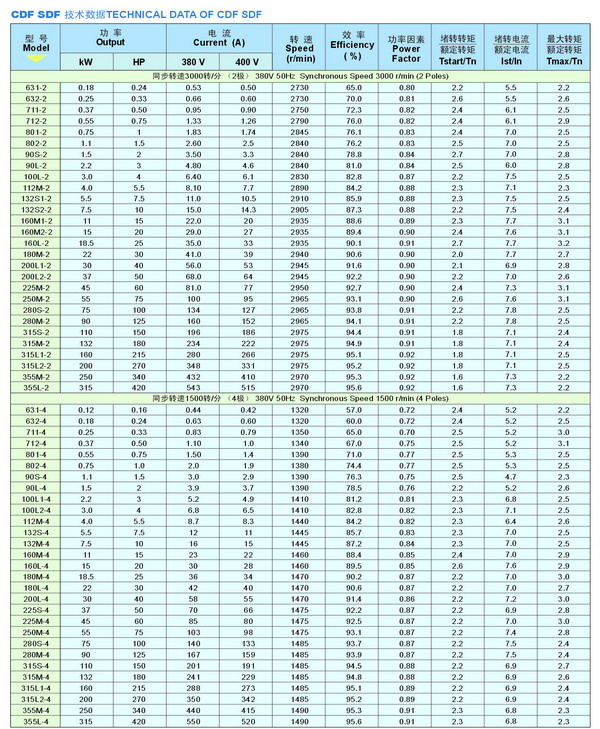

CDF, SDF series three phase motors are newly designed by our company for the European and American markets on the basis of Y2 series. Its rated power and mounting sizes are quite same as Y2 series. The efficiency of CDF and SDF can meets standards of EFF2 and EFF1. The motors are adopted in class F (Temperature rise B) insulation and IP55 protection. Motors can be equipped with PTC, as well as re-greasing system for frame size 160 and above, bearings of SKF, NSK or NTN at optional.
Use environment :
OPERATING CONDITIONS
Ambient temperature:-15oCAltitude: not exceed 1000m
Product characteristic :
Rated voltage: 380V or any voltage between 220V-760V.
Rated frequency:50Hz,60Hz
Protection class:IP54,IP55
Insulation class: F ,H
Cooling method:IC 411
Duty:S1(continuous)
Connection: Star-connection for up to 3kW, delta-connection for 4kW and above
Remark: Terminal box on top, right or left side are available. Key-way can be closed type or opened type. Motors can also be equipped with PTC, as well as re-greasing system for frame size 160 and above.
| Prod Model: |
Y90S-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Series: |
Y |
| Phases: |
Three Phase |
| Voltage: |
380V |
| Frequency: |
50Hz |
| Eff: |
92% |
| Output: |
3/4~40HP |
| Power Factor: |
0.8 |
| Output Type: |
AC Three Phase |
Fuzhou Emean Electric Machinery Co., Ltd. is one of the biggest enterprises, lies in "China Electrical Machinery and Appliances City"--Fuan. EMEAN is a private enterprise established in 2003, which is a comprehensive electrical machinery manufacturing company integrating product designs, production, marketing and service.
Rely on scientific and technological development, we continue to provide users high-tech products, which is our consistent pursuit. On the basis of absorbing the foreign advanced technology, we have already fetched in 10 lines advanced international machinery production. The main products manufactured by our company consist of more than 10 series, over 100 types, involving generators, diesel generating sets, gasoline generating sets and concrete cutter, of which all of our products have been passed the national attestation CCC, CE certificate, Nigeria Soncap and EPA certificate.
EMEAN is a young enterprise, but she owns the fresh and great-hearted blood, which make her more charmful. "Quality assurance, user first" is the agreement of EMEAN executives. Communicate with the domestic industry, scientific research institutions exchange and cooperation so as to improving the quality, such as: Design and production, commissioning and maintenance. Then occupy the market, and expand the scale of the company. We have been moving forward to a more prosperous achievement under the fierce competition.
Today, EMEAN staff pursue the guidelines--"aggressive, realistic, strict and unity" to blaze new trails. We make technology as the core, quality as life and users to God, dedicated to provide you with the highest & cost-effective products and meticulous after-sales service in order to shape a bright future.
