Wood chip Fired 400kw - 2000kw Biomass Gasifier Generator set for sale
Biomass generator simple description:
This type of generator is choose gas as power. Gas will be burned directly inside of engine's cylinders, then give machinery force to alternator to produce electricity power. There are mainly 3 parts on one generator set: gas engine,alternator and radiator. The generated power can be connect to national grid, or for daily use and industrial use.
Biomass generator Core feature:
Manufacturer supply for over 20 years
Export oversea since 2008
Usage of power: self-use, industrial use, sell to city grid
Prime power supply range for single set: 5kw - 500kw
More power, Eg 2MW available by parallel system
Famous component brand form USA,UK,Ger.
With CE ISO certificate
Warranty: 1 year
Life-long after sale service and maintneance service
Biomass generator fuel description:
Fuel: Biomass( Crops: straws of rice, wheat, bean, cotton, husk etc. weeds, algae etc. Animal wastes and spoils.Organic exist in waste water and rubbish etc.
Model Number | LHBMG10-700 |
Prime power | 5-500kw |
Rated Power | 10-700 |
Rated Speed | 1000/1500rpm |
Rated Frequency | 50/60 Hz |
Rated Voltage | 400/230V |
Phase | AC 3 phase 4 wire |
Starting system | 24V DC electric motor |
Cooling method | water cooler |
Lubricant method | passive and splash |
Isolation class | H |
Protection | IP23 |
Power Factor | 0.8 lagging |
Exciting method | Brush less |
Voltage Stability | ≤±2% |
Voltage Transient | ≤±10% |
Voltage Stable time | ≤1 s |
Engine Capacity | 1.81-71.45L |
Cylinder Number | 2-16 |
Cylinder Diameter | 100-190mm |
Range | 115-210mm |
Heat consumption | ≤9.8mj/kw.h |
Oil consumption | ≤1.63g/kw. |

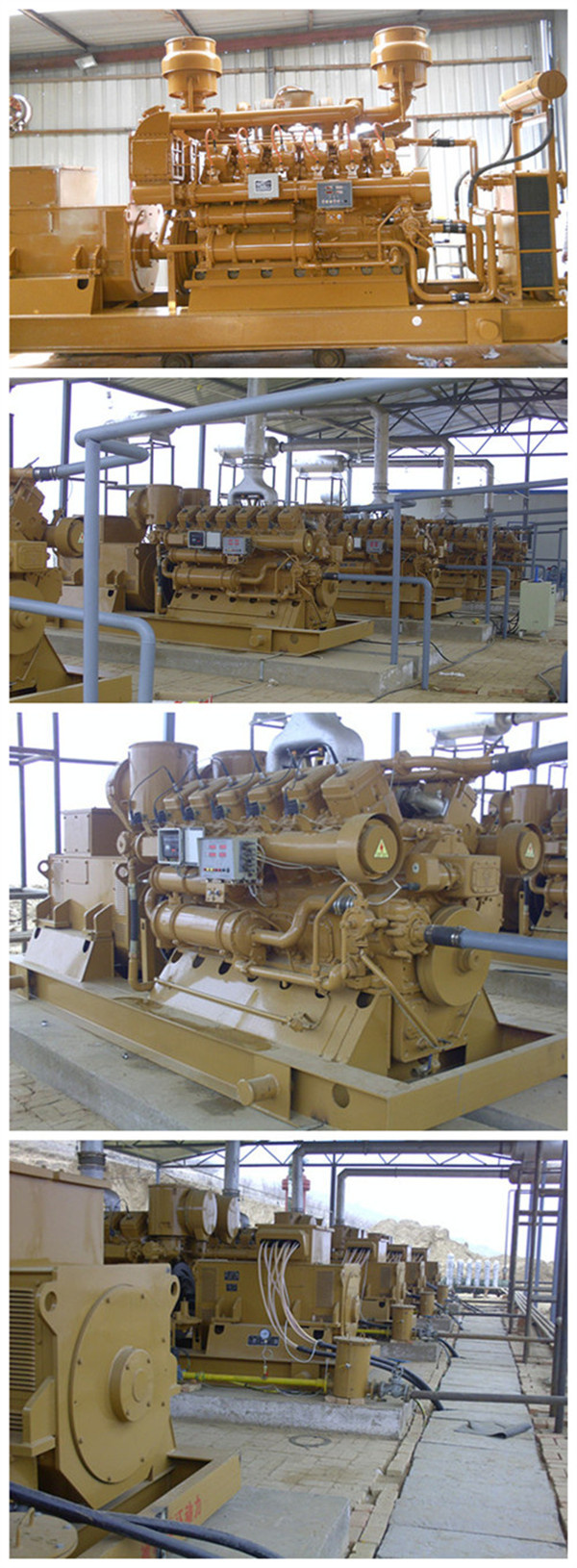

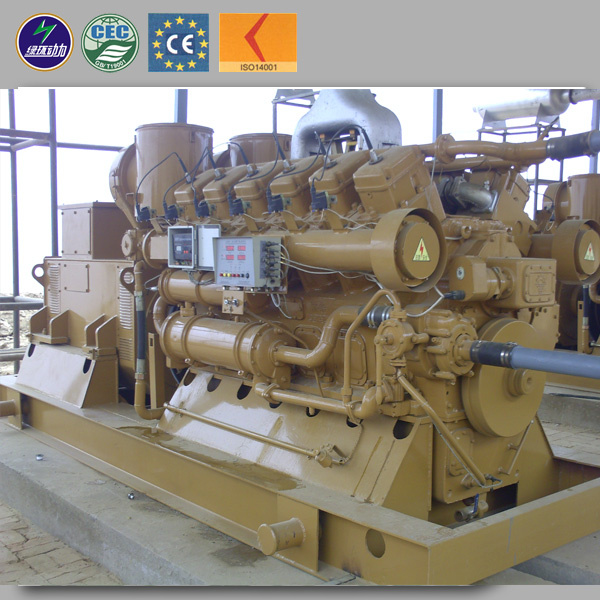

Biomass generator photos:
Work site requirements on biomass generator:
The work site needs to meet following basic requirements:
a) Ambient temperature between -40ºC~40ºC;
b) Relative humidity less than 95%(35ºC);
c) Site elevation not higher than 2500m;
d) For outdoor installation, simple rain shelter is required.
Fuel gas requirement on biomass generator:
The generator set will be able to output at its full power with fuel gas with the specification as below:
1m distance away from generator set's pressure regulating valve of inlet
Temperature of syn gas ≤40ºC;
Pressure of syn gas 5~20kPa, velocity of pressure≤ 1kPa/min;
H2S≤200mg/Nm3;
NH3≤20mg/Nm3;
Coke tar content≤20mg/Nm3;
Impurities particle size≤5μm; impurity content≤30mg/Nm3;
Moisture Content of syn gas ≤40g/Nm3;
biomass gas calorific value≥4.2MJ/Nm3.
Purification of biomass gas have a significant impact on machine life and continuous running time!
Biomass generator features:
1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality
3.Expansion fitting combined with shrinking fitting give high tightness to the system
4.Safety guarantee form electromagnetic valve as well as back-fire relief valve
5.Residual heat CHP recycle system available for choice.
Biomass generator Supply details:
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Control system: Woodward form America
Controller: Woodward, deepsea,ComAp.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Speed regulating system: EGS gas controller of American WOODWARD Company for option.
Our company overview:
Visitors form oversea:
RFQ-biomass generator :
1.How to choose the right model? A: It depends on real output power, Voltage, Frequency and gas type.
2.What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce1.5-3.0kw/h power. The capacity depends on gas energy.
E.g 1.0 Cubic meter natural gas produce about 3.0kw/h
3.What is the overhaul?
A: About 30000 working hours. A week is enough to finish.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. But, a set of spare parts will be shipped together with machine free.
5. How is the service?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
Delivery time: 10-25days
Payment: TT/LC
Shipment from Qingdao port, by LCL,FCL 20/40HQ.
