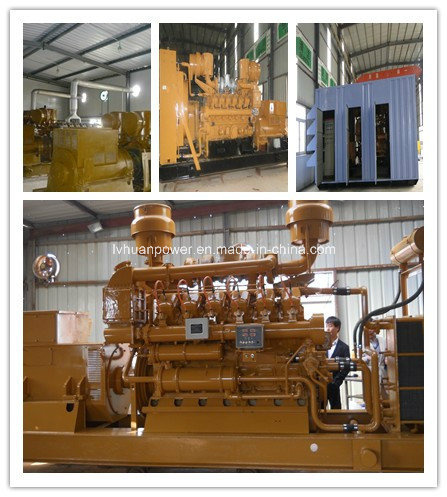

CE Approve 500kw Power Plant Silent biogas power generator
Worksite requirementsThe worksite needs to meet following basic requirements: a) Ambient temperature between -40ºC~40ºC; b) Relative humidity less than 95%(35ºC); c) Site elevation not higher than 2500m; d) For outdoor installation, simple rain shelter is required.Gas requirements1m from genset's pressure regulating valve of inlet1. Pressure of natural gas: 80~300kPa2. CH4 content of natural gas≥70%3. H2S≤20mg/Nm34. Impurities particle size≤5μm, impurity content≤30mg/Nm3Purification of natural gas has a significant impact on machine life and continuous running time! The advantage of our generator set1. Can adapt to the changing of gas power generation, gas concentration control system has the function of gas concentration range set, through effective set concentration range, guarantee in the case of concentration changes has been in the best air/fuel ratio. To keep a stable output power and continuous.2. Gas pressure≥5kP(Naturally aspirated generator set ),Low pressure gas transportation safety performance is good3. High power gas turbine control technology mature, the international famous brands such as caterpillar, wacker summer gas, natural gas units adopt the control technology.4. Especially in500 kw gas main important parts used only 190 engine parts, "gold medal" brand green ring USES the spare parts is one of the world's most advanced high sophisticated processing equipment, ensure the spare parts has the characteristic such as high machining precision, reliable performance, to ensure the reliability of the gas generator and durability. FAQ 1. How to choose the right model?It depends on real output power, Voltage, Frequency and gas type. 2. What's the delivery time and can you lower the price?It depends on your order. The delivery time is within 40 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered. 3. Can you supply some quick-wear spare parts?Yes, we can supply the genset parts as your request,such as piston, piston ring, cylinder block assembly and crankshaft assembly , oil sump assembly , injection pump assembly, all kinds of engine spare parts, Mechanical governor assembly , bearings, etc 4. How is the service? We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it. 5. What is the warranty? One year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. But, a set of spare parts will be shipped together with machine free. Company Information Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines ,Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us Welcome to our company!1. We can pick up you in the airport port 2 book the hotel for you,3. show around the workshop and production line 4. we can supply the genset spare parts Just please contact with me dear friend if anywhere you need us.
| Parameter of Biogas Generator Set |
| Model Number (Engine Type) | LHBG500 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 400KW/500KW |
| Rated Speed | 1000/1200RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤9.8mj/kw.h |
| Lubricant Consumption | ≤1.0g/kw.h |
| Engine Capacity | 71.45 L |
| Cylinder Number | 12-V |
| Cylinder Bore | 190mm |
| Stroke | 210mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Function | ATS and AMF |
| Size | 6200x2100x2800mm |
| Weight | 12500kg |

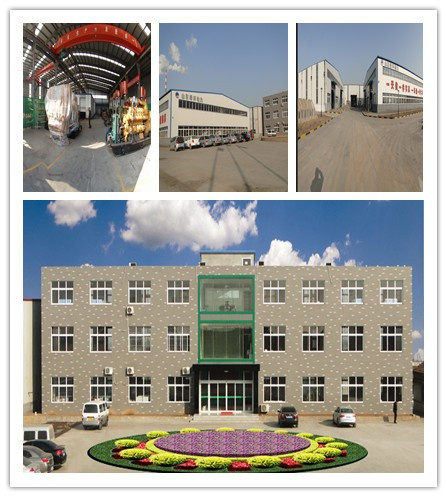

Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
