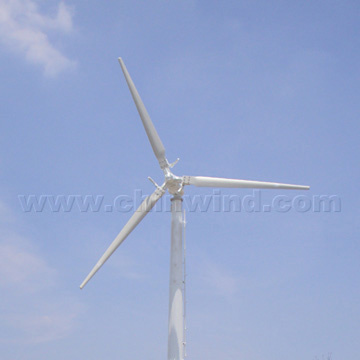

Model: HY-5000
Rated voltage(DCV): 240
Rated current(DCA): 21
Rated power(KW): 5
Rotor diameter(m): 6.4
Blade material: GFRP
Start-up wind speed (m/s): 2.5
Rotation direction (You stand leeward): Clockwise
Rated wind speed (m/s): 10
Cut-out wind speed (m/s): 16
Survival wind speed(m/s): 45
Wind turbine type: Down wind
Wind turbine tilt-angle: 6°
Rated RPM(RPM): 200
Blade No.: 3
Hydraulic tower height (m): 12
Cable length(m): 20
Yaw mechanism: Hydraulic
Yaw mode: Auto/manual
Efficiency: 85%
Protection mode: Yaw, Hydraulic brake, dumpload
Note:
1. Tower type, tower height can be special requested;
2. Working voltage can be special requested;
3. CE, ISO9001
4. For on-grid working system data, pls contract with us.
HEFEI SUNLIGHT Co., Ltd a Joint Venture enterprise is the professional manufacture in researching, developing, producing and promoting of small and medium size wind power generator system, with unit capacity range from 500W, 1kw, 2kw, 3kw, 5kw, 10kw, 32kw, 50kw with CE Certificate. Our wind turbines are mainly exported to the America, Canada, Argentina, Ireland, Sweden, Poland, France, Denmark, Australia, New Zealand etc, widely applied to domestic housing, oilfield, farmland, industry park, telecommunication and small wind farm.
In order to meet the rapid increasing demand from domestic and foreign markets, satisfy customers various demand, we also research solar panels to equip our wind turbines system, such as wind solar hybrid street lamp system, wind solar hybrid irrigation system, wind-solar hybrid telecom station system.
We enterprise regards quality as its life. We have successively achieved the ISO9001 Quality Management System Certificate, CE certificate. We enterprise aspires to be the much more energetic enterprise in China machinery manufactures and achieve continual, long term and high speed development. We sincerely welcome customers from all of the world to contact us on business discussion and cooperative management for mutually beneficial development.
