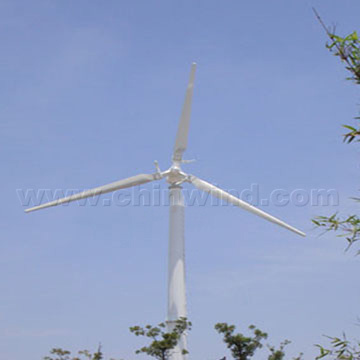

Model: HY-10KW
Rotor Diameter: 25 ft(7.8 m)
Generator Weight: 1102LB (500KG)
Rated Power: 10 KW
Peak Power: 12.5 KW
Rated Wind Speed: 24.6 mph(11 m/s)
Startup Wind Speed: 6.7 mph(3 m/s)
Working Wind Speed: 9 mph-56 mph(4 m/s-25 m/s)
Survival Wind Speed: 112 mph(50 m/s)
Rated RPM: 200 RPM
Blades: 3 Reinforced Fiber glass
Speed Regulation: Passive Variable Pitch&Electromagnetic Brake
Shutdown Mechanism: Manual/Electric Winch
Working voltage: DC300V
Generator Style: 3-phase AC PM
Downwind Variable pitch feature: (HY-10KW)
* Strong and Powerful: Direct PMG with 90% generator efficience. High precision-cast steel and hot-dipped galvanized for anti-corrosion protection on generator.
* Double speed regulation: Downwind variable blade pitch technology adopts dual speed regulation mechanisms. Pitch technology confines the RPM below 220 RPM and the electromagnetic brake system will protect the wind turbines in strong wind over 25m/s(56mph).
* Manual or Automatical shutdown: Wind turbine are equipped with manual brake system. And automatical electrical brake system is as available choice to protect the wind turbine system.
* The graphite brush and slip ring fixed inside the wind turbines will prevent the cable twisted.
* Warranty: 3 years
Note:
1. Tower type, tower height can be special requested;
2. Working voltage can be special requested;
3. ISO9001, with CE certificate
4. For on-grid working system data, pls contract with us.
5. For output power curve, pls contract with us!
