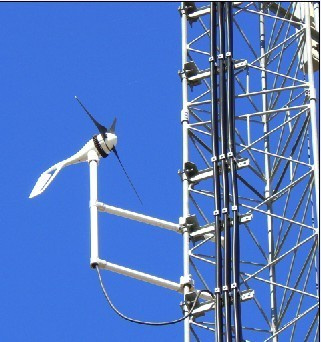

Model Winon 400w
Wind Turbine Type/Horizontal axis, up-wind
Rated Power 400w
Max. Power 500w
Rotor Diameter 1.8
Number of Blades 3
Start-up Wind Speed 2.5m/s
Rated Wind Speed 9m/s
Working Wind Speed 2.5m/s-25m/s
Safety Wind Speed 40m/s
Rated Rotation Speed 480r/min
Blade Material/Fiber glass
Weight 11kg
Generator style/Three-phase Permanent Magnet
Working voltage DC24V
Body Material/Aluminum die cast
Speed control/Free yaw (360 degrees)
Qingdao Winon Technology Co., Ltd is a professional small and medium wind turbine manufacturer. We ingaged in the development and application of wind turbine systems under 50kw and have accumulated a wealth of experience in new energy project design and constrution. The factory has already passed ISO9001 certification and CE certification. The products have already exported to morn than twenty countries.
With a sincere and honest attitude, Winon energy supplies the best power supply solutions for users all the time, and contribute the best efforts for new energy.
