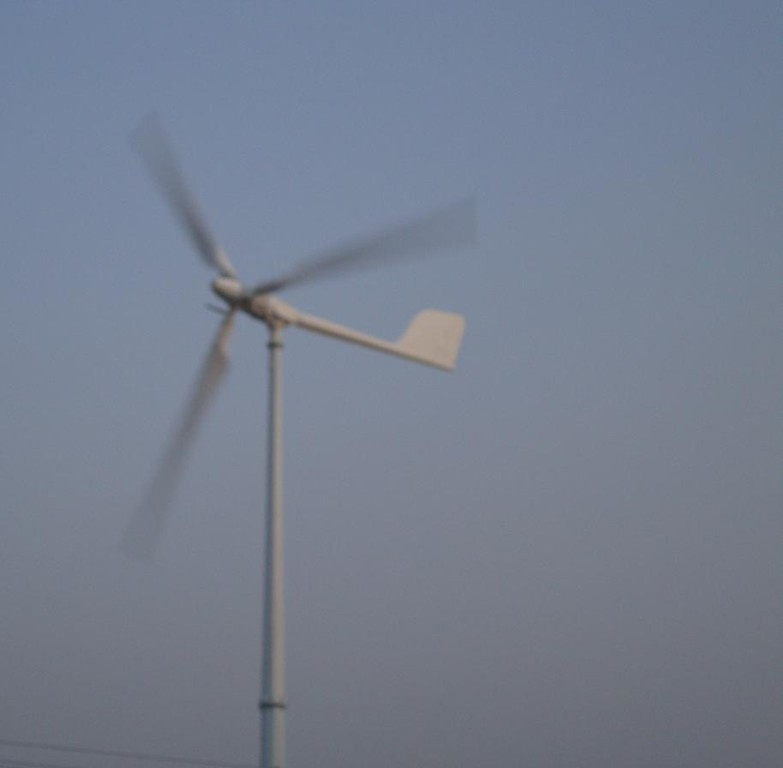

Model WNPC-10KW
Wind Turbine Type / Horizontal axis, up-win, pitch-control
Rated Power 10000w
Max. Power 13000w
Rotor Diameter 7.5
Number of Blades 3
Start-up Wind Speed 3m/s
Rated Wind Speed 10m/s
Working Wind Speed 3m/s-30m/s
Safety Wind Speed 50m/s
Rated Rotation Speed 130r/min
Blade Material / Fiber glass
Weight 520kg
Generator style / Three-phase Permanent Magnet
Working voltage DC240V
Body Material / Cast Iron
Speed control +/ Pitch-control + brake
Qingdao Winon Technology Co., Ltd is a professional small and medium wind turbine manufacturer. We ingaged in the development and application of wind turbine systems under 50kw and have accumulated a wealth of experience in new energy project design and constrution. The factory has already passed ISO9001 certification and CE certification. The products have already exported to morn than twenty countries.
With a sincere and honest attitude, Winon energy supplies the best power supply solutions for users all the time, and contribute the best efforts for new energy.
