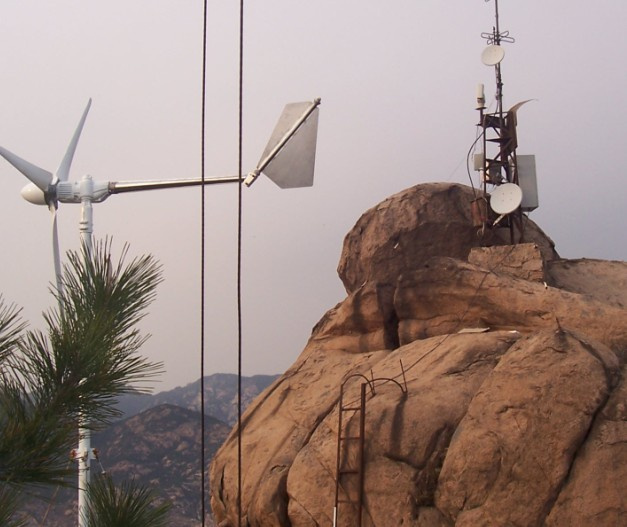

Model winon 1000w
Wind turbine type/horizontal axis, up-wind
Rated power 1000w
Max. Power 1450w
Rotor diameter 2.8
Number of blades 3
Start-up wind speed 3m/s
Rated wind speed 10m/s
Working wind speed 3m/s-25m/s
Safety wind speed 40m/s
Rated rotation speed 400r/min
Blade material/fiber glass
Weight 38kg
Generator style/three-phase permanent magnet
Working voltage DC48v(24v)
Body material/aluminum die cast
Speed control/free yaw (360 degrees)
Qingdao Winon Technology Co., Ltd is a professional small and medium wind turbine manufacturer. We ingaged in the development and application of wind turbine systems under 50kw and have accumulated a wealth of experience in new energy project design and constrution. The factory has already passed ISO9001 certification and CE certification. The products have already exported to morn than twenty countries.
With a sincere and honest attitude, Winon energy supplies the best power supply solutions for users all the time, and contribute the best efforts for new energy.
