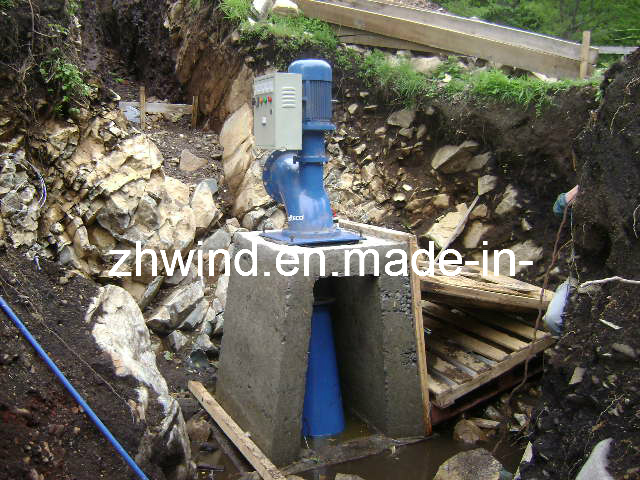

Medium Water Head Hydro Turbin

OverviewThis tubular turbine generator unit is applicable to the low-head power station which has a head of less than 20m and the diameter of runner is less than 3m. With the merits of considerable and well-going flow, and high efficiency, this unit is perfectly suitable for developing water resources of low head and large flow in the areas of plains, hills and Coastal place.
#2Structural characteristics:
The feature of this tubular turbine generator unit is that, the turbine is installed in a "s" type flow pipe, and the axis of turbine pierce through the pipe wall then connect with the generator installed outside the pipe. Between the turbine and generator there can be easily installed a accelerator to make the turbine's speed out of the constraint on the synchronous speed. The guide vanes and runner have the same characteristics as that of the bulb tubular turbine. Its overall layout is diverse and is up to the unit's size, capacity and the specific circumstances of hydropower stations. For example, generators can be installed in the upstream side of turbine (front axle stretch), and also can be installed in the downstream side (rear axle stretch); Unit's axis can be level (level axle stretch) or tilted (tilted axle stretch);
