About Us
Company founded in 1994, specialized in manufacturing wind turbines, the main products are 200W, 300W, 600W, 1KW, 2KW, 3KW, 5KW, 10KW, 20KW, 30KW, 50KW wind turbines and small solar panels, products are exported to the United States , Germany, Britain, France, Pakistan, Indonesia, Mongolia, has a customers high praise.
Product quality are reliable, the company developing on "technology to survive, quality to develop " and has passed CE, ISO9001 international quality certifications, from the technical design, product manufacturing, product inspection, etc. have been used to maintain a complete management system.
2)Product introduction:
1)Technical conditions
A)Permanent magnetic synchronous style
B)Inverter of 3 phases and 4 lines while 400V between the phases
C)The material of blade and nacelle is FRP while the outside of nacelle should be painted white
D)The surface of tower and base must be hot galvanized and then paint with plastic
E)Inside parts should be paint at least 4 times: base paint (at least two times), F)anticorrosion paint and surface paint
H)Supplying the whole assembly of wind turbine, include base flange and ground anchors (provide the length)
I)Tower height, allowed temperature range, protection degree and Azimuth speed under the rated power,yawing control etc.

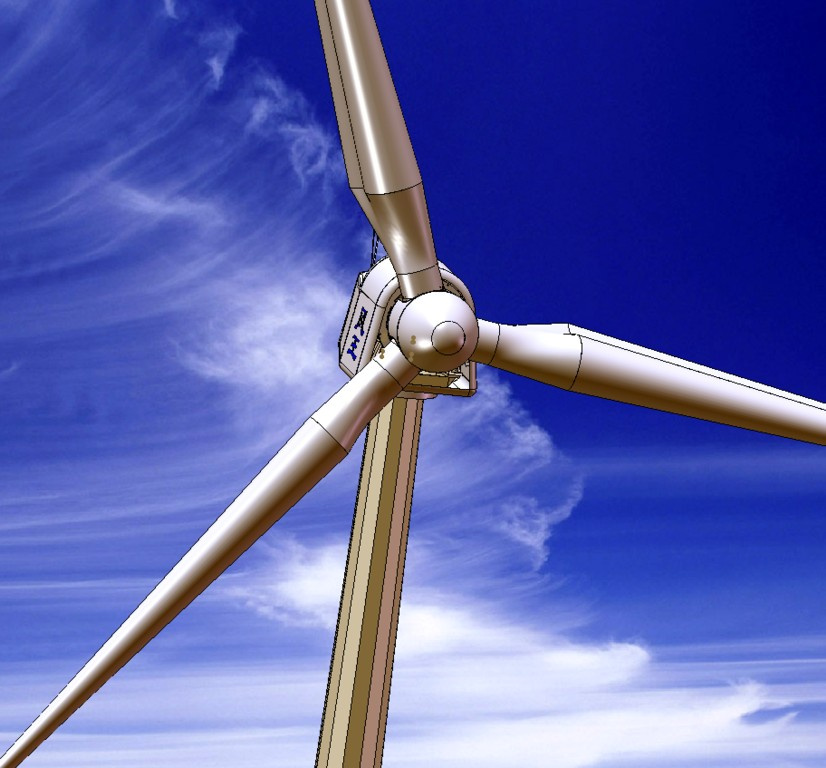

Products intrucion:
Controller and inverter integrated system design
Off-grid control: real-time wind speed testing,wind direcion testing.rotation speed testing. VAP testing etc,automatical PLC human management without manual intervention, wind generator run more smoothly.
On-grid control. Intelligent PLC control,automatic cut-in and out voltage. Reactive power compensation.constant speed and voltage.No power or overload shutdown automatically.
Inverter:powerful self-protection function.overvoltage,under voltage automatic off.output short circuit protection.Pure sine wave. Constant voltage output.
Power |
10000W |
Type of generator |
Permanent-magnet -3phase A.C. |
Blade diameter |
8.0m |
Blade Material: |
FRP (Fiber glass reinforced*3 ) |
rated rotor speed |
200r/min |
rated speed |
10m /s |
rated Power |
10000W |
max Power |
15000w |
output voltage |
DC380V/AC220V/50HZ |
start up wind speed |
3(m/s) |
work speed |
3-20(m/s) |
security wind speed |
40(m/s) |
Rate-limiting mode |
Hydraulic brakes, PLC control |
Dogvane |
Measurement of wind turbine angle agaist wind |
Anemoscope |
Testing real-time wind speed and then transfer the signal to controller |
height of guy cable tower |
12m 159*5 Galvanized seamless steel pipe surface, then spray antiseptic white paint. |
top quality except tower |
600kg |
Total weight(kg) |
1463kg |
output controller system |
Controller , Inverter |
Suggested batteries and it’s capacity |
12V 150AH 30psc
(30PCS 12V150AH) |
can supply power for |
Small Village , air-condition, refrigerator, washing machine , water pump ,electric pan, color TV, lighter, fanner, charger |
We specialize in this field for several years, with the strength of wind turbines, with good quality and pretty competitive price. SHANDONG JIALI NEW ENERGY Co., Ltd founded in 1994, specialized in manufacturing wind turbines, the main products are 200W, 300W, 600W, 1KW, 2KW, 3KW, 5KW, 10KW, 20KW, 30KW, 50KW and 100KW wind turbines and small solar panels, wind solar hybrid systems. Products are exported to the United States, Germany, Britain, France, Pakistan, Indonesia, Mongolia, has a customers high praise.
