wind turbine wind power
Model: PM-500

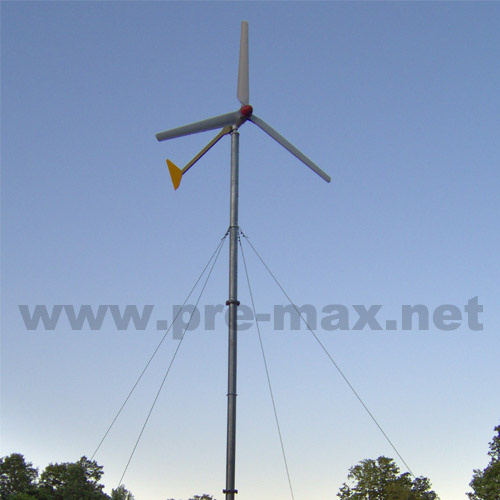

500W Wind Turbine Generator
Rotor diameter: 2, 5m
Blades quantity: 3 pcs
Direction: Always downwind
Blades material: Glass fiber reinforced plastic
Rated output: 500W
Maximum output: 700W
Initial voltage: 28V
Initial wind speed: 3m/s
Nominal wind speed: 8m/s
Stormstand: Up to 35m/s
Wind protection: AutoFurl
Rotor speed: 400 turns per min
Wind turbine type: PMG (on constant magnets)
Working temperature: From -40 to +60 C
Annual average energy production: 1250kWh
Charge control: AIC (automatic intelligent control)
Recommended accumulators: 12V150AH 2PC
Accumulators full charge time: About 8 hours
Weight: 50kgs (without mast)
Pre-Max is a advanced technology company in the industry of wind generator. We specialize in small sized wind generating system, developing solutions for setting up wind power plants. 20 years experience in this industry, starting from making military motor and electrical products. Now the company is focusing wind products, investing in the technology and cooperating with University of Zhejiang keep Pre-Max running the latest technology.
Pre-Max provides various type models of wind generators from 300W to 50KW with the voltage from 12V to 420V. Besides, it also gather the electrical energy transformation and alternating current supply which voltage and hertz is 220V/50HZ, 110V/60HZ, 230V/50HZ.
Also the company offers excellent services with great prices to benefit all overseas clients. Looking forward to cooperating with you.
