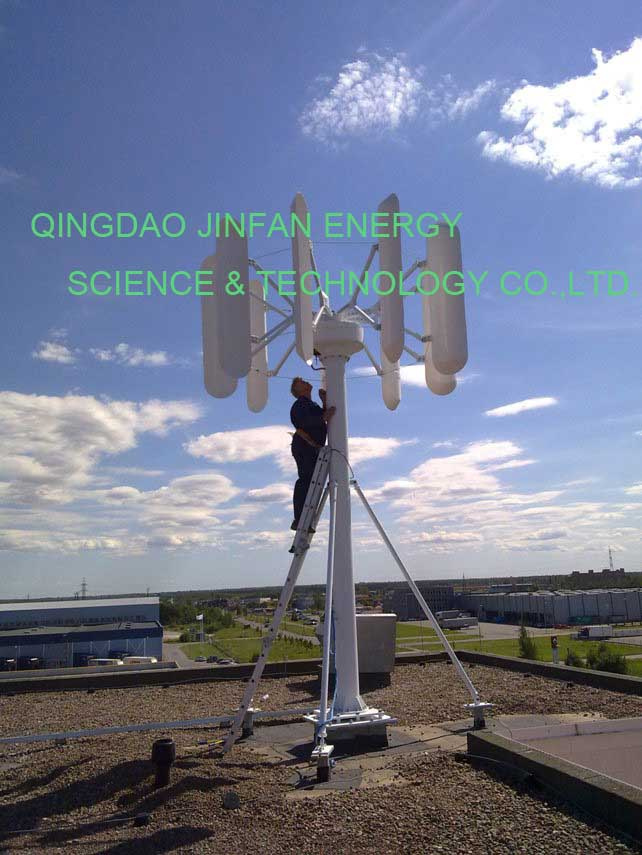

Vertical wind turbine for home use:
Model jfvc-1kw
The diameter of wind wheel 2.5m
Blades number 5
Blades length 1650mm
Rated rotate speed 55(r/min)
Rated wind speed 10m/s
Start up wind speed 2.5m/s
Working wind speed 3-25(m/s)
Security wind speed 50m/s
Rated power 1kw
The max power 1.5kw
Output voltage 24v/48v
The height of tower 8m
Output control system charger control, inverter
Necessary battery 12v100ah, 4PCS.
Qingdao Jinfan Energy Science & Technology Co., LTD. is a professional manufacturer of wind turbine which located at Qingdao, China. We have strong technical research and development team.
At present, our main products are horizontal axis wind turbine, vertical axis wind turbine, wind and solar hybrid system, permanent magnet generator. Our products have been exported to Europe, America, Australia etc. more than thirty countries and areas, and have been got good reputation from many customers.
We adhering to the selling concept of "sales is not the end, service has just started" , and provide the good after-sales service for you.
We are engaged in an unlimited prospect of the green energy industry, the staffs of company with the full passion and sincere service to look forward to cooperate and develop together with you.
