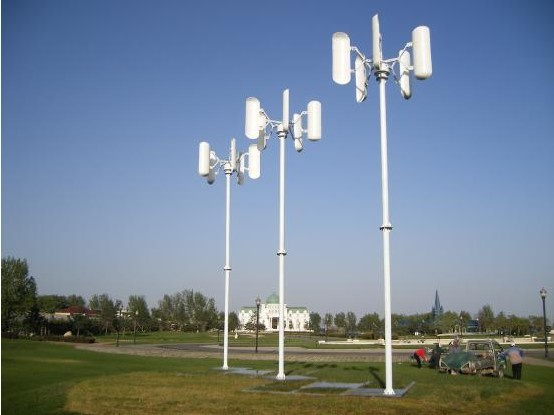

vertical axis wind generator / wind turbine
Model: JFVC-300W,JFVC-500W,JFVC-1KW,JFVC-2KW,JFVC-3KW,JFVC-5KW
Model | JFVC-2KW |
| diameter of wind wheel (m) | 2.4 |
| material of blades | Fiberglass-Reinforced Plastics |
| blades number | 5 |
| blades length(mm) | 2160 |
| blades width(mm) | 450 |
| RPM(r/min) | 50 |
| rated wind speed(m/s) | 14 |
| start up wind speed(m/s) | 2.5 |
| working wind speed(m/s) | 3-25 |
| survival wind speed(m/s) | 40 |
| generator style | 3-phase AC PMG |
| protection grade of generator | IP54 |
| material of generator case | cast iron / aluminium |
| rated power(w) | 2000 |
| the max. power(w) | 2500 |
| rated voltage (VDC) | 48/96/120 |
| the height of tower(m) | 8 |
| guy cable tower type(mm) | 114*6 |
| controller and inverter | advanced wind & solar hybrid controller and pure sine wave inverter / on grid |
| battery reference | 12v150ah 4pcs/12V100ah 8pcs
|
Qingdao Jinfan Energy Science & Technology Co., LTD. is a professional manufacturer of wind turbine which located at Qingdao, China. We have strong technical research and development team.
At present, our main products are horizontal axis wind turbine, vertical axis wind turbine, wind and solar hybrid system, permanent magnet generator. Our products have been exported to Europe, America, Australia etc. more than thirty countries and areas, and have been got good reputation from many customers.
We adhering to the selling concept of "sales is not the end, service has just started" , and provide the good after-sales service for you.
We are engaged in an unlimited prospect of the green energy industry, the staffs of company with the full passion and sincere service to look forward to cooperate and develop together with you.
