| Price: | US $ 8500/Piece |
|---|---|
| Trade Terms: | by Sea |
| Min Order: | 1 |
| Power(w) | 5000 |
Rated wind speed (m/s) |
11 |
|
Rotor diameter (m) |
4 |
Start-up wind speed (m/s) |
3.2 |
|
Height of blade (m) |
3.7 | Range of working wind speed(m/s) | 3.2-25 |
| Material of blades and numbers | Glass Fiber Reinforced Plastic/5 |
Survival wind speed (m/s) |
50 |
|
Rated rotor speed (m/s) |
100r/min | Output Voltage | AC220/380V |
| Speed regulation method | Electromagnetic control | Stop method | Electromagnetic brake |
| Wind energy utilized coeffeicent | 40%-45% | Sweep wind area(m2) | 12.56 |
| Range of working temperature | -45-60 | Suggested supporting battery | 18pcs12v120ah |
| Top weight (kg) | 485 | Tower type and height | Free standing tower/8m |

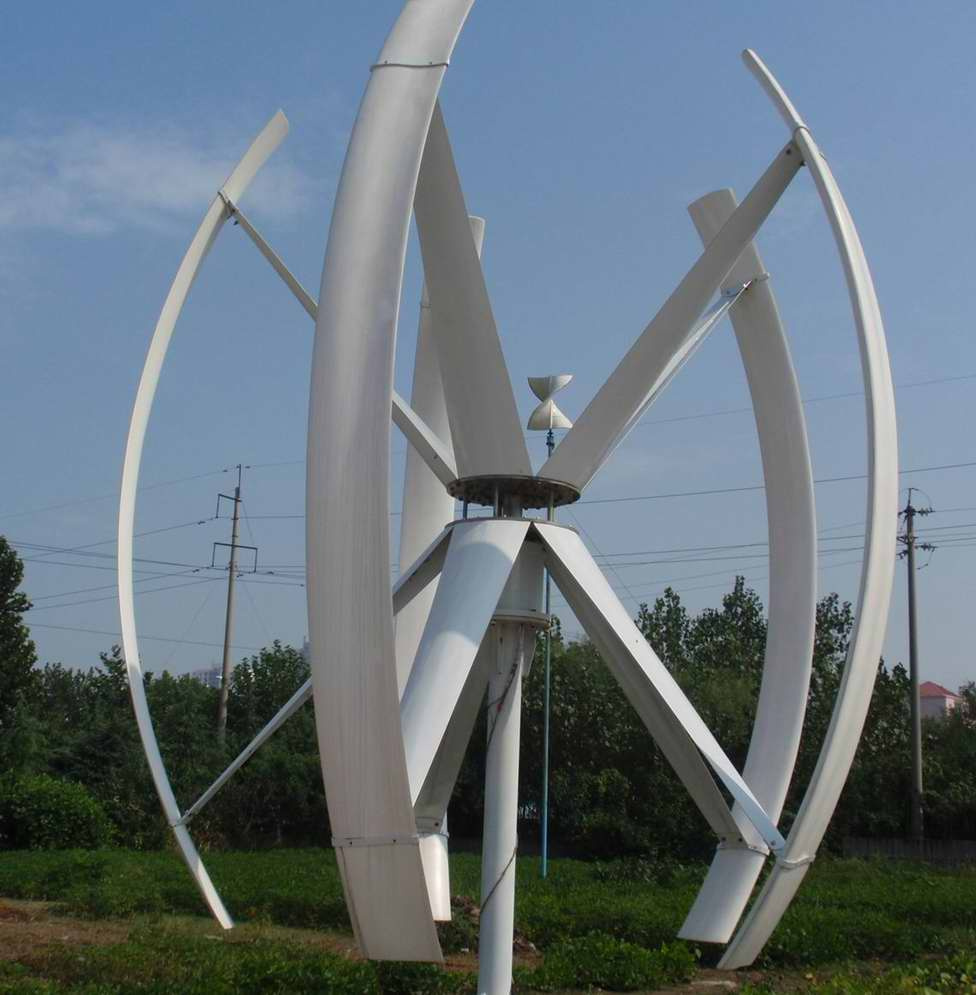

| Prod Model: | ARV-H-5KW |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Blades: | 5PCS |
| Generator: | Maglev Structure 3phase Pmg |
| Number Of Blade: | Multiple-Blade |
| Stress Way Of Blade: | Lift Force |
| Rotating Shaft: | Vertical |
