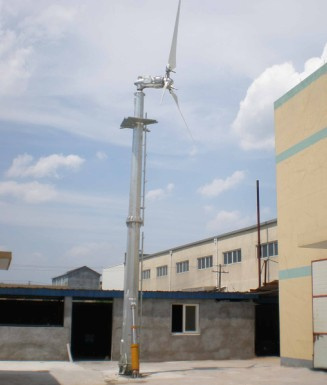

5KW home use wind turbine generator
Low noise, stable and long life wind turbine
30% more electricity produced than traditional wind turbines
CE and RoHS approved
Double brake systems
Passive pitch controll downwind type
|
5000W Technical Parameter |
|
Rated powe(kW) |
5 |
Material of the blades |
Fiberglass-Reinforced Plastic |
|
Rated wind speed(m/s) |
11 |
Speed regulation method |
Adjustable-Pitch |
|
Startup wind speed(m/s) |
3 |
Generator style |
3-phase AC PM |
|
Working wind speed(m/s) |
4~25 |
Tower height (m) |
8 |
|
Survived wind speed(m/s) |
50 |
Stop method |
Sweepback
Adjustable-Pitch |
|
Rated rotate speed (r/min) |
240 |
Main machine weight(kg) |
340 |
|
Rotor Diameter(m) |
5.6 |
Guyed tower weight(kg) |
450 |
|
Working voltage(v) |
DC240V/AC220V |
Freestanding tower weight (kg) |
600 |
Annual power generation
(KWH) |
7500/22500 |
We are a wind generator manufacturer located in Qingdao China, now our main products catalogue is 200W-50KW for both on-grid and off-grid two types of them. For each wind generator parts are all designed and manufactured by ourselves. And they are easy to operate, convient, efficient and power-saving. Now all of our products are spld outside our country, such as UK, Russia, Mogolia, Indonisia, Ukraine, Spain, Portugal, Mexico etc. If you are interested in any of our product, please let us know. The requirements of the clients are always draw our attention. Also you can enter our web.
