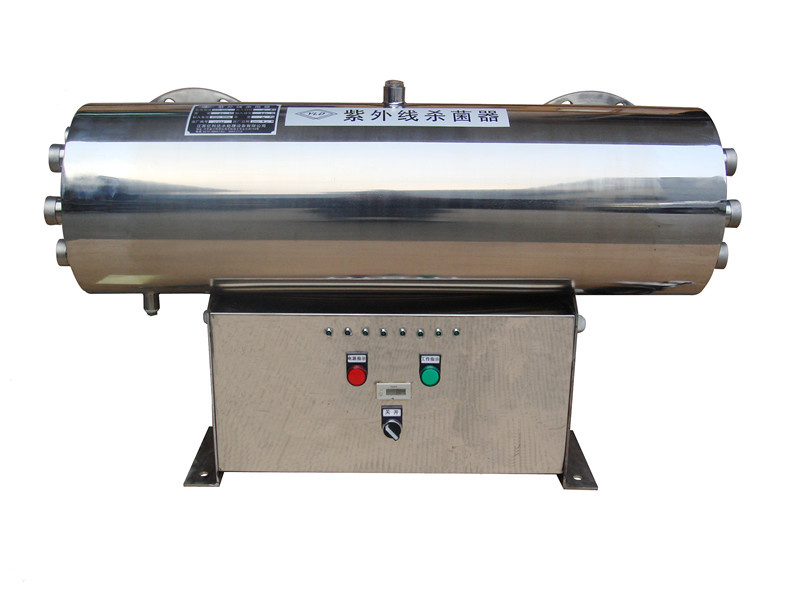

UV Water Purification Water treatment SUS304 Housing
Advantages of UV
1, Food, beverage, beer, edible oil, all kinds of canned goods, cold drinks products etc. using water
disinfection
2, Electrons industry ultra pure water, military camps, outdoor water supply system
3, Hospital, lab, high content causative agent waste water disinfection
4, Residents building, housing estate, office building, hotel, restaurant, waterworks disinfection
5,Aquatic product processing purification, shellfish purification, fish processing purification etc.
6, Town wastewater sterilization
7, Swimming pool, other entertainment water sterilization
8, Thermal power, industrial cooling water, central air conditioner system cooling water disinfection
9, Biology, chemical pharmaceutical, cosmetic using water disinfection
10, Seawater, freshwater seeding, aquaculture water, total processing water can reach 200,000 tons per
day
11,Agricultural water, greenhouse water, irrigation disinfection etc.

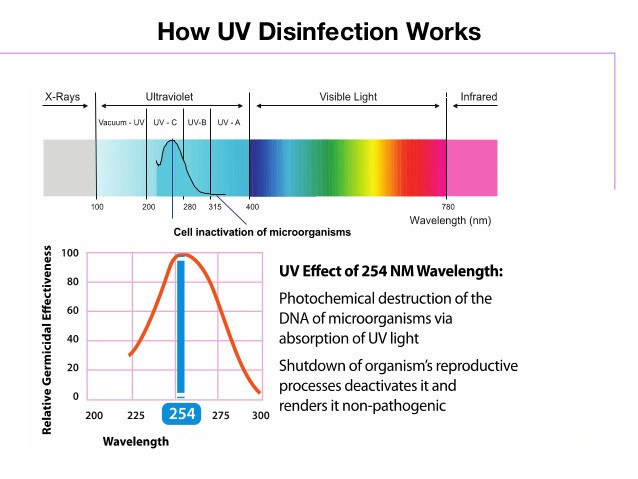

What does a UV sterilizer do?
A UV sterilizer is used to control infections by stopping the spread of microorganisms from one fish/coral/invertebrate to another through the water. It is also used in pond applications to control free-floating algae. When operated correctly, free-floating microorganisms will be killed by the UV light. Note that the organisms must be in the water that flows to the UV sterilizer. The UV light has no residual effect and will not kill organisms attached to fish (e.g., adult stage of ich) or rocks (e.g., algae).
| model | Processing capacity (Ton/Hour) | power (W) | inlet and outlet (inch) | working pressure (Kg/cm 2 ) | malfunction alert for UV lamp | reactor dimension (cm) L×W×H | dimension of panel(cm) | anchor bolt (cm) | overall weight (Kg) |
| YLCn-005 | 0.3 | 16 | 1/2" | 6 | matched | 30×6×11 | 5 | ||
| YLCn-008 | 1 | 25 | 1/2" | 6 | matched | 47×6.3×11 | 10 | ||
| YLCn-050 | 2 | 40 | 1" | 6 | matched | 100×9×20 | Φ8.9×25 (diameter×length) | 69×4×Φ1 | 25 |
| YLCn-150 | 6 | 80 | 1+1/4" | 6 | matched | 100×11×23 | 69×4×Φ1 | 30 | |
| YLCn-200 | 8 | 120 | 1+1/2" | 6 | matched | 100×15.9×30 | Φ8.9×45 (diameter×length) | 69×7×Φ1 | 35 |
| YLCn-300 | 12 | 160 | 2" | 6 | matched | 100×15.9×32 | 69×7×Φ1 | 40 | |
| YLC-050 | 2 | 40 | DN25/1" | 6 | matched | 100×8.9×30 | 25×30×12 (L×H×w) | 60×4×Φ1 | 45 |
| YLC-150 | 6 | 80 | DN32/1 1/4 " | 6 | matched | 100×10.8×30 | 60×4×Φ1 | 50 | |
| YLC-200 | 8 | 120 | DN40/1 1/2 " | 6 | matched | 100×15.9×40 | 60×7×Φ1 | 60 | |
| YLC-300 | 12 | 160 | DN50/2" | 6 | matched | 100×15.9×40 | 60×7×Φ1 | 70 | |
| YLC-360 | 15 | 200 | DN65/2 1/2" | 6 | matched | 100×15.9×40 | 50×78×25 (L×H×W) | 60×7×Φ1 | 120 |
| YLC-500 | 20 | 240 | DN65/2 1/2" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 130 | |
| YLC-600 | 25 | 280 | DN80/3" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 140 | |
| YLC-700 | 30 | 320 | DN100/4" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 150 | |
| YLC-1000 | 40 | 360 | DN100/4" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 160 | |
| YLC-1200 | 50 | 400 | DN125/5" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 180 | |
| YLC-1500 | 60 | 420 | DN150/6" | 6 | matched | 170×27.3×57 | 120×16×Φ1.4 | 210 | |
| YLC-2000 | 80 | 560 | DN150/6" | 6 | matched | 170×27.3×57 | 120×16×Φ1.4 | 220 | |
| YLC-2500 | 100 | 700 | DN150/6" | 6 | matched | 170×27.3×57 | 60×128×30 (W×H×T) | 120×16×Φ1.4 | 275 |
| YLC-3000 | 125 | 840 | DN150/6" | 6 | matched | 173×27.3×57 | 120×16×Φ1.4 | 300 | |
| YLC-4000 | 150 | 1120 | DN200/8" | 6 | matched | 173×32.5×65 | 120×20×Φ1.6 | 325 | |
| YLC-5000 | 200 | 1400 | DN200/8" | 6 | matched | 173×37.7×72 | 120×22×Φ1.6 | 350 | |
| YLC-7000 | 300 | 2100 | DN250/10" | 6 | matched | 175×42.6×80 | 120×24×Φ2.0 | 400 | |
| YLC-10K | 400 | 2520 | DN250/10" | 6 | matched | 176×52.9×95 | 60×150×40 (W×H×T) | 120×28×Φ2.2 | 475 |
| YLC-15K | 600 | 3080 | DN300/12" | 6 | matched | 176×78×110 | 120×32×Φ2.4 | 600 | |
| YLC-20K | 800 | 3920 | DN350/14" | 6 | matched | confirmed | confirmed | confirmed | confirmed |
| YLC-25K | 1000 | 4760 | DN350/14" | 6 | matched | confirmed | confirmed | confirmed |
In which types of systems should UV sterilizers be used and what are the benefits?
A UV sterilizer may be used in any aquarium, however, in smaller aquariums (less than 24 gallons), the cost of the unit may make it impractical. UV sterilizers are most helpful in multiple tank systems that share a common filter. In a single tank system, they are beneficial in controlling the spread of an infectious disease if one occurs. This is especially true in heavily stocked tanks and those with large amounts of live rock and corals that could make catching and isolating a diseased fish difficult, or the use of certain medications contraindicated. Disease control is especially important when adding new fish to an established aquarium, since 98% of the hobbyists do not use a quarantine aquarium.
In ponds, UV sterilizers are one of the best ways to control free-floating algae, allowing the pond owner to see and enjoy the fish. The UV sterilizer will also kill free-floating bacteria in the pond water.
FAQ:
| Prod Model: | YLC-700 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bactericidal Efficienc: | 98% Kill Total Coliforms |
| Material: | Stainless Steel Ss304, Ss316 |
| Flow Rate: | 200m3/H |
| Inlet And Outlet: | Dn200mm |
| Lifespan Of UV Lamp: | 9000-12000 Hours |
| Interface Type: | Flange or Thread |
| Alert System For Lamp: | One Set |
| System Working Pressure Resistance: | (0.6 MPa)6kg/Cm2 |
| Raw Water Supplying: | Swimming Pool |
| Brand Of Ballast: | Beasun |
