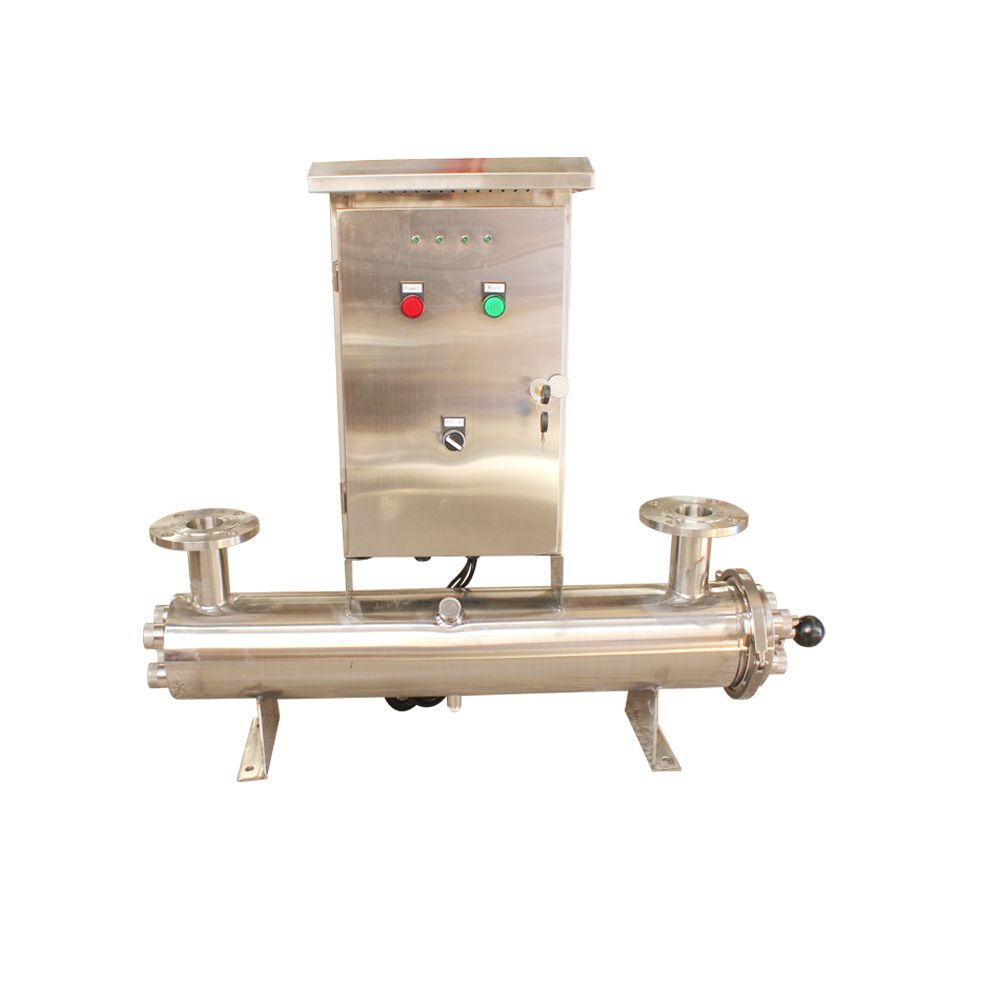

Ultraviolet Water Sterilizer/ Ultraviolet Water Purification/ UV Sterilizer

Ultraviolet Water Sterilizer/ Ultraviolet Water Purification/ UV Sterilizer
Price: US $ 150-6500/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Ultraviolet Water Sterilizer/ Ultraviolet Water Purification/ UV Sterilizer

 Residential and Commercial Ultraviolet Water Sterilizer Systems are specifically designed to meet the demanding microorganism control. These microorganisms can range from bacteria and viruses to algae and protozoa. A major advantage of UVC germicidal treatment is that it is capable of disinfecting water faster than chlorine without cumbersome retention tanks and harmful chemicals to your drinking water.




Advantages:


No chemicals added to the water supply - no byproducts, (i.e. chlorine + organics = trihalomethanes).
Environmentally and user friendly, no dangerous chemicals to handle or store, no risks of overdosing.
Easy installation, only two water connections and a power connection.
No change in taste, odor, pH or conductivity nor the general chemistry of the water.
More effective against viruses than chlorine.
Extremely economical, hundreds of gallons may be treated for each penny of operating cost.
Immediate treatment process, no need for holding tanks, long retention times, etc.
Automatic operation without special attention or measurement, operator friendly.
Simplicity and ease of maintenance, periodic cleaning, (if applicable), and annual lamp replacement, no moving parts to wear out.
No handling of toxic chemicals, no need for specialized storage requirements.
Low initial capital cost as well as reduced operating expenses when compared with similar technologies such as ozone, chlorine, etc.




UV Disinfection Systems Application

1. Sterilization of domestic water, secondary water supply, direct drinking water, purified water and mineral water plant;
2. Sterilization of swimming pools, landscape water and circulating cooling water;
3. Sterilization of industrial water such as in food, cosmetic and pharmaceutical industry, etc.;
4. Sterilization before sewage discharge;
5. Sterilization of aquatic products and aquatic breeding industry;


Principle of Operation
Ultraviolet disinfection systems typically utilize thin cylindrical bulbs capable of generating narrow band wavelength UV light in the 254 nm range, placed in close proximity to high-purity glass tubes through which the water flows. The unit must be sized to provide adequate dosage at the specified flowrate. The water to be treated must be sufficiently free of turbidity (sediment), iron, manganese and any colorant that could affect transmission of the 254 nm UV light. Manufacturers' specifications should be consulted.





Technical parameters:

modelProcessing capacity (Ton/Hour)power (W) inlet and outlet
(inch)
working pressure (Kg/cm 2 )malfunction alert for UV lampreactor dimension (cm) L×W×Hdimension of panel(cm)anchor bolt  (cm)overall weight (Kg)
YLCn-0050.3161/2"6matched30×6×11

5
YLCn-0081251/2"6matched47×6.3×11

10
YLCn-0502401"6matched100×9×20Φ8.9×25
(diameter×length)
69×4×Φ125
YLCn-1506801+1/4"6matched100×11×2369×4×Φ130
YLCn-20081201+1/2"6matched100×15.9×30Φ8.9×45
(diameter×length)
69×7×Φ135
YLCn-300121602"6matched100×15.9×3269×7×Φ140
YLC-050240DN25/1"6matched100×8.9×3025×30×12
(L×H×w)
60×4×Φ145
YLC-150680DN32/1 1/4 "6matched100×10.8×3060×4×Φ150
YLC-2008120DN40/1 1/2 "6matched100×15.9×4060×7×Φ160
YLC-30012160DN50/2"6matched100×15.9×4060×7×Φ170
YLC-36015200DN65/2 1/2"6matched100×15.9×4050×78×25
(L×H×W)
60×7×Φ1120
YLC-50020240DN65/2 1/2"6matched100×21.9×5060×11×Φ1.2130
YLC-60025280DN80/3"6matched100×21.9×5060×11×Φ1.2140
YLC-70030320DN100/4"6matched100×21.9×5060×11×Φ1.2150
YLC-100040360DN100/4"6matched100×21.9×5060×11×Φ1.2160
YLC-120050400DN125/5"6matched100×21.9×5060×11×Φ1.2180
YLC-150060420DN150/6"6matched170×27.3×57120×16×Φ1.4210
YLC-200080560DN150/6"6matched170×27.3×57120×16×Φ1.4220
YLC-2500100700DN150/6"6matched170×27.3×5760×128×30
(W×H×T)

120×16×Φ1.4275
YLC-3000125840DN150/6"6matched173×27.3×57120×16×Φ1.4300
YLC-40001501120DN200/8"6matched173×32.5×65120×20×Φ1.6325
YLC-50002001400DN200/8"6matched173×37.7×72120×22×Φ1.6350
YLC-70003002100DN250/10"6matched175×42.6×80120×24×Φ2.0400
YLC-10K4002520DN250/10"6matched176×52.9×9560×150×40
(W×H×T)
120×28×Φ2.2475
YLC-15K6003080DN300/12"6matched176×78×110120×32×Φ2.4600
YLC-20K8003920DN350/14"6matchedconfirmed confirmedconfirmedconfirmed
YLC-25K10004760DN350/14"6matchedconfirmedconfirmedconfirmed



Q. Does the water have to sit in the UV sterilizer to be disinfected?
A. No. If the system is sized correctly, the water is disinfected as it flows through.

Q. What if the water flows faster than is allowed through the system?
A. If the flow rate exceeds the design flow rate of the UV sterilizer, then there is a possibility that the water will not be properly disinfected. It is important to use a flow restrictor so that the flow rate cannot be exceeded.

Q. How long does the lamp last?
A. The lamps last approximately 10,000 hours. That is why we recommend replacement approximately every 12 - 14 months of continuous operation. After this period, the lamp itself becomes solarized and blocks the rays form entering the water.

Q. Are these systems bigger energy users?
A. No. The 12 gallon per minute model, for instance uses only 39 watts, about half the amount an ordinary light bulb uses.

Q. My water is sometimes cloudy. Is that a problem?
A. Yes. The water that enters the ultraviolet sterilizer must be absolutely clear and have a turbidity of less than 1 NTU. If your water is cloudy, then it must be pretreated.

Prod Model: YLC-3000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bactericidal Efficienc: 98% Kill Total Coliforms
Material: Stainless Steel Ss304, Ss316
Medium Material: PP (Propene Polymer)
Lifespan Of UV Lamp: 9000-12000 Hours
Interface Type: Flange or Thread
Flow Rate: 0.3--1000 Ton/Hour
Alert System For Lamp: One Set
System Working Pressure Resistance: (0.6 MPa)6kg/Cm2
Raw Water Supplying: Running Water
Brand Of Ballast: Beasun
Jiangsu YLD Water Processing Equipment Co., Ltd. is a high-tech enterprise, specialized in the research, development, design, manufacture, installation, technical consultation and personnel training.
We mainly produce electronic scale removal, UV sterilization, filtration, softening and cyclone grit removal technology and equipment. With strong technical force and rich experience, our company strictly implements ISO9001 system in the plan and management. "High technology leads to market development" is our basic concept.
We have extensively cooperated with domestic key universities, research institutions and foreign professional manufacturers, such as DOW (Dow) Chemical Co., Ltd., HYDRANAUTICS (Hydranautics) Company, Company (a professional manufacturer of multi-stage pumps), MILTONROY (Milton) Corporation (a metering pump manufacturer), the US Soft Controller KINETICO and OSMONICS, We have also fully introduced advanced technology. Thus, our technology is always in the leading domestic level. Over the years, our company has specialized in a variety of water treatment equipment for food, beverage, pharmaceutical, hospital, precision electronic, fine chemical, electricity, painting and surface cleaning industries.
Our "LYD" high-quality products at reasonable prices and perfect after-sales services have won great trust from worldwide customers,
We are willing to cooperate with the friends from all over the world and creat fine future together!
