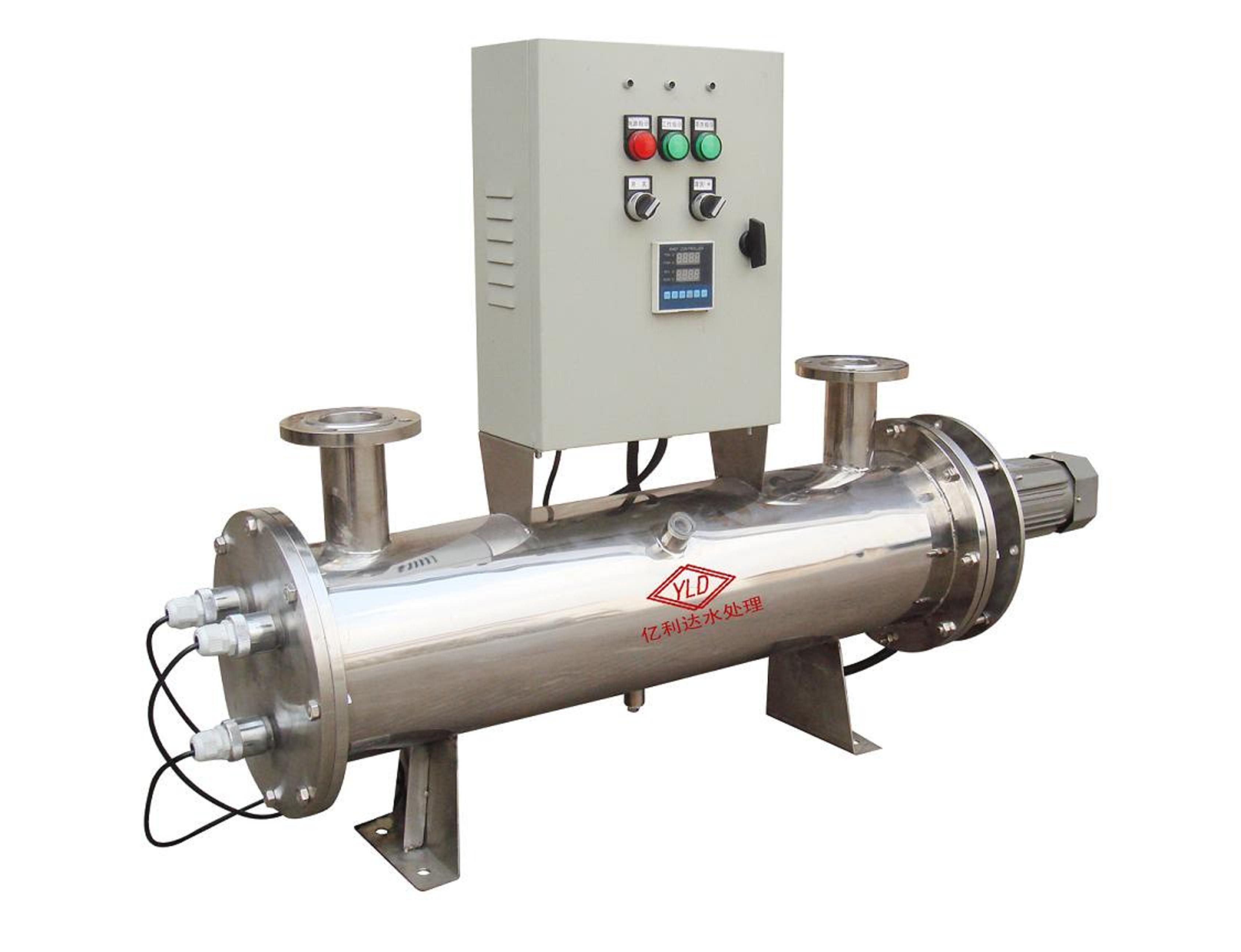

Ultraviolet Light Disinfection Vwater Treatment Systems

Ultraviolet light disinfection vwater treatment systems




Features:
EFFECTIVE - Virtually all microorganisms are susceptible to disinfection.
ECONOMICAL - Hundreds of gallons can be purified for operating cost.
SAFE - No danger of overdosing, no addition of dangerous chemicals.
FAST - Water is ready for use as soon as it leaves the purifier - no further contact time required.
EASY - Simple installation and maintenance. Compact units require minimum space.
AUTOMATIC - Continuous or intermittent disinfection without special attention or measurement.
NO CHEMICALS - No chlorine taste or corrosion problems.
VERSATILE - Capacities available from two to thousands of gallons per minute (GPM)





UV Applications
Well Water
Many rural homeowners who draw their water from private wells assume that their water is safe. Unless the water has been tested, however, there is no way to know whether it contains potentially harmful pathogens. A coliform count indicates that a well is contaminated. Faulty sewage or manure systems or field run-off can be sources of the contamination.
Many livestock producers wish to protect their animals from poor water quality and install water treatment systems that incorporate UV for disinfection.
Surface Water
In many rural regions, homes and cottages draw their water directly from lakes or streams, which collect potentially harmful storm run-off. Add that many animals live in these lakes and streams, and the likelihood of microbial contamination in these supplies is high. Again, the water can be tested, and a coliform count will indicate whether the water should be disinfected.
As with any water supply, the level of contamination can vary throughout the seasons. Water is most likely to be contaminated with microorganisms during rainy season when levels are high and run-off peaks. Consequently, the rainy season is an ideal time to test your water.
Testing private water supplies is typically necessary before selling a rural home. But often only then do water contamination problems become known. If a problem does exist, vendors must often prove that the water is safe before the prospective buyers will take ownership. Installing an ultraviolet water disinfection system is an effective, straightforward way to solve these types of water contamination problems.
Public Water Supplies
Even people in communities served by municipally treated water are installing UV systems. Concerns over the health affects of chlorine have prompted many families to de-chlorinate their water. Some of these families use UV systems to disinfect their de-chlorinated water. Others install UV systems to back up the municipal treatment process.
Commercial Water
Restaurants, hotels, resorts, and campgrounds must supply safe water to their guests. Many of these establishments now employ UV disinfection systems because they are simpler and easier to handle than chlorination systems.
As well, the sick and elderly are more susceptible to waterborne pathogens than are the young and healthy. Consequently, hospitals and nursing homes must keep their water free from microbial contamination. The medical industry also incorporates UV into essential processes such as dialysis.
Process Water for Industry
Factories and laboratories with low water use but high quality requirements can take advantage of UV disinfection systems to treat their water. Some processes are unable to tolerate chlorine, and the food and beverage industry wants to eliminate the odour and taste of chlorine from their products.






What does a UV sterilizer do?
A UV sterilizer is used to control infections by stopping the spread of microorganisms from one fish/coral/invertebrate to another through the water. It is also used in pond applications to control free-floating algae. When operated correctly, free-floating microorganisms will be killed by the UV light. Note that the organisms must be in the water that flows to the UV sterilizer. The UV light has no residual effect and will not kill organisms attached to fish (e.g., adult stage of ich) or rocks (e.g., algae).






Technical parameters:

model	Processing capacity (Ton/Hour)	power (W)	inlet and outlet (inch)	working pressure (Kg/cm 2 )	malfunction alert for UV lamp	reactor dimension (cm) L×W×H	dimension of panel(cm)	anchor bolt  (cm)	overall weight (Kg)
YLCn-005	0.3	16	1/2"	6	matched	30×6×11			5
YLCn-008	1	25	1/2"	6	matched	47×6.3×11			10
YLCn-050	2	40	1"	6	matched	100×9×20	Φ8.9×25 (diameter×length)	69×4×Φ1	25
YLCn-150	6	80	1+1/4"	6	matched	100×11×23		69×4×Φ1	30
YLCn-200	8	120	1+1/2"	6	matched	100×15.9×30	Φ8.9×45 (diameter×length)	69×7×Φ1	35
YLCn-300	12	160	2"	6	matched	100×15.9×32		69×7×Φ1	40
YLC-050	2	40	DN25/1"	6	matched	100×8.9×30	25×30×12 (L×H×w)	60×4×Φ1	45
YLC-150	6	80	DN32/1 1/4 "	6	matched	100×10.8×30		60×4×Φ1	50
YLC-200	8	120	DN40/1 1/2 "	6	matched	100×15.9×40		60×7×Φ1	60
YLC-300	12	160	DN50/2"	6	matched	100×15.9×40		60×7×Φ1	70
YLC-360	15	200	DN65/2 1/2"	6	matched	100×15.9×40	50×78×25 (L×H×W)	60×7×Φ1	120
YLC-500	20	240	DN65/2 1/2"	6	matched	100×21.9×50		60×11×Φ1.2	130
YLC-600	25	280	DN80/3"	6	matched	100×21.9×50		60×11×Φ1.2	140
YLC-700	30	320	DN100/4"	6	matched	100×21.9×50		60×11×Φ1.2	150
YLC-1000	40	360	DN100/4"	6	matched	100×21.9×50		60×11×Φ1.2	160
YLC-1200	50	400	DN125/5"	6	matched	100×21.9×50		60×11×Φ1.2	180
YLC-1500	60	420	DN150/6"	6	matched	170×27.3×57		120×16×Φ1.4	210
YLC-2000	80	560	DN150/6"	6	matched	170×27.3×57		120×16×Φ1.4	220
YLC-2500	100	700	DN150/6"	6	matched	170×27.3×57	60×128×30 (W×H×T)	120×16×Φ1.4	275
YLC-3000	125	840	DN150/6"	6	matched	173×27.3×57		120×16×Φ1.4	300
YLC-4000	150	1120	DN200/8"	6	matched	173×32.5×65		120×20×Φ1.6	325
YLC-5000	200	1400	DN200/8"	6	matched	173×37.7×72		120×22×Φ1.6	350
YLC-7000	300	2100	DN250/10"	6	matched	175×42.6×80		120×24×Φ2.0	400
YLC-10K	400	2520	DN250/10"	6	matched	176×52.9×95	60×150×40 (W×H×T)	120×28×Φ2.2	475
YLC-15K	600	3080	DN300/12"	6	matched	176×78×110		120×32×Φ2.4	600
YLC-20K	800	3920	DN350/14"	6	matched	confirmed	confirmed	confirmed	confirmed
YLC-25K	1000	4760	DN350/14"	6	matched	confirmed		confirmed	confirmed

In which types of systems should UV sterilizers be used and what are the benefits?
A UV sterilizer may be used in any aquarium, however, in smaller aquariums (less than 24 gallons), the cost of the unit may make it impractical. UV sterilizers are most helpful in multiple tank systems that share a common filter. In a single tank system, they are beneficial in controlling the spread of an infectious disease if one occurs. This is especially true in heavily stocked tanks and those with large amounts of live rock and corals that could make catching and isolating a diseased fish difficult, or the use of certain medications contraindicated. Disease control is especially important when adding new fish to an established aquarium, since 98% of the hobbyists do not use a quarantine aquarium.
In ponds, UV sterilizers are one of the best ways to control free-floating algae, allowing the pond owner to see and enjoy the fish. The UV sterilizer will also kill free-floating bacteria in the pond water.


FAQ:
Q. How do ultraviolet ("UV") sterilizers work?
A. UV sterilizers work by exposing water to powerful germicidal ultraviolet light. DNA and protein links in bacteria are destroyed by exposure to this light.

Q. Does the water become radioactive by this radiation?
A. No. No radiation residual or any chemical residual is left in the water as a result of the UV rays.

Q. Do these systems come in different sizes?
A. Yes. The size of the systems is directly proportional to the flow rate of the water in gallons per minute. The higher the flow rate, the larger the system and lamp.

Q. Does the water have to sit in the UV sterilizer to be disinfected?
A. No. If the system is sized correctly, the water is disinfected as it flows through.

Q. What if the water flows faster than is allowed through the system?
A. If the flow rate exceeds the design flow rate of the UV sterilizer, then there is a possibility that the water will not be properly disinfected. It is important to use a flow restrictor so that the flow rate cannot be exceeded.

Q. How long does the lamp last?
A. The lamps last approximately 10,000 hours. That is why we recommend replacement approximately every 12 - 14 months of continuous operation. After this period, the lamp itself becomes solarized and blocks the rays form entering the water.

Q. Are these systems bigger energy users?
A. No. The 12 gallon per minute model, for instance uses only 39 watts, about half the amount an ordinary light bulb uses.

Q. My water is sometimes cloudy. Is that a problem?
A. Yes. The water that enters the ultraviolet sterilizer must be absolutely clear and have a turbidity of less than 1 NTU. If your water is cloudy, then it must be pretreated.
