Our company supply high quality: Grid tie inverter, Grid-connected inverter, Power inverter, On grid inverter, Solar inverter, Solar on grid inverter, Wind on grid inverter, PV inverter, Hybrid inverter. And high efficiency: Grid tie inverter, Grid-connected inverter, Power inverter, On grid inverter, Solar inverter, Solar on grid inverter, Wind on grid inverter, PV inverter, Hybrid inverter And low price: Grid tie inverter, Grid-connected inverter, Power inverter, On grid inverter, Solar inverter, Solar on grid inverter, Wind on grid inverter, PV inverter, Hybrid inverter.
1. Using the fifth generation lntelligent power module from mitsubishi, improve the system efficiency
2. High conversion efficiency
3. Advanced technology for maximum power point tracking (MPPT)
4. MPPT efficiency (>97%)
5. Wide input voltage range
6. High reliability due to perfect protection function
7. Powerful communication interfaces
8. Easy operation and installation
9. Easy-to-set multilingual LCD display
10. Adjustable protection/operation parameters.
|

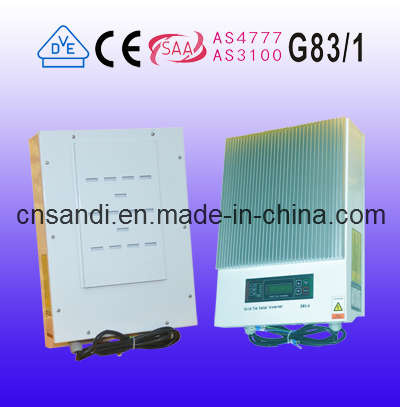

SDS(3kw) Single phase |
|
DC Input |
MPPT Voltage range |
DC100-500V |
|
Rated DC Voltage |
200-400V |
|
Control System |
MPPT |
|
AC Output |
Output Power |
3000W |
|
Rated Voltage |
(Grid-voltage) AC220± 13V |
|
Normal Grid Frequency |
50/60Hz |
|
Number of phases |
Single-phase, 2 wires |
|
Power Factor |
> 0.95 |
|
Current THD |
At raged power and in the sine wave < 5% |
|
Control system |
PWM |
|
Anti-islanding |
≤ 0.5 sec. |
|
Output Overtload |
100% |
|
Max. Efficiency |
97% |
|
Euro Efficiency |
96.4% |
|
Structure |
Cooling MEthod |
Natrual cooling |
|
Protection Degree |
IP65 |
|
Noise |
< 25dB |
|
WxHxD |
360x525x110mm |
|
Weight |
18kg |
|
Data Interfaces |
External RS 232C/RS485 |
|
Web module (Option) |
RS 232C to TCP/IP |
|
Display |
LCD |
|
Environment |
Have on corrosion gas, flammable gas, oil mist, dust Etc. |
|
Stored temperature |
-20º C~65º C |
|
Operation temperature range |
-20º C~40º C(50º C) |
|
Relative Humldity |
0~100% (Do not wet with dew) |
|
Protection(Inverter) |
Input overvoltage, output short circuit, overload overheat, output DC component |
|
Protection (Grid) |
Anti-islandint(IEEE1547), over/under voltage of grid, over/under frequency of grid |
