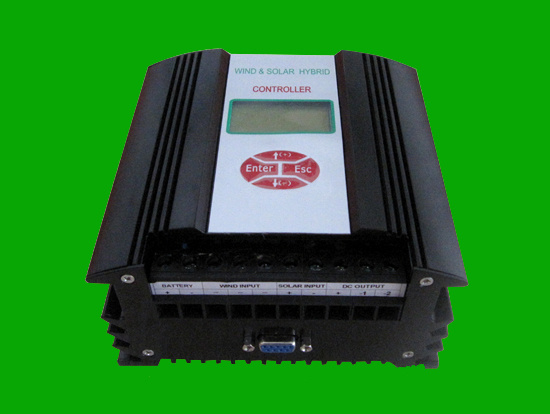

Perfect protection and alarming function, thus the system has a high stability
LCD display function, visually display all operation parameters
Voltage-limiting and current-limiting charging mode, ensures battery Two DC Load output, light-control, time-control, constant output, and multiple output control mode selection
PWM stepless unloading mode, which burn the excess power in dump load, making the battery charging in the best status
A multiple communication interface selection, realising PC monitoring function. The standard mode is RS232 communication, and other optional model RS485 / Ethernet/GPRS etc
Design of high quality aluminum alloy appearance, with small size and good cooling effect
Optional wind turbine low-voltage charge function, making full use of low wind power
Optional by-pass function ensures the continuity and stability of system
Operation
Optional multiple control system function, real-time monitoring the multiple control system at the same time, with well-organized and exact monitoring interface European CE certification
|
Model |
SDS03A-12 |
SDS06A-24 |
|
Rated Battery Voltage |
12V |
24V |
|
Rated Wind Turbine Power |
300W |
600W |
|
Wind Turbine Maximum Input Current |
40A |
40A |
|
Wind Turbine Maximum Input Power |
500W |
1000W |
|
Unload Voltage factory default |
14V |
28V |
|
Unload Current factory default |
25A |
25A |
|
PV Charge Current |
10A |
10A |
|
Battery Over-discharge Voltage Shutoff |
11V |
22V |
|
Battery Over-discharge Recovery |
12V |
24V |
|
Output Protection Voltage |
16V |
32V |
|
PV Voltage Of Light-Control On |
Adjustable1V |
Adjustable2V |
|
PV Voltage Of Light-Control Off |
Adjustable1.5V |
Adjustable3V |
|
Line 1 Rated Output Current |
10A |
10A |
|
Line 2 Rated Output Current |
10A |
10A |
|
Line 1 Output Mode(Factory Default) |
3 Modes selection Light-control on and Light-control off |
3 Modes selection Light-control on and Light-control off |
|
Line 2 Output Mode(Factory Default) |
3 Modes selection Light-control on and time-control 5 hours |
3 Modes selection Light-control on and time-control 5 hours |
|
Control Mode |
PWM |
|
Display Mode |
LCD |
|
Display Parameters |
Wind Turbine Power,Wind Turbine Voltage,Wind Turbine Current,PV Voltage PV Charge Current,PV Power, Battery Voltage,
Ove-Voltage,Under-Voltage, Over-load, short circuit.Etc |
|
Working Temperature &Humidity |
-20-+55/35-85%RH Without Condensation |
|
Quiescent Current |
20±2 mA |
|
Protection Function |
Solar reverse-charging protection , solar reverse-connection protection,
battery over charge protection,battery over-discharge protection,
battery reverse-connection protection, lightning protecting,
wind turbine current limitting, wind turbine automatic brake and manual brake. |
|
In order to serve our customers better.Our company can adjust parameters configuration according to customer’s requirement. |
