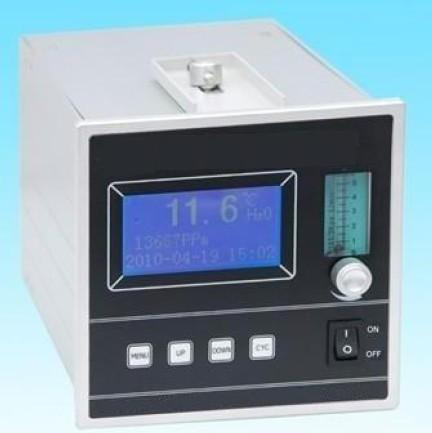

Trace Oxygen Analyzer for Psa Nitrogen Generator (ppm level)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Trace Oxygen AnalyzerFeatures * Imported fuel cell oxygen sensor, long life, high precision and fast response* Measuring oxygen concentration in H2 or deoxidize gas* Inner special gas-route protects the sensor when it exposures in the air for a long timeby out of power or cutting off the gas-route automatically.* Setting Upper and lower alarm values freely during the measure ranges. * 4-20mA signal output* One standard RS232C or RS485 interface Technical Specifications Measure Range: 0-10ppm, 0-100ppm, 0-1000ppm, 0-1% O2Accuracy: ≤±2% in FS rangeResponse Time: 90% of final FS reading ≤10 secondsDisplay Resolution: 0.01ppmStability: Zero drift ≤±2% of FS/7d Span drift ≤±2% of FS/7dRepeatability: ≤±1%Ambient Temp.: 0ºC~+45ºCSampling Gas Flow: 200~400ml/minSampling Gas Pressure: 0.05MPa≤Inlet pressure≤0.5MpaPower Supply: 220±10% VAC, 50/60Hz, power loss≤10VAMeasure Medium: H2, He, hydrocarbons, inert & acidic gasesContact Capacity: 125VAC 0.3A, 110VDC 0.3A, 30VDC 1ASensor Life: 24 months at 25ºC and 1 atm
Warranty: 12 months analyzer; 12 months sensorWeight: 3kg Installation Dimension: 133mm×133mm×250mm (W×H×D)
Prod Model: |
Trace oxygen |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Measure Range: |
-10ppm, 0-100ppm, 0-1000ppm, 0-1% O2 |
Sampling Gas Flow: |
200-400ml/Min |
Display Resolution: |
0.01ppm |
Measure Medium: |
H2, He, Hydrocarbons, Inert & Acidic Gases |
Sensor Life: |
24 Months at 25oc and 1 ATM |
Warranty: |
12 Months Analyzer; 12 Months Sensor |
Type: |
Electrochemical Gas Analyzer |
Registered in Beijing, BROTIE is specialized in air separation solutions, gas boosting solutions, gas analyzing and related industrial gas solutions. Our products include PSA nitrogen generators, PSA oxygen generators, totally oil-free gas compressors, gas analyzers and related equipments.
So far, BROTIE has extended its business scope from simple gas equipment to gas supply so as to provide particular product, technical consultations and solutions for global users in gas and gas equipment field. Owing to our self-motivated passion in researching and developing gas technologies with the cooperation of some professional researching institutes, our prompt and customer-oriented services have reached many countries over the world. You can find BROTIE in United States, Russia, Kazakstan, Tajikistan, Turkey, Philippines, Korea, Bolivia, Brazil, Colombia, Czech, Germany, Kenya, Korea, Turkey, India, Palestine, Senegal, Singapore, Indonesia, Iran, Saudi Arabia, Austrilia, Cyprus, Netherland, Thailand, Sudan, Surname, Ecuador and so on.
With the strategic location of BROTIE, we have got continuous development of technologies and more than 20 long-term partner suppliers located in China such as Siemens, Kobelco, Atlas Copco, Domnick Hunter, Mitsubishi, CKD and SMC. So, BROTIE is able to be one of the best air separation solution manufacturers and one of the most comprehensive Chinese industrial source solution providers for customers at every corner of the world.
Understanding that every application, location and every customer's demand is unique, BROTIE experienced engineers work closely with the customer to analyze the special requirements and the working conditions to provide gas generation systems which meet the specifications of flow, purity and pressure, and customize the system to meet every special requirement.
We believe in that the never stop improvement of ourselves and the support from the cooperators, professional, technical on-top and service concept, BROTIE is continuously supplying more and more professional solutions of on-site gas generation for customers.
