Nitrogen Analyzer for Nitrogen Plant

Nitrogen Analyzer for Nitrogen Plant
Price: US $ 200-500/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

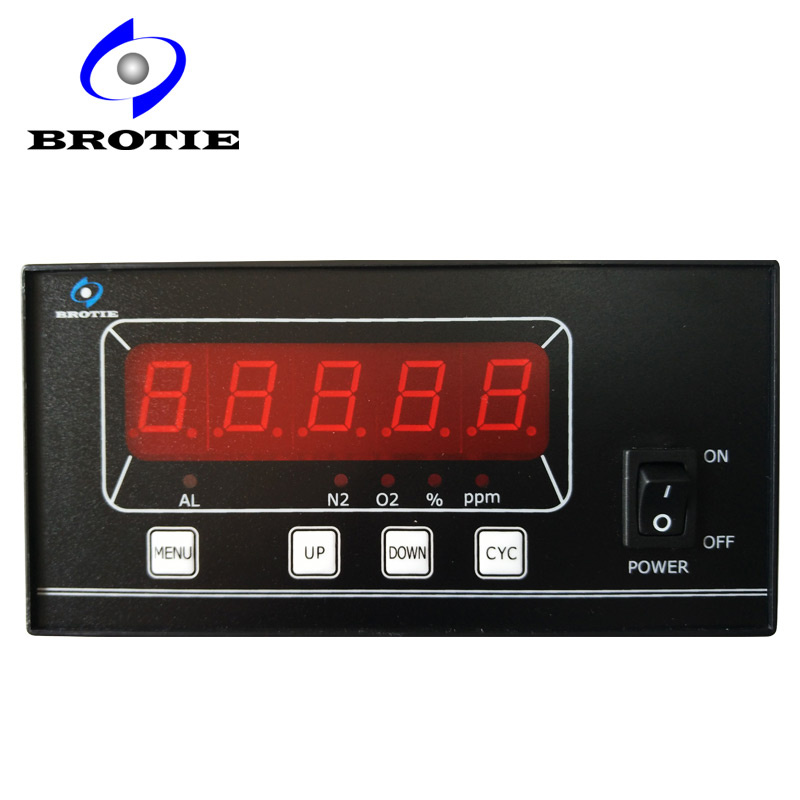

Online Oxygen/Nitrogen Gas Analyzer

Features
* New pattern long-life conversion ion current tester with fast response and high sensitivity
* N2 or O2 concentration display
* Checking the sensor working state automatically and unique double-line working change mode extending the sensor's life
* Setting alarm value freely
* High precision, automatic temperature compensation, eliminating the impact of environmental temperature

Technical Specifications
Monitor:                                         Five-digital dynamic LED monitor, visible display window: 90mm×25mm
Measure Range:                         10~2000ppm, 0~2%, 0~21% O2
Sensor Principle:                         Ion current oxygen sensor
Measure Mode:                           Air inflowing or convection diffusing
Sample Gas Flow:                     150~300ml/min
Accuracy:                                      ±5% in 10~2000ppm O2  range
                                                       ±2% in 0~2%O2 range
                                                       ±1% in 0~21%O2 range
Response Time:                         90% of FS reading ≤20 seconds
Ambient Temp.:                          -10ºC~+50ºC
Ambient Humidity:                       <80%RH
Stability:                                        <±1%.FS (168h)
Signal Output:                             4~20mA
Power Supply:                             220±10% VAC, 50/60Hz, the power loss ≤6VA
Sensor Life:                                 20000 hours at 25ºC and 1 atm
Warranty:                                   12 months analyzer; 12 months sensor
Weight:                                       1kg
Appearance Dimension:         160mm×80mm×176mm (W×H×D)
Opening Size:                           151mm×75mm

Model choice
ItemModelMeasure range
 13O21.0%~1000ppm O2
24O21.00%~100ppm  O2
35O21.000%~10ppm   O2
43N79.0%~99.9%   N2
54N79.00%~99.99%  N2
65N79.000%~99.999% N2

This model is widly used in PSA nitrogen generators by related manufaturers. Low cost, high accuracy, long service time.

If the quantity is big, the discounted distributor price will be provided.

Prod Model: 860
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measure Range: 10~2000ppm, 0~2%, 0~21% O2
Sampling Gas Flow: 150~300ml/Min
Sensitive: 0.01% O2
Signal Outputs: 4-20mA
Sensor Life: 3 Years (in Normal Condition)
Warranty: 12 Months Analyzer; 12 Months Sensor
Response Time: 90% of Fs Reading in 20 Seconds
Sensor Principle: Ion Current Oxygen Sensor
Appearance Dimension: 160mm×80mm×176mm (W×h×d)
Opening Size: 151mm×75mm
Type: Electrochemical Gas Analyzer
Registered in Beijing, BROTIE is specialized in air separation solutions, gas boosting solutions, gas analyzing and related industrial gas solutions. Our products include PSA nitrogen generators, PSA oxygen generators, totally oil-free gas compressors, gas analyzers and related equipments.

So far, BROTIE has extended its business scope from simple gas equipment to gas supply so as to provide particular product, technical consultations and solutions for global users in gas and gas equipment field. Owing to our self-motivated passion in researching and developing gas technologies with the cooperation of some professional researching institutes, our prompt and customer-oriented services have reached many countries over the world. You can find BROTIE in United States, Russia, Kazakstan, Tajikistan, Turkey, Philippines, Korea, Bolivia, Brazil, Colombia, Czech, Germany, Kenya, Korea, Turkey, India, Palestine, Senegal, Singapore, Indonesia, Iran, Saudi Arabia, Austrilia, Cyprus, Netherland, Thailand, Sudan, Surname, Ecuador and so on.

With the strategic location of BROTIE, we have got continuous development of technologies and more than 20 long-term partner suppliers located in China such as Siemens, Kobelco, Atlas Copco, Domnick Hunter, Mitsubishi, CKD and SMC. So, BROTIE is able to be one of the best air separation solution manufacturers and one of the most comprehensive Chinese industrial source solution providers for customers at every corner of the world.

Understanding that every application, location and every customer's demand is unique, BROTIE experienced engineers work closely with the customer to analyze the special requirements and the working conditions to provide gas generation systems which meet the specifications of flow, purity and pressure, and customize the system to meet every special requirement.

We believe in that the never stop improvement of ourselves and the support from the cooperators, professional, technical on-top and service concept, BROTIE is continuously supplying more and more professional solutions of on-site gas generation for customers.
