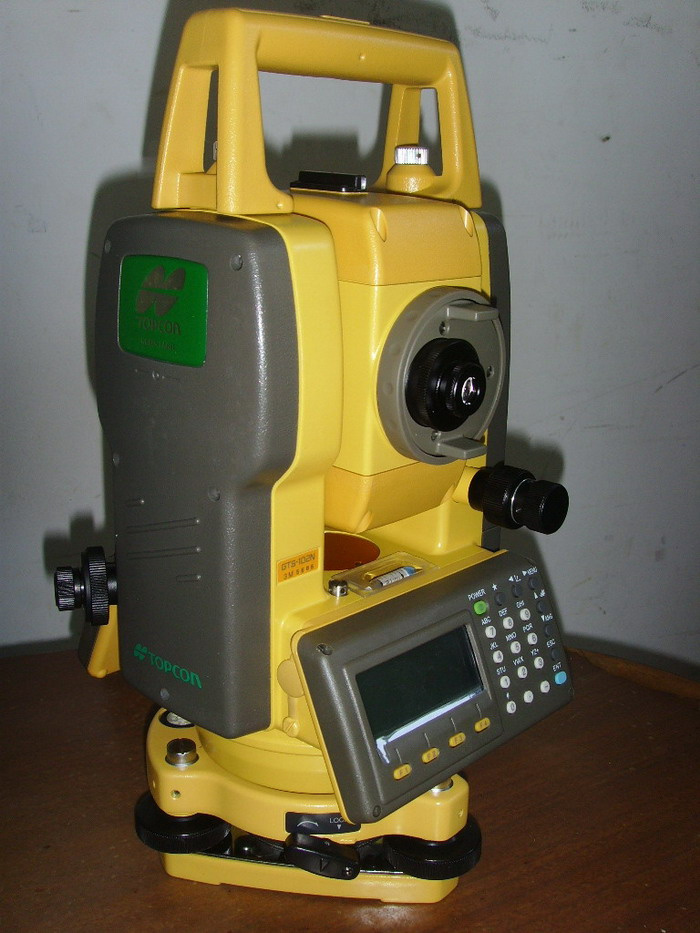

Topcon Total station GTS102N
Three language version for choose: English. Spanish and Portuguese
On board programs & 24, 000 point data storage
Economical, value priced measuring solution
Expanded, Full numeric keypad
Ideal as a construction stakeout total station
Rugged, durable Support waterproof. Dustproof capabilities. High accuracy and long measuring range.
Perfect when combined with FC field controller and software
The entry-level value choice is the GTS-102N. Built with legendary Topcon precision and durability, the GTS-102N provides the construction professional with a dedicated lay-out solution. Use the on-board software to layout points in the field, confident that with Topcon, you'll be right on target. Or use any of Topcon's field controllers running one of our range of software packages tailored to the tasks you want to perform.
Telescope
Length: 150 Millimeters
Objective Lens Diameter: 45mm (EDM: 50mm)
Magnification: 30x
Image: Erect
Field of View: 1° 30
Resolve Power: 3 "
Min. Focus Distance: 1.3 meters
Measurement Range
1 Prism: 6500 ft, 2000 meters
3 Prism: 8800 ft, 2700 meters
Measuring Accuracy
Prism Mode: ± (2mm + 2ppm x D)m. S. E. Fine, N/A
Measurement time: 1mm: 1.2sec. (Initial 4sec. ) fine, 0.2sec. (Initial 3sec. ) coarse, N/A
Angle Measurement
Method: Absolute Reading
Detection: 2 horizontal, 1 vertical
Minimum reading: N/A, 1/5 mgon
Tilt Correction
Type: Single Axis
Method: Liquid surface reflective profile sensor reading type
Compensating Range: ± 3'
Correction Unit: 1 arc sec, N/A
Computer Unit
Display: 2 screen, DOT matrix graphic LCD display
Power
Approximate battery life: 9 hours including distance measurement, 40 Angle measurement only
