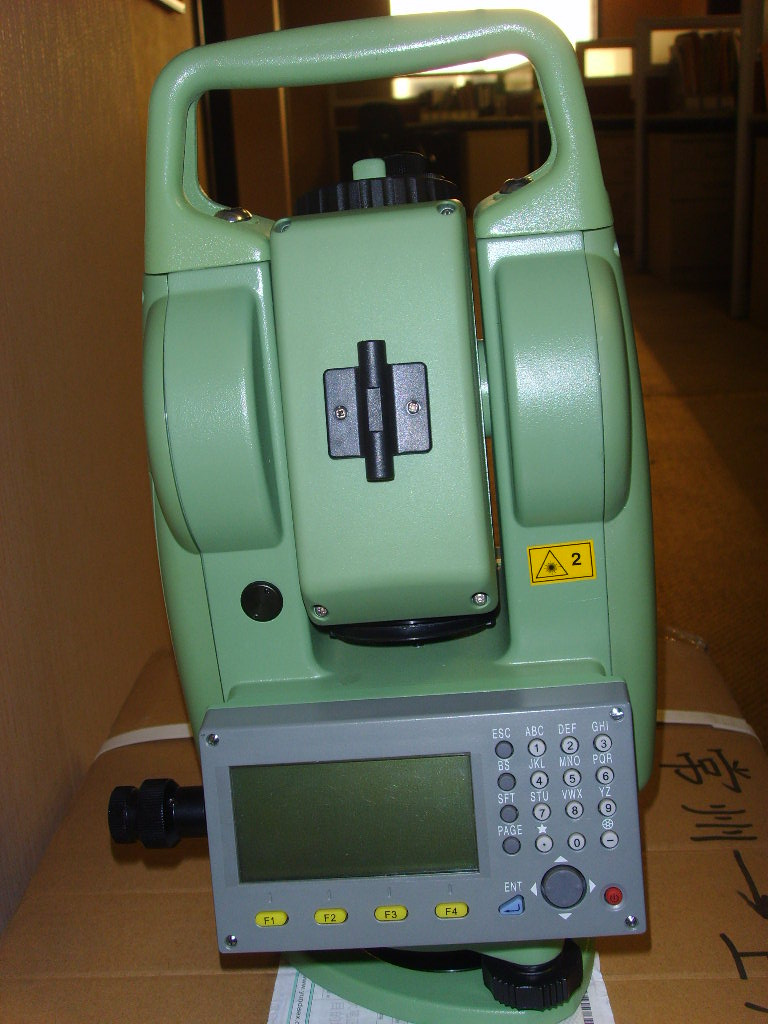

TOTAL STATTION MTS802R, MTS602R series are made in China with top quality.
Easy operation: Full numeric keyboard.
Complete application programs.
Internal memory, max: 15000 points.
Language: English version
MODEL MTS-802R MTS602R
Telescope
Image Erect
Magnification 30X
Effective Aperture 45mm(DTM 50mm)
Resolving Power 4"
Field Of View 1° 30'
Minimum Focus 1.5m
Distance Measurement(under Fair Weather Condition)
Range 1P 5.0km
Sheet 800m
Accuracy 2mm+2ppmxD
Minimum Count 1mm
Distance Unit ft. Or m selectable
Measuring Time
Fine 1.8sec. (first time2.5sec. )
Tracking 0.4 Sec.
Maximum display 999999.999m
Atmospheric Correction
Temperature C or F
Atmospheric Pressure hPa/mmH/inHg
Atmospheric Deflection &
Earth Curvature Correction k=0.14/0.20/0
Prism Constant 0 mm / 30 mm
Angle Measurement
Measurement Method Incremental Photoelectronic Encoder
Detection Method
Horizontal Dual
Vertical Dual
Accuracy 2"
Minimum Readout 1"and 5"
Sensitivity of Vials
Plate Vial 30"/2mm
Circular Vial 8'/2mm
Vertical Compensation Available
Type Liquid-electric detection/Plate level
Compensation Range +/-3'
Resolution 1"
Optical Plummet
Image Erect
Magnification 3X
Focus Rang 0.5m-infinity
Display Double Side, LCD, Four-line Display
Data Port RS-232
Battery Lithium Rechargeable
Voltage 7.4VDC 4000 mAH
Operation Time Distance and angle measurement: 8.5 hours; Angle measurement 30 hours
Charging Tine 2 hours
Beili Industry Co., Limited (Beili) is a private owned exporter. We mainly supply all kinds of high quality metal-working machine tools and surveying instruments in China.
Our business include:
1. Machine tools:
Turning machines (lathe), mini lathe, CNC lathe, CNC vertical lathe, CNC vertical machine center, CNC drilling machines, drilling and milling machines, boring machines, milling machines, grinding machines, tool grinding machines, laser drilling machine, laser cutting machine, gear cutting and finishing machines, planning machines, shaping machines, slotting machines, broaching machines, sawing machines, cut-off machines, screwing and threading machines, honing machine, polishing machines, shearing machines, press brakes, bending machine, punching machine, presses, rolling machine, notching machine, engraving machines, wire cutting machine, electric discharging machine (EDM), etc.
2. Surveying Instruments
Total station, , Electronic Theodolite, Laser Theodolite, Distance Meter, Auto level, Surveying accessories, such as single prism set (leica, Sokkia) three prism set(leica, Sokkia) and so on.
If you are interested in our products or you have any inquiries, please kindly let us know without any delay by telephone/fax/e-mail. Hope we can serve you in the near future.
