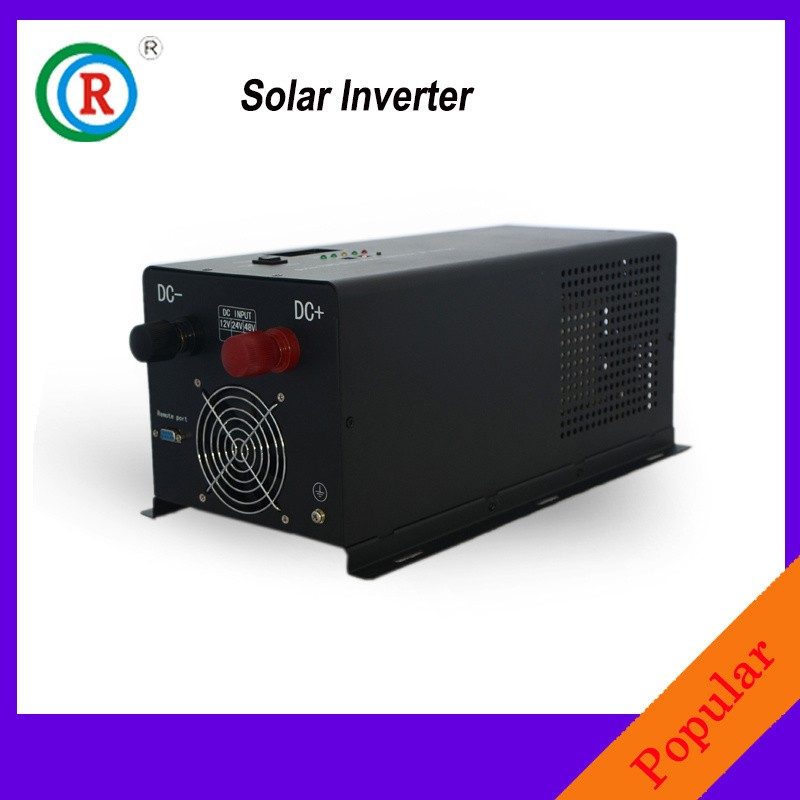

Top Selling 48VDC 3000W Inverter with CE Approved
Product Information:
Alternative of solar / wind power off-grid inverter(built-in controller&battery) is pure sine wave intelligent inverter. Through the inverter power supply, DC 12v /24v /48v battery can be converted into AC 110v /220v, which used to the electronic products, such as water pump, air-condition, refrigerator etc. The solar power system consists of solar panel, solar controller, inverter, battery and other components.
According to used method can be divided into three types:
1. Only the converter;
2. Give priority to the use of solar energy;
3. Give priority to the use of AC.
You can customize the DC 36v inverter; Also can choose converting the AC 100v /AC 120v /AC 240v, which frequency is 50HZ /60HZ. C
Why choose ORO?
1. CPU intelligent management,
2. Latest American technical inverter,
3. Adopted best electronic components, stable quality, long-life,
4. The high conversion efficiency( 90%-99%),
5. Low power consumption, 1W~6W under sleep state.
The product features of Solar / wind power inverter
1. Pure sine wave output;
2. Built-in transfer switch automatically transfers between inverter power and incoming AC power.
3. CPU management, intelligent control, module design.
4. LED/LCD display function;
5. High conversion efficiency (between 90%-98%)\/ low no load consumption.
6. Can match with all kinds of batteris, such as sealed lead acid battery, open lead acid battery, gel battery and kinds of lithium batteries.
7. Three-step intelligent charging mode available. It charges all kinds of batteries intelligently. And the maximum charging current is adjustable.
It also can be used as a charger.
8. This series inverter is also called dynamic inverter according to the advantage of strong overload capacity. For example, 1KW model can drive 1P air conditioning. 2KW can drive 2P air conditioning, 3KW can drive3P air conditioning etc.
9. With adopting latest American low frequency circuit design, and new electronic materials, the whole system is more stable, low malfunction rate, long-life. It is no problem to use for more than 8 years under the normal use.
10. One year warranty plus life-time service.
11. Protection: High voltage protection
Under-voltage protection
Low-temperature shutdown
Automatic overload protection
Short-circuit protection
Specifcation parameters:
Top Selling 48VDC 3000W Inverter with CE Approved
| AC220V | AC110V |
| Efficiency | ≥98% |
| Input Wave Type | Pure sine wave (utility or generator) | Pure sine wave (utility or generator) |
| Input Voltage Range | AC 154V~AC263V | AC 77V~132V |
| Nominal Input Voltage | 220Vac/230Vac/240Vac | 110Vac/120Vac/130Vac |
| Low Voltage shutoff | 154Vac±4% | 77Vac±4% |
| Low Voltage Recovery | 164Vac ±4% | 82Vac ±4% |
| Over voltage Shut off | 263Vac±4% | 132Vac±4% |
| Over Voltage Recovery | 253Vac±4% | 127Vac±4% |
| Nominal Input Frequency | 50Hz/ 60Hz (auto detect) | 50Hz/ 60Hz (auto detect) |
| Output Wave Type | Same as the input wave type | Same as the input wave type |
| Transfer Time (Ac to Dc) | <10ms | <10ms |
| Transfer Time (Dc to Ac) | <5ms | <5ms |
| Inverter Mode Specification |
| Power Factor | 1 (Sufficient output power) |
| Rated Output Voltage (V) | 220Vac/230Vac/240Vac | 110Vac/120Vac/130Vac |
| Nominal Output Frequency (Hz) | 50/60 ± 0.3Hz |
| Output Voltage Range | ±10% rms |
| Efficiency | >88% (DC12V:>88%,DC24V:>90%,DC48V:>94%) |
| Over-Load Protection | (110% |
| (125% |
| Load>150% ±10%: Fault (shutdown output) after 20s; |
| Low Battery Alarm | 10.5Vdc ± 0.3Vdc (If 12V Input) |
| 21.0Vdc ± 0.6Vdc (If 24V Input) |
| 42.0Vdc ± 0.6Vdc (If 48V Input) |
| Low DC input voltage automatic shut-down | 10.0Vdc ± 0.3Vdc(If 12V Input) |
| 20.0vdc± 0.6Vdc (If 24V Input) |
| 40.0vdc± 0.6Vdc (If 48V Input) |
| High DC input voltage warning & outage | 16Vdc ± 0.3Vdc (If 12V Input) |
| 32Vdc ± 0.6Vdc (If 24V Input) |
| 64Vdc ± 0.6Vdc (If 48V Input) |
| High DC input voltage Recover | 15.5Vdc ± 0.3Vdc(If 12V Input) |
| 31.0Vdc ± 0.6Vdc (If 24V Input) |
| 62.0Vdc ± 0.6Vdc (If 48V Input) |
| Power-saving mode | 6W |
| Power on mode | 20W~60W |
| Safety | CE EMC |
| Communication port | RS232 |
| Cooling | Cooling-Variable Speed Fan run under ventilation condition. |
| Operating Temperature Range | 0°C to 60°C |
| Storage temperature | -15ºC~60ºC |
| humidity | 5% to 95% |
| Noise | Max 60dB
|
ORO-power was established in 2009 to provide affordable. Clean. Modern and sustainable renewable energy product. It aims to improve people living standards and to protect the environment. We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit.
We started to do power business since 1990 with specializing in OEM and OEM production. Now we have our own brand and domestic, foreign sale centre. Our team is with advanced idea and good performance. So the product can fit for a kind of standards and national certification requirements for advanced power product. There are many different kinds of product. The product has sold to over 30 provinces in China. It involves in lectric power, fire protection, telecommunications, airports, highways, subways, radio and television, railways, the force, finance, hospitals, tunnels, construction, petrochemical and other industries.
The product has pass the ISO9001: 2000, CE, SGS and modern enterprise management standards. We have set up the specialized pre-sale, sale, after-sale technical support and services. The perfect solution will meet with customer's specific requirements after fully communication with customers. With strong technical force and advanced production management concept, we can timely provide customer with thoughtful services and creat well-known top brand in the industry.
