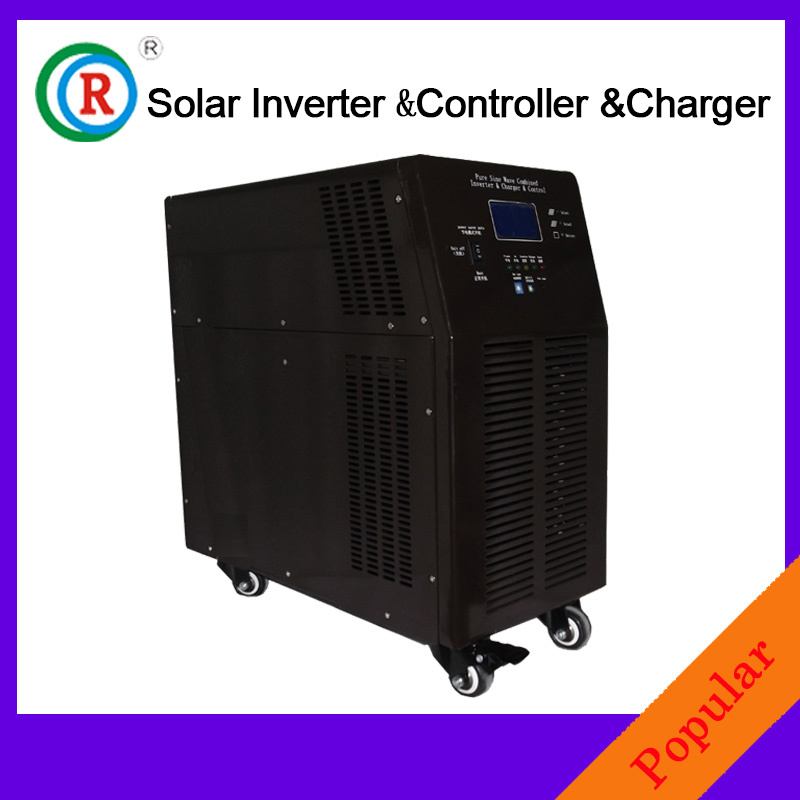

Pure Sine Wave Inverter with MPPT Charge Controller 12V

Pure Sine Wave Solar Inverter with MPPT Solar Charge Controller 12/24/48 Auto Recognition

1. Introduction:

1). This series of power combined with the current strengths and weaknesses of the power inverter upgrade optimize overall improvement,

2). Using the latest frequency inverter circuit scheme and design, with high conversion efficiency, high stability, low loss, superior load capacity, feature super anti-jamming capability;

3). Provide reliable sine wave AC power for commercial, industrial, civilian, military, telecommunications equipment. For DC voltage is DC12V, DC24V, DC48V, DC72V PV off-grid power applications, mainly for air conditioning, television, cash registers, refrigerators, washing machines, computers, power tools, lighting, industrial equipment, telecommunications equipment and other types of loads.

4). Built-in solar controller, a short circuit, overload, the unique anti-reverse protection, anti-anti-charge protection at night, full, over-discharge automatic shutdown, resume and other full-featured protection measures.

2. The product features:

1), Pure sine wave output; Do not harm electrical equipment, effective protection of the load; Comes with UPS conversion function, high-speed conversion, the conversion time less than 5ms; Ensure uninterrupted electricity;
2), CPU management, intelligent control, modular composition, which is more convenient after-sale maintenance;
3), LED + LCD display, a visual display of all operating parameters of the machine, including the PV voltage and current;
4), High conversion efficiency, half load environment conversion efficiency is 90-95%; Mains Environment issued more than 99%; Low-consumption in the sleep state, the loss between 1W ~ 6W; Energy efficient;
5), Increased electricity auxiliary charging function; Powerful charging function, three-stage intelligent charging for different types of batteries, such as sealed lead-acid batteries, open lead acid batteries, gel batteries, seven kinds of batteries, Note: Lithium batteries need to Specifications Customers use the factory settings;
6), Intelligent temperature control fan, more energy and longer life;
7), This series of products with a carrying capacity, superior anti-load capacity, such as drive any load pumps, air conditioners, refrigerators, etc.; Rated power 1KW inverter can drive 1P air conditioning, rated power 2KW inverter can drive 2P air conditioning, 3KW inverter 3P can drive air conditioning
8), Using the most advanced frequency circuit design, with a new top-level electronic material, good stability, low failure rate, long life, normal life can reach more than eight years;
9), Perfect protection features: Low voltage protection, high voltage protection, high temperature protection, short circuit protection, leakage protection, overcurrent protection, overload protection, low recovery, high recovery, smart thermostats, alarms and other solid
10), the frequency structure design, anti-harmonic interference, harmonic interference from inductive loads, safer and more stable;
11), the frequency structure design, anti-harmonic interference, harmonic interference from inductive loads, safer and more stable
12), Copper transformers, copper terminal blocks, copper wire, three anti-paint high density circuit boards (dust, moisture, insects), dual ball bearing DC silent fan, large LCD display, high-current terminals, all using the new top electronic components, high-end packaging, safe, efficient, high-grade

1-year warranty plus life-time service.

Solar inverter parameters specifications
Power Specifications		300W~12KW
DC Input Specifications
Rated Voltage Specifications		DC12/24/48/72V-AC220V					DC12/24/48/72V-AC110V
Operating Voltage Range(Normal Operating Battery Voltage)		10V-16V  (DC12V Power Supply) 20V-32V  (DC24V Power Supply) 40V-64V  (DC48V Power Supply) 60V-96V  (DC72V Power Supply)
Low Voltage Alarm(alarm to alert users when battery's voltage is over low)		10.5Vdc ± 0.3Vdc (12V Power Supply) 21.0Vdc ± 0.6Vdc (24V Power Supply) 42.0Vdc ± 1.2Vdc (48V Power Supply) 63.0vdc ± 1.8Vdc (72V Power Supply)
Low Voltage Shut off (shut off when battery's voltage is over low)		10.0Vdc ± 0.3Vdc (12V Power Supply) 20.0Vdc ± 0.6Vdc (24V Power Supply) 40.0Vdc ± 1.2Vdc (48V Power Supply) 60.0Vdc ± 1.8Vdc (72V Power Supply)
Low Voltage Recovery (Automatic Boot when battery's voltage returns to normal)		12.0Vdc ± 0.3Vdc  (12V Power Supply) 24.0Vdc ± 0.3Vdc  (24V Power Supply) 48.0Vdc ± 0.3Vdc  (48V Power Supply) 72.0Vdc ± 0.3Vdc  (72V Power Supply)
High Voltage Alarm and shut off ( alarms and shut off when the battery's voltage is over high)		16Vdc ± 0.3Vdc (12V Power Supply) 32Vdc ± 0.6Vdc (24V Power Supply) 64Vdc ± 1.2Vdc (48V Power Supply) 96Vdc ± 1.8Vdc (72V Power Supply)
High Voltage Recovery (Automatic boot when battery's voltage returns to normal)		15.5Vdc ± 0.3Vdc (12V Power Supply) 31.0Vdc ± 0.6Vdc (24V Power Supply) 62.0Vdc ± 1.2Vdc (48V Power Supply) 93.0Vdc ± 1.8Vdc (72V Power Supply)
Inverter Efficiency		≥90%
DC-priority type, battery low voltage conversion point when there is utility electricity bypass ( battery voltage is lower than this, turn to utility electricity to supply)		11Vdc ± 0.3Vdc (12V Power Supply) 22Vdc ± 0.6Vdc (24V Power Supply) 44Vdc ± 1.2Vdc (48V Power Supply) 66Vdc ± 1.8Vdc (72V Power Supply)
DC-priority type, after turning to utility electricity to supply, the battery low voltage recovery point (when the battery's voltage is higher than this, turn to battery to supply electricity)		13.5Vdc ± 0.3Vdc (12V Power Supply) 27.0Vdc ± 0.6Vdc (24V Power Supply) 54.0Vdc ± 1.2Vdc (48V Power Supply) 81.0Vdc ± 1.8Vdc (72V Power Supply)
AC Input Specifications
Rated Voltage Specifications		220VAC System					110VAC System
Input Voltage Waveform		Sine wave (utility electricity or generator)					Sine wave (utility electricity or generator)
Rated Input Voltage		220Vac/230Vac/240Vac					110Vac/120Vac/130Vac
Low Voltage Shut off		180Vac±4%					85Vac±4%
Low Voltage Recovery		195Vac ±4%					90Vac ±4%
High Voltage Shut off		260Vac±4%					135Vac±4%
High Voltage Recovery		255Vac±4%					130Vac±4%
Utility Electricity Charging rule		Three Stages:
		Constant current charging (constant stage)→constant voltage(constant voltage stage)→float (constant voltage stage)
Utility Electricity Supply Efficiency		≥98%
Conversion Time (AC to DC)		<4ms
Conversion Time (DC to AC)		<8ms
AC output specifications
Rated output voltage (V)		220Vac/230Vac/240Vac					110Vac/120Vac/130Vac
Output Voltage Range		±10% rms
Rated output frequency(Hz)		50Hz ± 0.3Hz/60Hz ± 0.3Hz(Optional)
Power Factor		1.0
Output Waveform		Pure sine wave
Waveform distortion rate( THD )		≤3% ( Linear load )
Dynamic Response( 0~100% )		5%
Peak Factor ( CF )		3:1
Overload Protection (SMPS load)		(110%(125%      (Load>150%) ±10% :after 20 seconds disconnecting the output voltage
Other notes
Continuous operation time		Continuous operation
Normal Boot no-load Depletion		≤Rated Power×2.5%
No-load Depletion of energy-saving mode		≤6W
Safety Certification		CE(EN62040-1)     EMC :EN62040-2, C2
Communication Interface		RS232 / (Customizable)
Cooling		Temperature-controlled variable speed fan cooling (Ventilation condition)
Noise( dB\1 meter )		<60dB
Ambient temperature ( ºC )		-10~+45
Storage Temperature( ºC )		-20~+55
Using Environment Humidity		0-95% relative humidity(No condensation)
Altitude( m )		≤5000( More than 1000 m, derating )
Display Way		LED Indicator +LCD Display
Alarm Way		Buzzer sounds alarm
Protection Functions		Low voltage protection, high voltage protection, high temperature protection, short circuit protection, leakage protection, overcurrent protection, overload protection, low recovery, high recovery, intelligent temperature control, solid barrier alarm
Protection Level		IP20 / Customizable
Solar Charge Controller Parameter Specifications
Specifications	12V/10A		12V/20A	12V/30A	12V/40A	12V/50A		12V/80A		12V/100A
Rated Power (W)	120		240	360	480	600		960		1200
Rated Charging Current(A)	10		20	30	40	50		80		100
Rated DC Voltage (V)	12
PV Highest Voltage(V)	<25
PV Maximum Power (W)	120		240	360	480	600		480×2 ways		600×2 ways
Battery Overcharge Protection Voltage(V)	14.3
Battery Overcharge Recovery Voltage(V)	13.7
Battery Constant Voltage charging Voltage(V)	13.5
Battery Over-discharging alarm Voltage(V)	10
Protection Function	Night: anti-reverse charging, solar reversed
Control Mode	PWM or MPPT
Other Notes	Please refer to other solar controller manual
Specifications	24V/10A		24V/20A	24V/30A	24V/40A	24V/50A		24V/60A		24V/100A
Rated Power(W)	240		480	720	960	1200		1440		2400
Rated Charging Current(A)	10		20	30	40	50		60		100
Rated DC Voltage(V)	24
PV Highest Voltage(V)	<50
PV Maximum Power (W)	240		480	720	960	1200		1440		1200×2 ways
Battery Overcharge Protection Voltage(V)	28.6
Battery Overcharge Recovery Voltage(V)	27.4
Battery Constant Voltage charging Voltage(V)	27.0
Battery Over-discharging alarm Voltage(V)	20
Protection Function	Night: anti-reverse charging, solar reversed
Control Mode	PWM or MPPT
Other Notes	Please refer to other solar controller manual
Specifications	48V/20A		48V/30A	48V/40A	48V/50A	48V/60A			48V/80A		48V/100A
Rated Power(W)	960		1440	1920	2400	2880			3840		4800
Rated Charging Current(A)	20		30	40	50	60			80		100
Rated DC Voltage(V)	48
PV Highest Voltage(V)	<100
PV Maximum Power (W)	960		1440	1920	2400	1440×2 ways			1920×2 ways		2400×2 ways
Battery Overcharge Protection Voltage(V)	28.657.2
Battery Overcharge Recovery Voltage(V)	54.8
Battery Constant Voltage charging Voltage(V)	54.0
Battery Over-discharging alarm Voltage(V)	40
Protection Function	Night: anti-reverse charging, solar reversed
Control Mode	PWM or MPPT
Other Notes	Please refer to other solar controller manual
