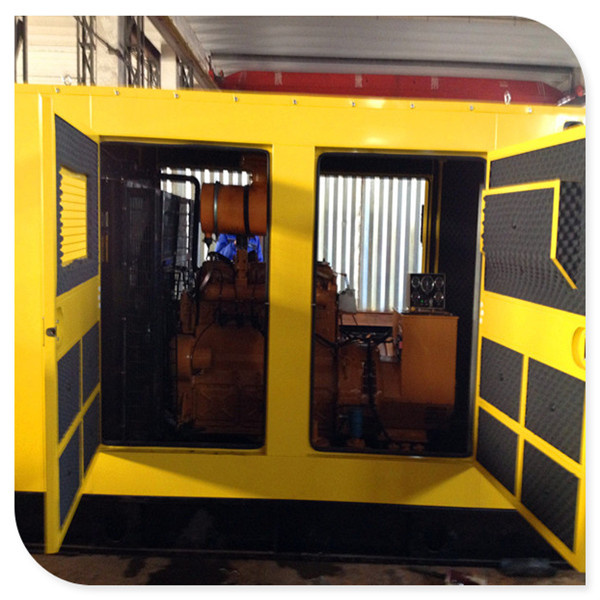

Top Quality 150kw Wood Chip and Crop Biomass Gas Generator Set Water Cooled Fow Mini Power Plant Cooking

top quality  150kw wood chip and  crop biomass gas generator set  water cooled  fow mini  power plant cooking



1. Pre-sale service:
1) We will send our engineer to prospect the site of power station free of charge.
2) According to the situation of site, we will provide design drawings, such as power plant floor drawing, cooling system drawing, genset foundation, control room design, etc.

2. Sale service:
1) Operator training would be conducted by Lvhuan technicians during the process of commissioning or Factory training course in China,
2) Installation and commission of the genset would be instructed assisted by Lvhuan technicians at site.

3. After-sale service:
1) We have strong after-sale team, we will response within 24 hours and provide technical supports by phone or site guiding, help our clients to gain the biggeset profit.
2) For the quality problem, we will service for you free of charge during the guarantee period.
3) We  provide one year guarantee period and lifetime service.

Plentiful spare part supply
1. We have spart parts department, plentiful spare part supply for all genset model will guarantee genset lifetime running.
2.All parts were from original factories or professional factories,complete in specification,keep good quality.



Lvhuan gas genset is a new green environmental product which meets demands of world environment protection and market.
With domestic advanced technology, our genset possesses features of speedy start, easy to operate, complete models, etc.

a. Biomass exists in various forms, like wood, crop( straws of rice, wheat, bean, cotton, husk,etc), weeds, algae, etc, in the plants. Others like animal wastes spoil and the organic exist in waste water and rubbish etc.
Now there are mainly three ways to generate power with biomass: gasify generating, burning generating, CHP technology. In China, we are rich in the resources of biomass, but lack in the power supply. So our country can supply a vast stage to show the advantage and economy to generate power with biomass.
Shandong Lvhuan Power Equipment Co.,Ltd is a pioneer and practitioner in green energy and renewable resources.
 b. Biomass is biological material derived from living, or recently living organisms. It most often refers to plants or plant-based materials which are specifically called lignocellulosic biomass. As an energy source, biomass can be used directly via combustion to produce heat. It is a renewable energy source, For the use of the term in ecology.
Shandong Lvhuan Power Equipment Co.,Ltd is a pioneer and practitioner in green energy and renewable resources.
 Main composition of biomass gas:
After being gasified, the basis of gas is CO(20%), H2(9%), CH4(12%),CO2(12%), N2(52%), The lower heating value is 5-6 MJ/Nm3.
Efficiency of gasification:1 kg dried material can generate 2 Nm3 gas, conversation rate is more than 85%. 1 kg dry material can generate 1 kw.h power.

Requirements for biomass gas:
Within 1m from pressure regulating value of gas intake;
Gas temperature<40ºC
The ratio of CH4 in natural gas >70%;
Pressure of natural gas: 3--10 kpa, rate of pressure change <1 kpa/min;
H2S≤200mg/Nm3;
NH3≤20mg/Nm3;
Tar content≤20mg/ Nm3;
Moisture content ≤40g/Nm3;
Impurity particle size ≤5µm, impurity content ≤30 mg/Nm3
Heat value≥4.2MJ/Nm3

Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow  supercharger, compression  ration is  1:8,meet engine's  requirement   for gas-flow rate.
Speed regulating system:EGS gas controller of American WOODWARD Company.
scope of application:Biogas generator set is widely used in the many area where can generate biogas,
like rubbish landfill,livestock excrement disposal,industrial organism disposal.

Biomass gas generator list
Genset Mode	Prime power	Continuous power	Engine Mode	Displacement
LHBMG10	10kw	8kw	LH2100	1.80L
LHBMG20	20kw	16kw	LH4100	3.61L
LHBMG30	30kw	24KW	LH4105	4.32L
LHBMG40	40KW	32KW	LH6105	6.45L
LHBMG50	50KW	40KW	LH4135	8.58L
LHBMG60	60KW	48KW	LH4135	8.58L
LHBMG70	70KW	56KW	LH6135	12.8L
LHBMG80	80KW	64KW	LH6135	12.8L
LHBMG90	90KW	72KW	LH6135	12.8L
LHBMG100	100KW	80KW	LH6135	12.8L
LHBMG120	120KW	96KW	LH12V135	25.75L
LHBMG140	140KW	115KW	LH12V135	25.76L
LHBMG150	150KW	120KW	LH12V135	25.75L
LHBMG180	180KW	144KW	LH12V135	25.75L
LHBMG200	200KW	160KW	LH12V135	25.75L
LHBMG250	250KW	200KW	LH12V190	35.75L
LHBMG300	300KW	240KW	LH12V190	35.75L
LHBMG350	350KW	280KW	LH12V190	35.75L
LHBMG400	400KW	320KW	LH12V190	71.45L
LHBMG500	500KW	400KW	LH12V190	71.45L
LHBMG600	600KW	480KW	LH12V190	71.45L
Parameter of biomass gas generator
Rate Voltage			400V/230V
Phase			3Phase  4 wires
Rate Frequency			50HZ/60HZ
Power Factor			0.8
Voltage Regulating Range			95%-105%
Voltage Steady State			≤±2%
Voltage Transient State			≤±10%
Voltage Settling			≤1S
Voltage Volatility			≤±0.5%
Frequency Steady State Regulation Rate			≤0.5%
Frequency Transient State  Regulation Rate			≤±10%
Heat Consumption			9.8mj/kw.h
Pressure			5-20kpa
Intake Mode			Natural intake
Sparking Mode			Sparking plug
Voltage Regulation Mode			automatic
Speed Regulation Mode			Electronic speed regulation
Lubricating Mode			Pressure and splash
Cooling Mode			Closed/open circulating water cooling
Starting Mode			24V electric motor
Overhaul Time			≥20000h
Noise			≤105aB(A)
Exhaust Temperature			≤650°C
