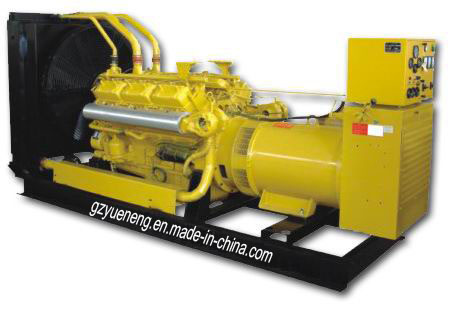

200-450kW generator sets which adopts the SDEC 12V135 series diesel engine, equipped with some famous brushless excitation alternators(Marathon, Stamford, etc. ) and control panels.
The diesel generator set has auto protective device, it can control and protect the water temperature, oil temperature, oil pressure, and the speed.
It has many advantages such as automatic speed regulation, automatic voltage regulation, good dynamic performance, stable fluctuation form of voltage, high efficiency, excellent reliability, long service life, etc.
The machine can be combined as power station group with automatic starting units and ATS, etc. With the customer's request.
| Genset | Engine | Alternator | Power Output | | Cylinders | | Fuel Consumption | Lubricant Capability | Dimension | | | Net Weight |
| Model | Model | Model | | | | Bore x Stroke (mm) | (L/H) | (L) | (mm) | | | (kg) |
| | | | kW | kVA | | | | | L | W | H | |
| YMS-200SD | 12V135AD | MP-200-4 | 200 | 250 | 12 | 135x150 | <52 | 50 | 3380 | 1376 | 1958 | 3520 |
| YMS-250SD | 12V135JZD | MP-250-4 | 250 | 312 | 12 | 135x140 | <82 | 50 | 3380 | 1376 | 1958 | 3130 |
| YMS-300SD | 12V135AZD | MP-300-4 | 300 | 375 | 12 | 135x150 | <74 | 50 | 3380 | 1376 | 1958 | 3550 |
| YMS-300SD-1 | 12V135AZLD | MP-300-4 | 300 | 375 | 12 | 135x150 | <78 | 50 | 3400 | 1376 | 1958 | 3550 |
| YMS-330SD | 12V135AZLD | MP-330-4 | 330 | 412 | 12 | 135x150 | <85 | 50 | 3400 | 1376 | 1958 | 3550 |
| YMS-400SD | 12V135BZLD | MX-400-4 | 400 | 500 | 12 | 135x155 | <104 | 50 | 3500 | 1376 | 1958 | 3760 |
| YMS-450SD | 12V135BZLD1 | MX-450-4 | 450 | 563 | 12 | 135x155 | <116 | 50 | 3500 | 1376 | 1958 | 3760 |
Our company is a national first-class enterprise, have 3 million square meters of buildings, quality assurance, through IS9001-2002, with modern technology level.
