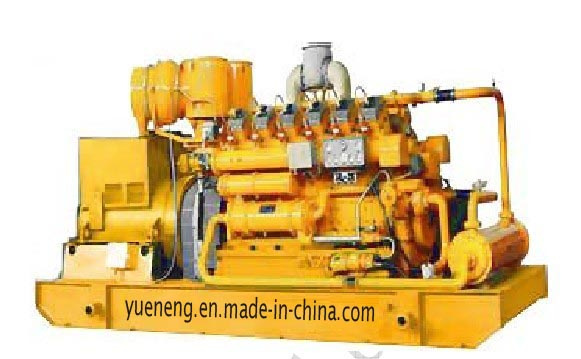

TOP Power PS SANTUM Series Gas Generating Set
Generator Set Specification
Genset Model: TSJ1250G /TSJ500G /TSJ625G /TSJ875G
Manufacture: TOPPower Power System
GasEngineModel: AD12V190ZlT2 /12V190DT2 /12V190ZDT-2 /12V190ZlDT
AlternatorModel: IFC6 Series/TFC454-6TA42
Rated Power: 1000kW/400KW/500KW/750kw
Rated Voltage: (400/230V)
Rated Speed: 1500rpm/1000rpm/1000rpm/1500rpm
Rated Frequency: 50Hz
StartingMethod: 24V DC electric Starting
ControlPanelModel: KTA1000A-1/KTA400A-1
CouplingMethod: Elastic Coupling
VoltageRegulation: Automatic
CoolingMode: Opened
Dimension:
Water tower cooling type 5800*2200*2500mm
Radiator cooling type 7150*2310*2880mm
NetWeight: 16500kg/1180kg/12000kg/11800kg
Voltage
Stabilized Regulation: +2.5%
Instantaneous Regulation: +20%-15%
Recovery time: 2S /0.5% /1.5S /1.5S
Fluctuation: 0.5%
Frequency
Stabilized Regulation: 0-5% adjustable
Instantaneous Regulation: +10%, -12%
Recovery time: <10S /<7S /7S /7s
Fluctuation: 1% /0.5% /0.5% /0.5%
Engine Performance
Rated Power: 1100kW/450KW/552KW/800KW
Number and layout of cylinders: 12, V-type, 60° Included angle
Type: Four stroke, Water cooled, Turbocharged, Air after-cooled, Electronic timing air intake valve for each cylinder
Fuel: Natural gas
IgnitionType: Spark plug ignition
Intake gas pressure required: 10-400kPa
Bore*Stroke: 190× 215mm /190*210mm /190*210 /190*210
Compression ratio: 10: 1 /9: 1 /9: 1 /12: 1
GasConsumption: 0.25 m³ /kWh
Heat consumption: ≤ 9500kJ/kWh/11386kwh/11386kwh/11000kwh
Oil Consumption: ≤ 0.72g/kWh /1.6g/kwh /1.63 /1.63
Lowest speed: 700rpm /700rpm/700rpm/700rpm/700rpm
ExhaustTemp.: ≤ 700º C /650º C /650 /650
NetWeight: 9300kg/5300kg/53000kg/ 5300kg
Heavy overhauling time: 35000 hours/25000/25000/3500
Alternator
Alternator Model: Siemens IFC6 Series
Exciting Model: Brushless
Insulation Class: Class F
Connection: 3-Phase, 4 Wire
Cooling: Air cooled
Structuretype: AVR and reactive droop regulator assembled in alternator for synchronization
Control Panel
Type: Cabinet
Components:
1)Meters showing various parameters of operating status,
2)BBE AHB series multi— Functional air circuit-breakers
3)Woodward 2301A electronic load sharing and speed control
4)Comap IG-CU controller (optional)
Functions:
1)Auto Audio or visual alarm
2)Auto Shut down
3)Manual synchronization
4)Auto synchronization(optional)
| TPS SANTCM Model: |
| Model | Power (kw/kVA) | Engine Model | Alternator Model | Dimension | Weight |
| Prime | Standby | Open Type | Sound Proof | Open Type | Sound Proof |
| TSJ1250G | 10 TOP Power PS SANTUM Series Gas Generating Set00/1250 | 1100/1375 | AD12V190ZLT2 | IFC6 SERIES | 4733×2040×2778 | | 16500 | |
| TSJ500G | 400/500 | 440/550 | 12V190DT-2 | IFC5 456-6TA42 | 5120×2040×2195 | | 11800 | |
| TSJ625G | 500/625 | 550/688 | 12V190ZDT-2 | IFC6 456-6TA42 | 4733×2040×2778 | | 12000 | |
| TSJ875G | 700/875 | 770/963 | G12V190ZLDT | IFC6 SERIES | 5240×2040×2500 | | 11800 | |
Our company is a national first-class enterprise, have 3 million square meters of buildings, quality assurance, through IS9001-2002, with modern technology level.
