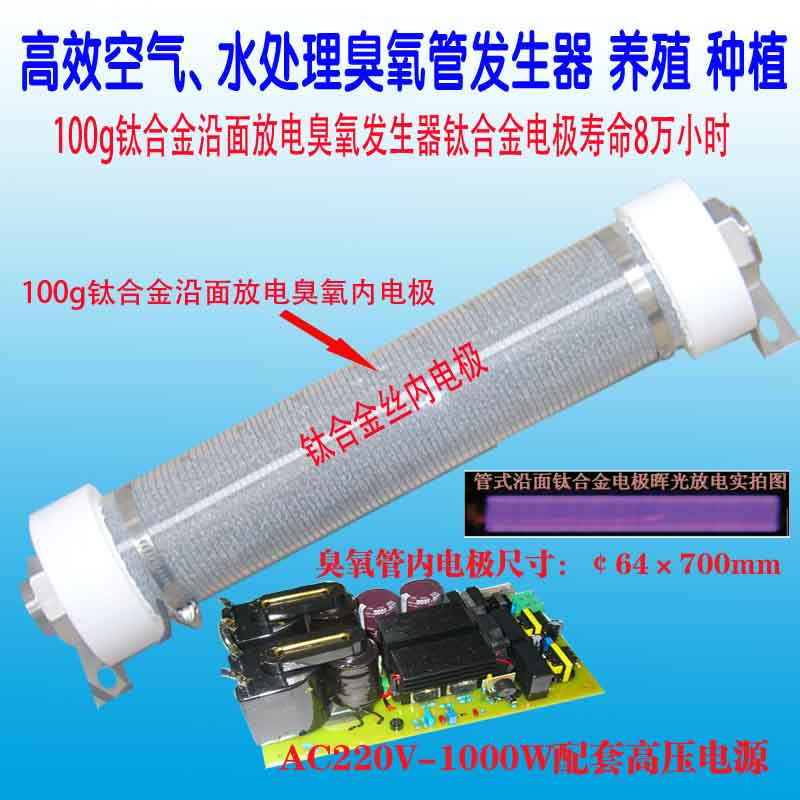

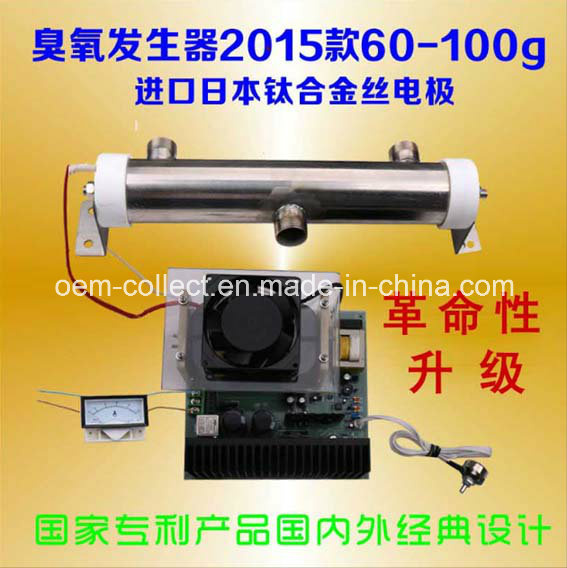

Titanium Alloy Tube Ozone Generator (SY-G100g)

Ozone Generator of
A novel tubular Titanium alloy surface discharging
Installation Instructions

2015 new style 20-100g Titanium alloy surface discharge ozone generator generator, high-purity quartz glass electrode band quality. Excellent electrical insulation properties; Its softening temperature of about 1730 ° C. 1180 ° C for long time use, short-time maximum temperature up to 1450 ° C, at normal room temperature, its resistance is equivalent to ordinary glass of 100 times, on all frequencies the dielectric loss is very small, high insulation voltage strength. Quartz glass is an excellent insulation material, electrode 0.36 titanium alloy wire for precision winding is made. Limit of age 13 hours. Crust is made of 304 stainless steel and PTFE finish. Negative temperature coefficient of power IGBT tube ozone power, special soft-start and soft-shutdown, concentration, frequency-adjustable, over-current, over-voltage, overheat protection. Power supply high efficiency, ozone concentration, extremely long service life. Not afraid of open circuit, short circuit, the power supply fault shutdown, fault alarm.
Product features:
1, Utility pipe along the side of titanium alloy discharge electrode patent products, titanium alloy electrodes, extending the life of discharge electrode, the company promises ozone guarantee for three years.
2, Start ozone generator access small-bore genre. From the 5mm hole to 50mm hole, increase airflow and reduce ozone tube working temperature. Increase ozone production.
3, Scope of application, the expansion of tubular ozone generator. Change of air sterilization using ozone, glass metal mesh tube life disadvantages. Are animal breeding, greenhouse cultivation, cold storage, food processing plants, food, dairy product processing, central air conditioning duct air sterilization, such as air purification product of choice.
Areas of application
1, Pharmaceutical, food, entertainment, Office systems, cold storage, food processing plants, food, dairy product processing equipment sterilization. Central air conditioner room air disinfection and sterilization.
2, Potable water, wastewater treatment, aquaculture, livestock water, swimming pools, bath water, mineral water, pharmaceuticals, food manufacturing, germicidal purifying water.
3, New renovated rooms contain high levels of formaldehyde, toluene and other harmful residues of paint, hazardous to people, light dizziness, headache, severe poisoning, most effective removal of ozone after new House decoration hazardous paint residue such as formaldehyde, toluene, removing cigarette smoke or other odors in the room.
Technical parameters:
Power supply: AC220V; Power: 900W; Ozone output: 100G/H;
Ozone tube size: ¢ 105 × 800mm; Power supply dimensions: Length 230x Width 130x High 110mm;
Installation instructions:

First, Titanium alloy surface discharge ozone generator: Horizontally, not Vertical installation, because it is a titanium alloy wire around the system, 20g-100g



Ozone tube structure around the same.
See figure (a) 20g--100g Wiring.
Note: The electrodes within the high voltage cable with a cylinder head, an ozone generator in the heart.

Pump figure II)

Note:

1, Air pump and the ozone generator connection, without leakage, it emerges in no Blocked! ! !

2, Installation, no foreign objects or metal body off into the ozone tube to prevent damage Ozone generator electrode.
