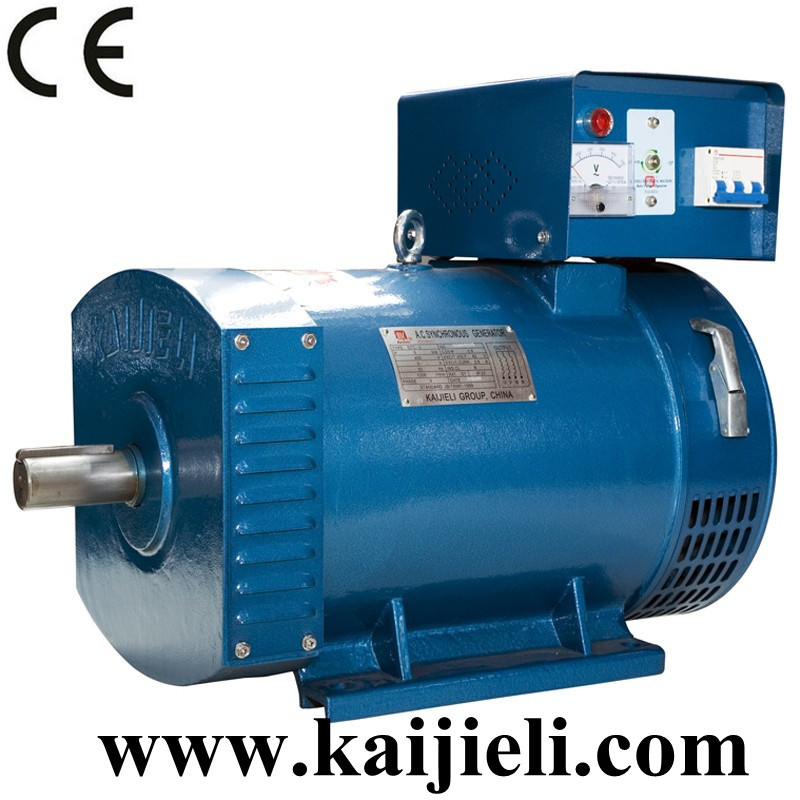

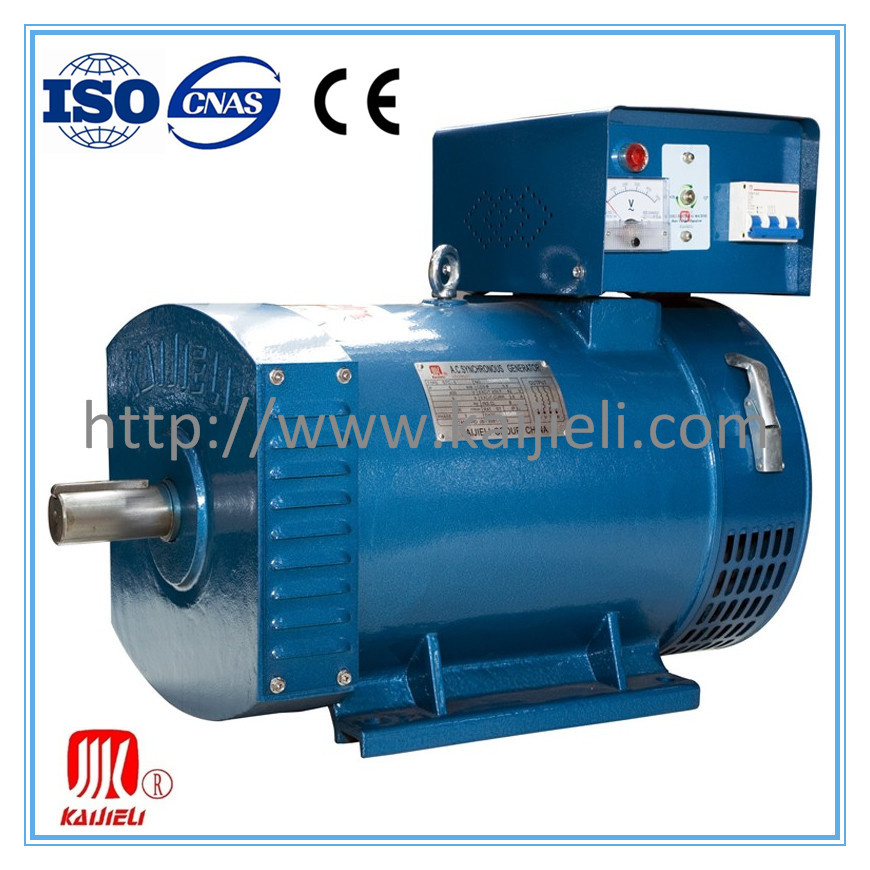

STC series Three-phase AC synchronous alternator
Used in town, countryside, worksites villages etc, as lighting as well as to be reserved emergency power source.
Three-phase, four wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz, power factor 0.8 lag. We can provide 60Hz and the other voltage's value according to the customers request.
The alternators are made as per standard JB/T8981-1999, as well as in conformity to IEC34-1.
With brush, rotary field, harmonic excitation, IP21, Class B, Power Factor COS0.8, Chinese bearings,
Output range from 3kW to 50kW
| MODEL | OUTPUT | Voltage(V) | Current(A) | Power factor | Speed(r/min) | Freq. (Hz) | Pole No. |
| Type | KVA | KW |
| STC-3 | 3.8 | 3 | 400/230 | 5.4 | 0.8 | 1500 | 50 | 4 |
| STC-5 | 6.3 | 5 | 9 |
| STC-7.5 | 9.4 | 7.5 | 13.5 |
| STC-8 | 10 | 8 | 14.4 |
| STC-10 | 12.5 | 10 | 18.1 |
| STC-12 | 15 | 12 | 21.7 |
| STC-15 | 18.8 | 15 | 27.1 |
| STC-20 | 25 | 20 | 36.1 |
| STC-24 | 30 | 24 | 43.3 |
| STC-30 | 37.5 | 30 | 54.1 |
| STC-40 | 50 | 40 | 72.2 |
| STC-50 | 62.5 | 50 | 90.2 |
| ENVIRONMENT CONDITIONS |
| Under the following environment, the generator could running continuously: |
| Altitude: | not exceed 1000m |
| Cooling air temperature: | -15º C~40º C |
| Relative air humidity: | not exceed 90% |
